5.2.8.6 Right click on the output bus of the simple counter that you just created and select
“Properties”.
Set the name of the bus to: counter[31..0]

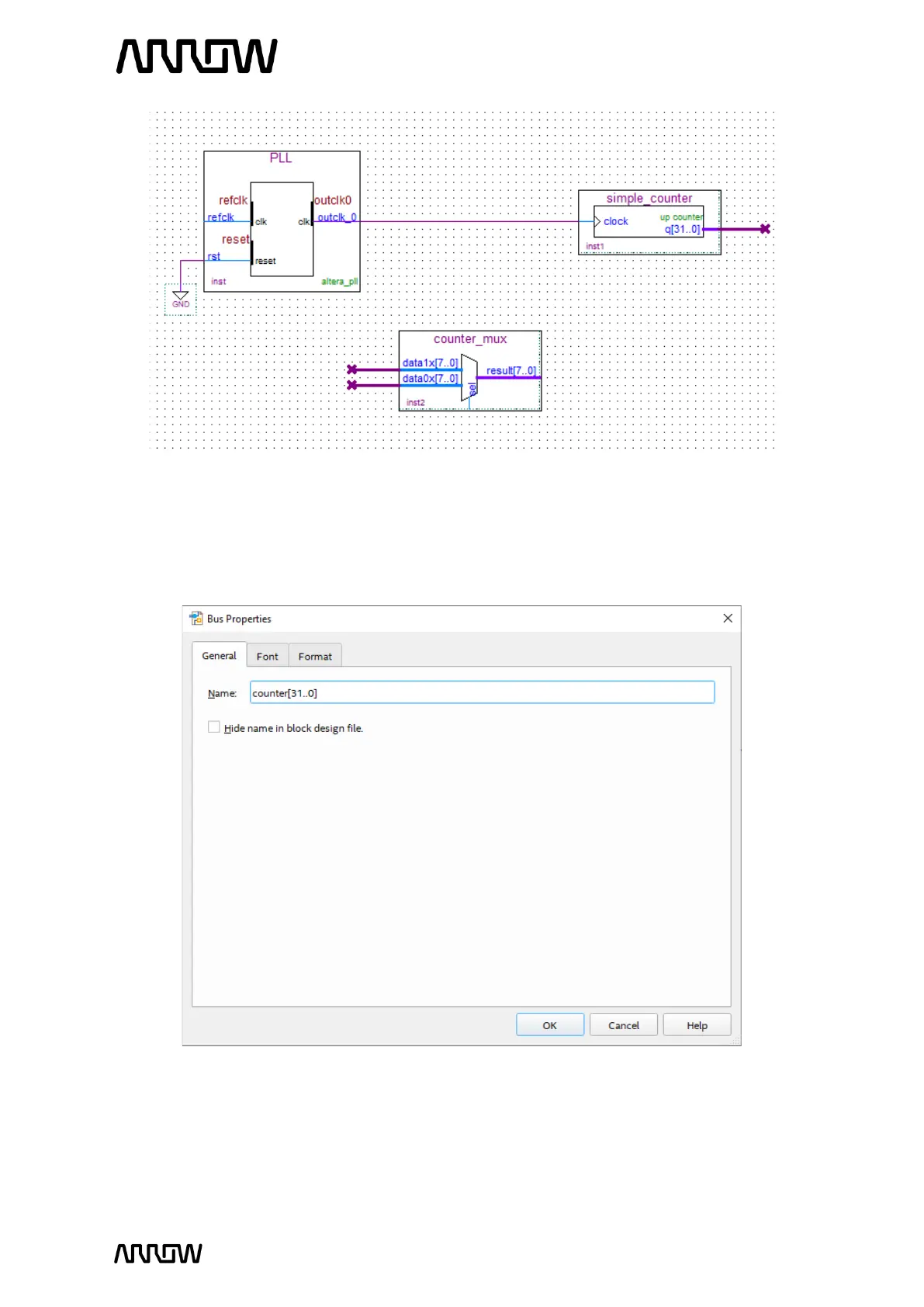

The view of the “Bus Properties” should look like this:
5.2.8.7 Click “OK”.
5.2.8.8 Do the same for input buses of the mux:
Name the top bus input: data1x[7..0] → counter[24..31]
