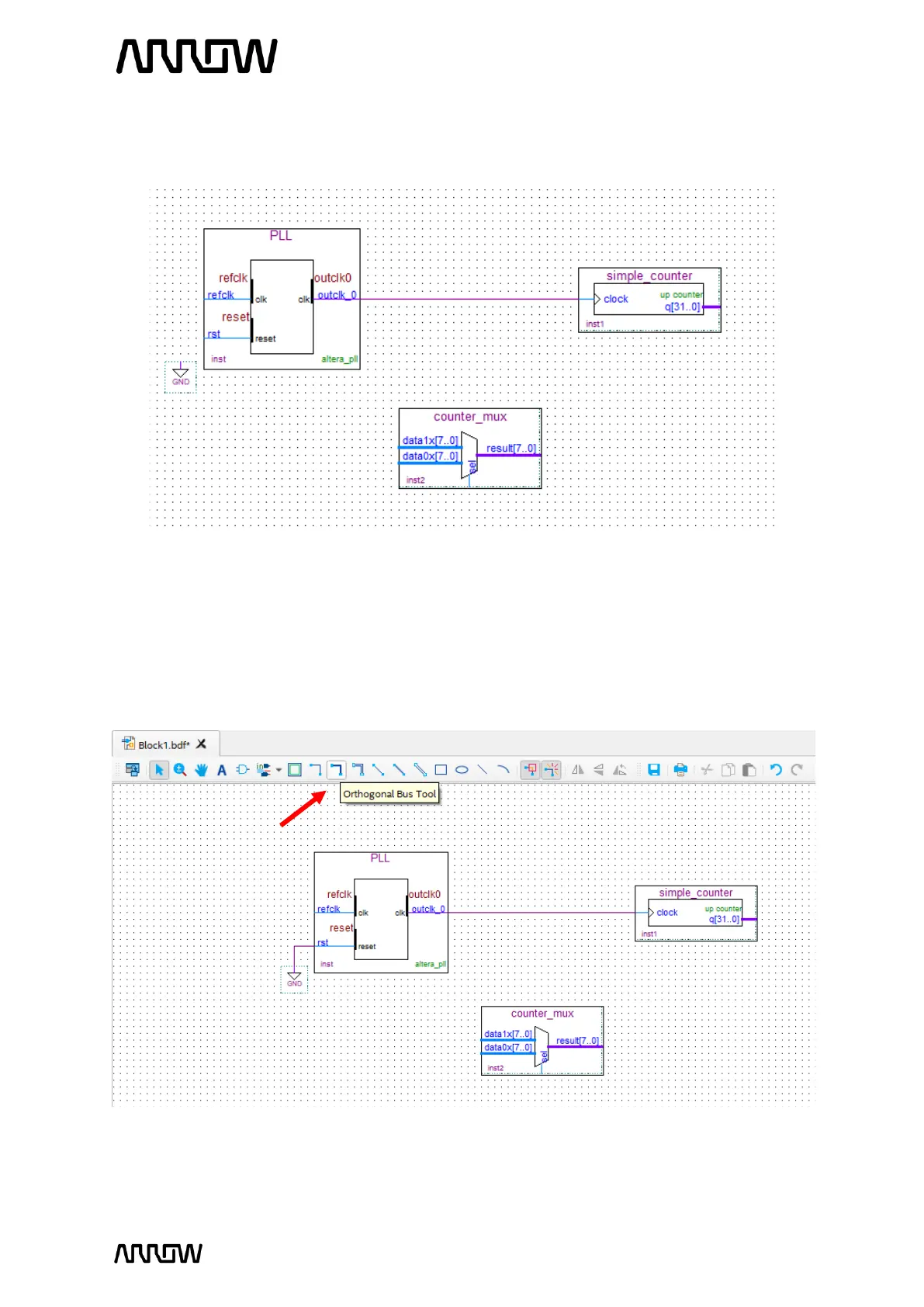

5.2.8.2 Connect the outclk0 of the PLL to the clock input of the simple_counter as shown
below:
This will mean that a single signal (c0) is connected to the simple_counter (clock).
5.2.8.3 Repeat the 5.2.8.1 step and connect the reset of PLL to the GND.
5.2.8.4 Select the “Bus Tool”.
5.2.8.5 Using the bus tool create a connection coming out of the simple_counter and one
connection for each of the inputs of the counter_mux as show below.
