Description of the Ascom i63 VoWiFi Handset
USER MANUAL
Ascom i63 VoWiFi Handset
2.4 Icons and Text in the Display
All functions and settings available to the user are shown as icons and text in the display. The icons and text
in the display indicate functions and settings to which you have access. The display normally displays date
and time, the Owner ID and handset number. The Owner ID can manually be set by the user.

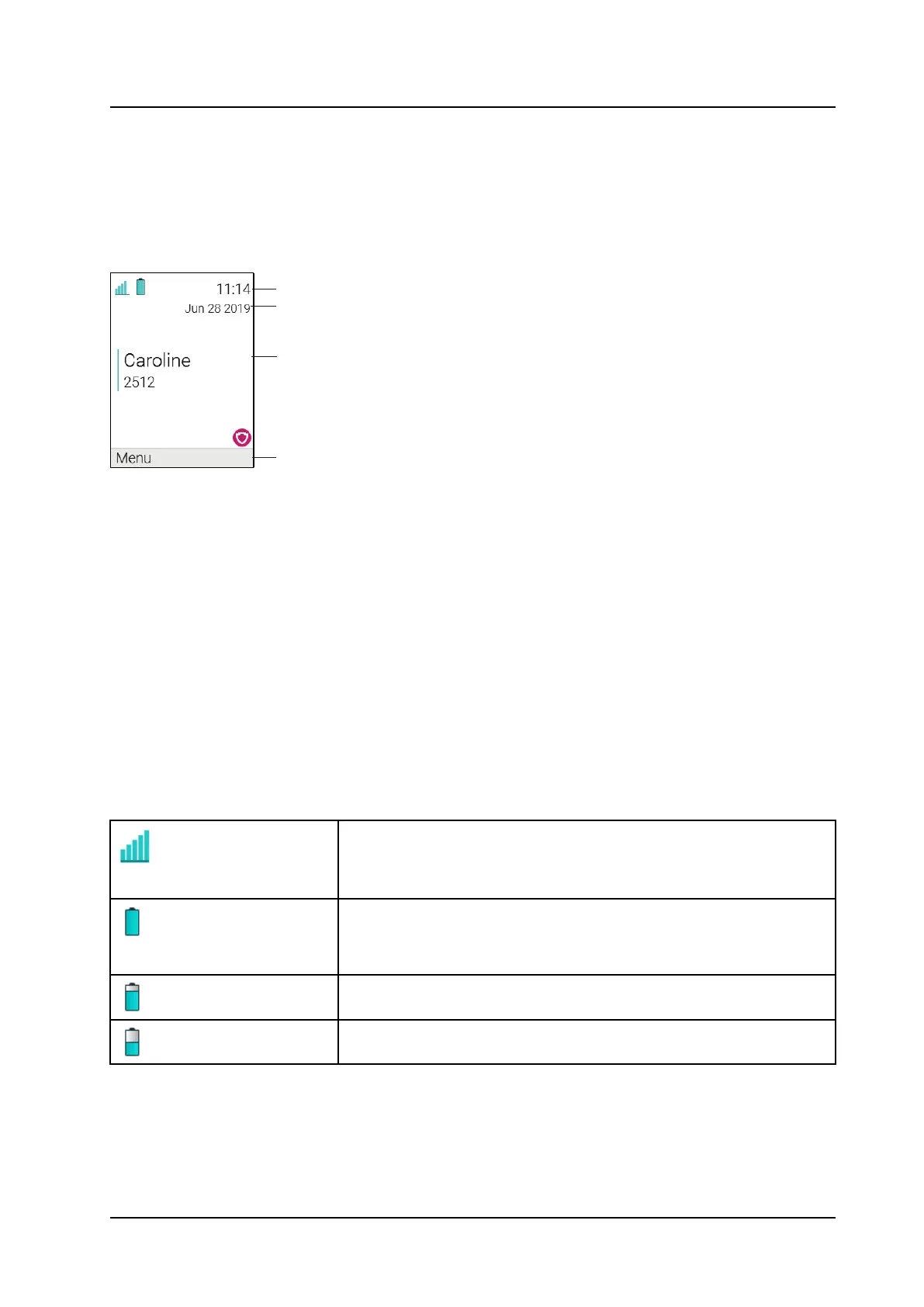

Figure 3. Example of a Display Configuration in Idle Mode
Status bar
Header bar
Active area
Soft key bar
The top row (Status bar) is used for icons which give the user information about signal strength, missed call,
new message, sound off, time and battery status. This row is always visible in all screens.
The next row (Header bar) displays the current date, phone lock, key lock, headset connection, Bluetooth
connection, and PDM sync.
The next rows (Active area) are used for information such as the name of the system to which the handset is
connected to. A user identity provided from the system and/or an Owner ID can also be displayed if
configured in the Settings menu. This is also the area for dialog window text, for example Missed calls or
to confirm an action.
The bottom row (Soft key bar) is used for soft keys which can be used as shortcuts for functions in the
handset. See 2.2 Soft Keys, page 8.
The Scroll bar is placed to the right of the Active area. It becomes visible when a menu screen has more
than six menus, or if the complete text in a message cannot be displayed on the screen simultaneously.
Icons
Signal strength
Visible in the upper left corner. The staples shown in display depends
on the signal strength.
Full battery
The icon for the remaining battery capacity is visible in the upper left
corner.
High battery level
Medium battery level
