ASCOM NUPBC User Manual

P/N PM000223A • Rev. 1 • ISS 9 August 2017 50
Installation Manual
NU-Series Hardware
IP Devices
4. Connect the Ethernet cable from the corridor display to the Ethernet outlet.
Mounting Double Displays on a Bracket
Mount two single-sided corridor displays (back to back) onto the wall mounting bracket
using the cross-mount plate to create a double-sided display. Use the mounting
accessories for a double display that are included with the wall mounting bracket. When
mounting two displays, you must use two PoE cables to address each display.

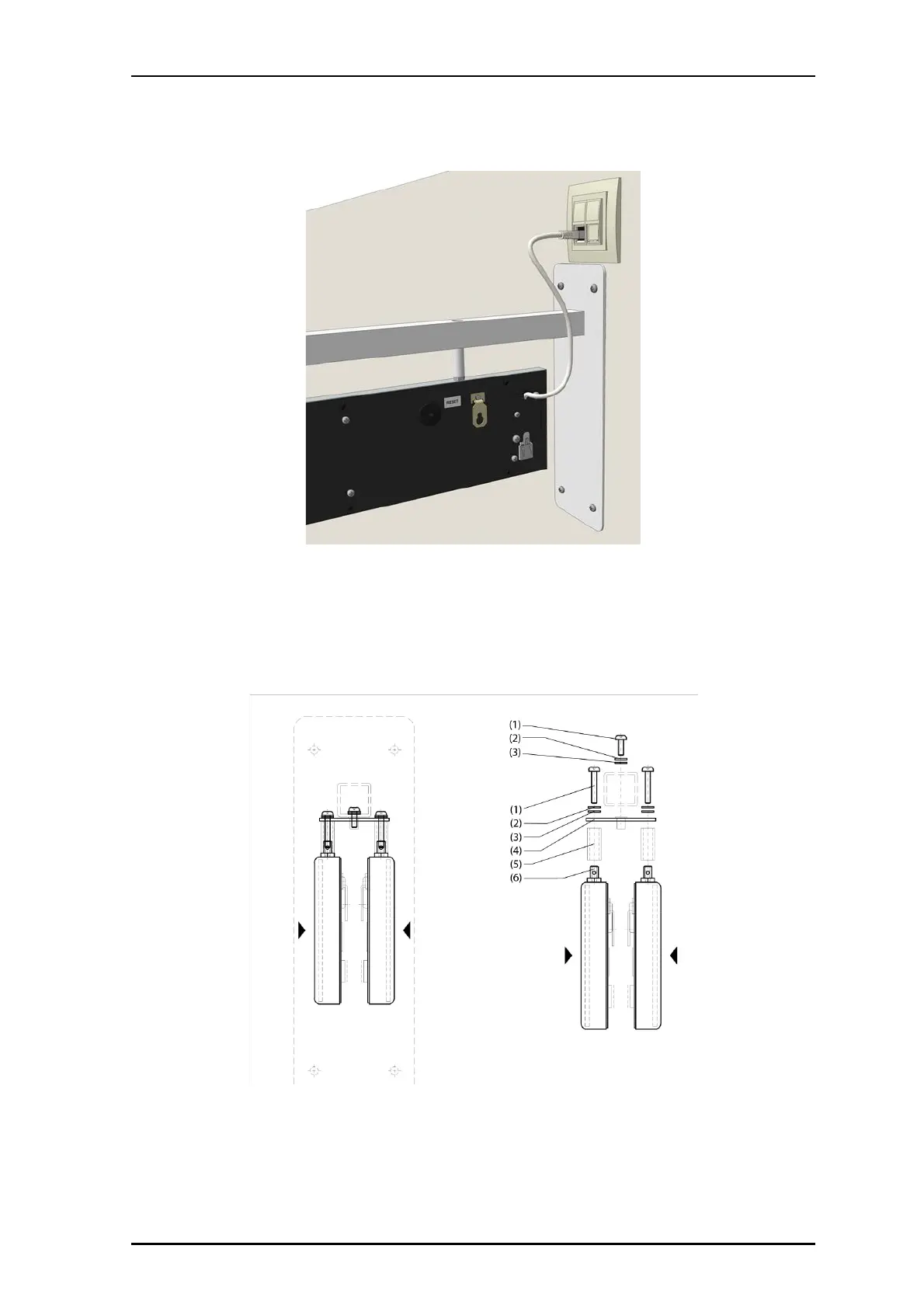

Figure 41 Wall mounting bracket - double display
Legend:
(1) M4x12 Bolt (4) Cross mount
(2) Serrated washer (5) Tube stem
(3) Plain washer (6) Display fastener
