Installation

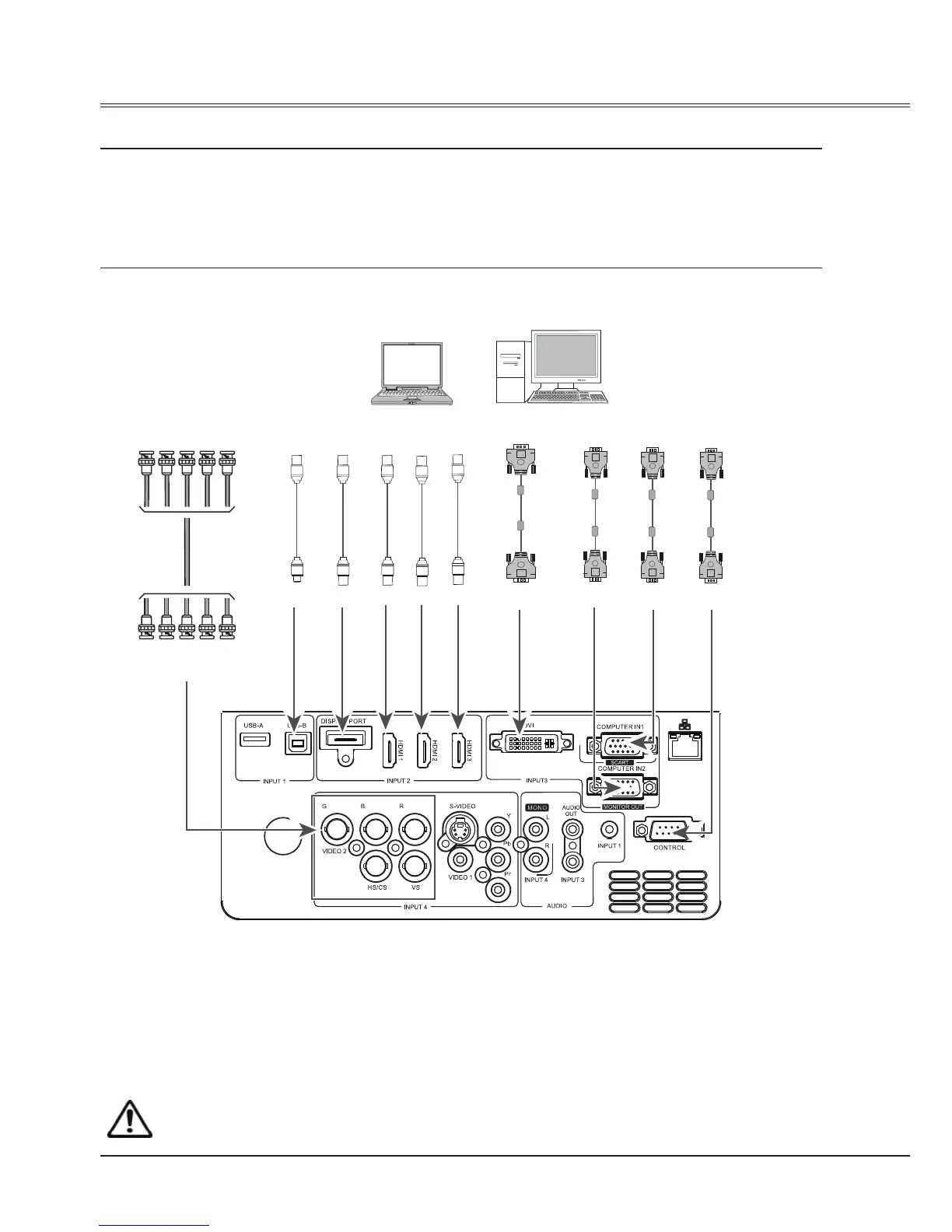

Connecting to computer(Digital and analog RGB)
Cables used for connection:
● VGA cable ● Serial crossover cable*
● DVI cable* ● USB-B cable*
● HDMI cable* ● BNC cable*
(*=Cables not supplied with the projector)
Unplug the power cords of both the projector and external equipment
from the AC outlet before connecting the cables.
Serial output
Monitor output
Monitor input PC input
USB-B port
G B R H
V
HDMI outputDP output
DP port Control port
USB-B
cable
BNC
cable
HDMI
cable
HDMI
cable
HDMI
cable
DP
cable
USB-B input
VGA
cable
DVI-D
cable
VGA
cable
Serial
crossover
cable
Analog input
Digital input
HDMI
HDMI
HDMI
Monitor output
