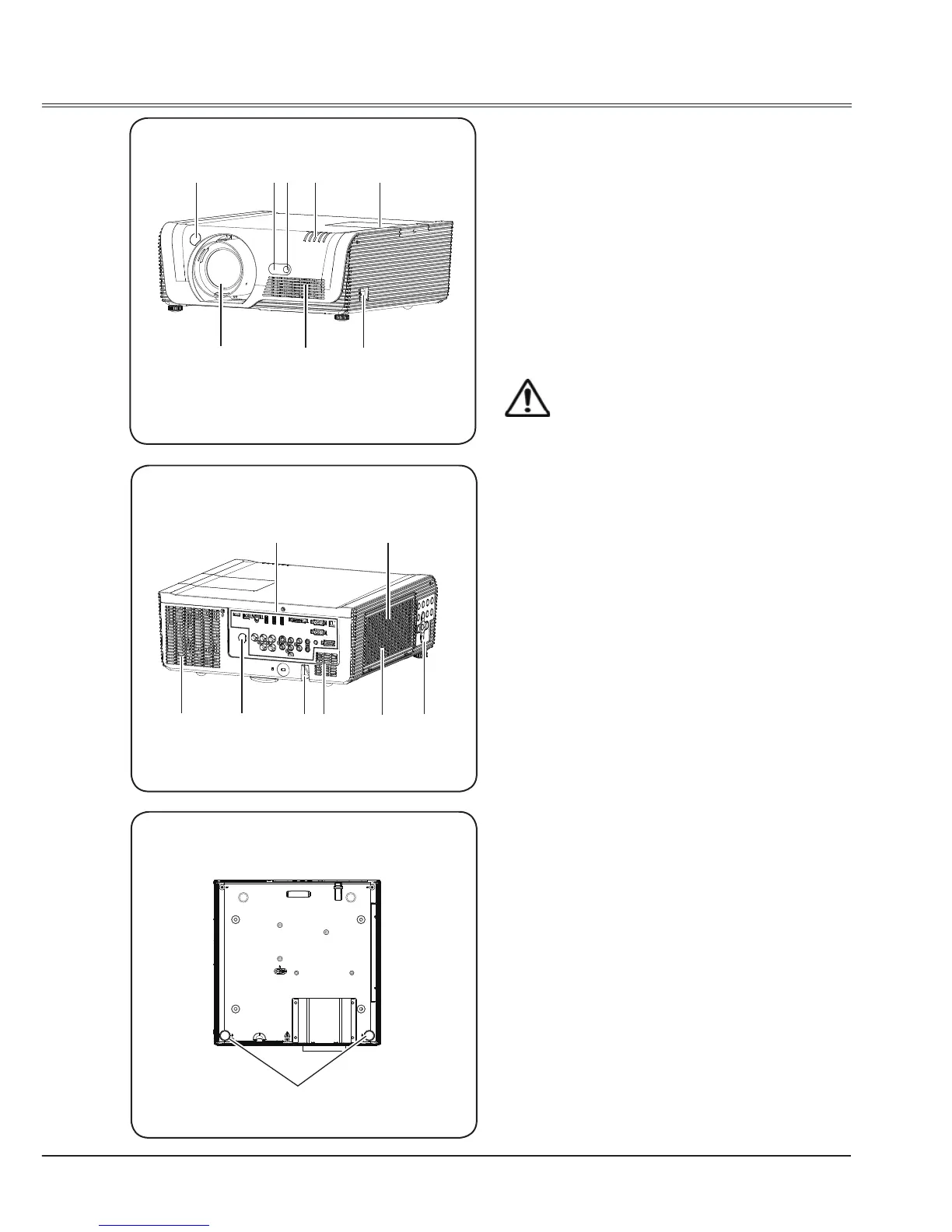

Front
Back
Bottom
Part names and functions
Caution
Hot air is exhausted from the exhaust vent. Do
not put heat-sensitive objects near this side.
①
Lens replace release button
②
Remote control receiver(front)
③
Focus window*
④
Indicators
⑤
Lamp cover
⑥
Project lens
⑦
Air intake vent
⑧
AC power cord connector
⑨
Exhaust vent
* Some model has no focus window.
⑩
Remote control receiver(back)
⑪
Terminals
⑫
Anti-theft slot
⑬
Speaker
⑭
Filter cover
⑮
Side control panel
⑯
Adjustable feet
⑯
⑨
⑬⑫
⑭
⑮
⑥
① ②③
④ ⑤
⑦⑪
⑦
⑧
⑩
