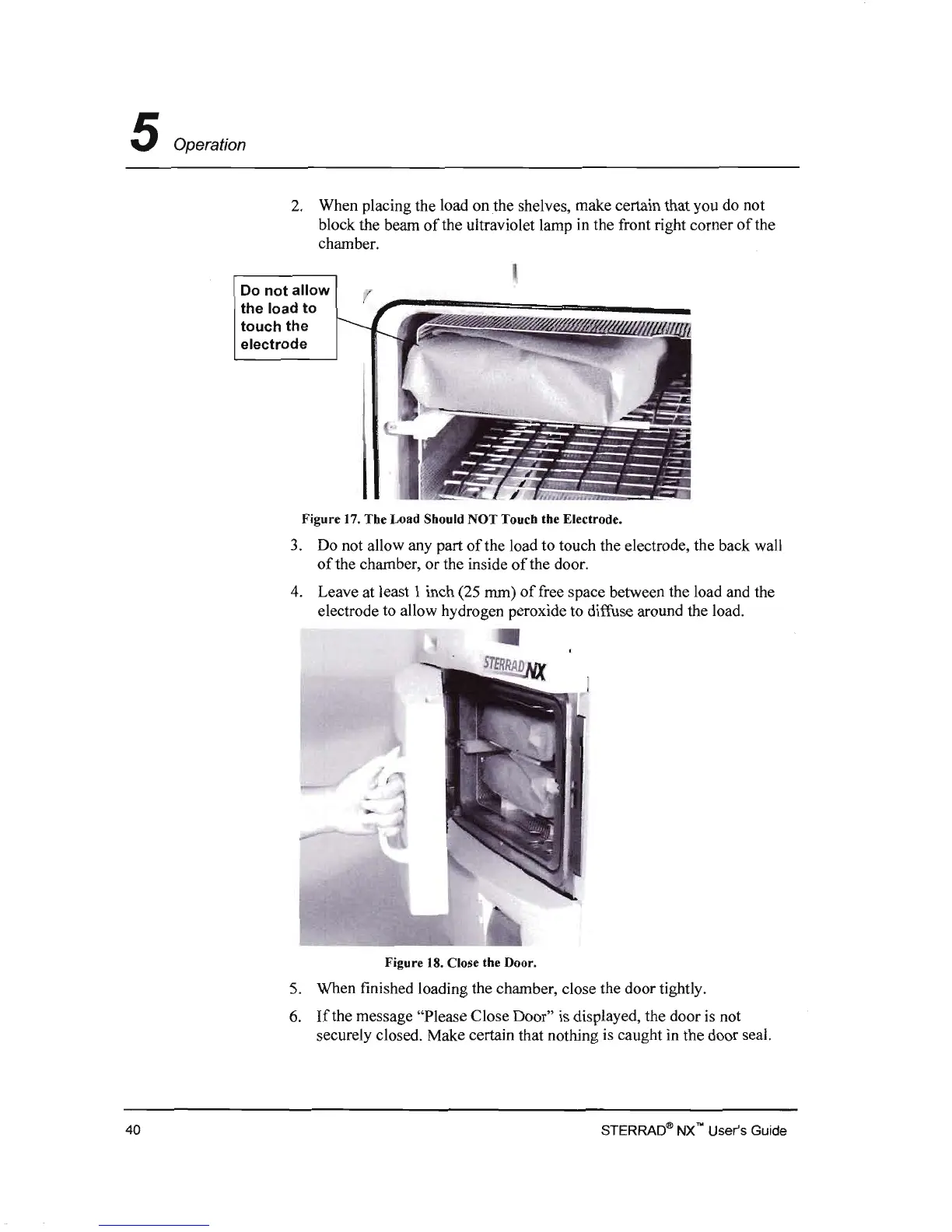

5 Operation
2.
When placing the load on the shelves, make certain that you do not
block the beam
of
the ultraviolet lamp
in
the front right comer
of
the
chamber.
Do
not
allow
the
load
to
touch
the
electrode
Figure 17. The Load Should NOT Touch the Electrode.
3.
Do not allow any part
of
the load to touch the electrode, the back wall
of
the chamber, or the inside
ofthe
door.
4.
Leave at least 1 inch (25 mm)
of
free space between the load and the
electrode to allow hydrogen peroxide to diffuse around the load.
Figure 18. Close the Door.
5.
When finished loading the chamber, close the door tightly.
6.
If
the message "Please Close Door"
is
displayed, the door
is
not
securely closed. Make certain that nothing is caught
in
the door seal.
STERRAO<l!l
NX
no
User's Guide
40
