Maintenance 8

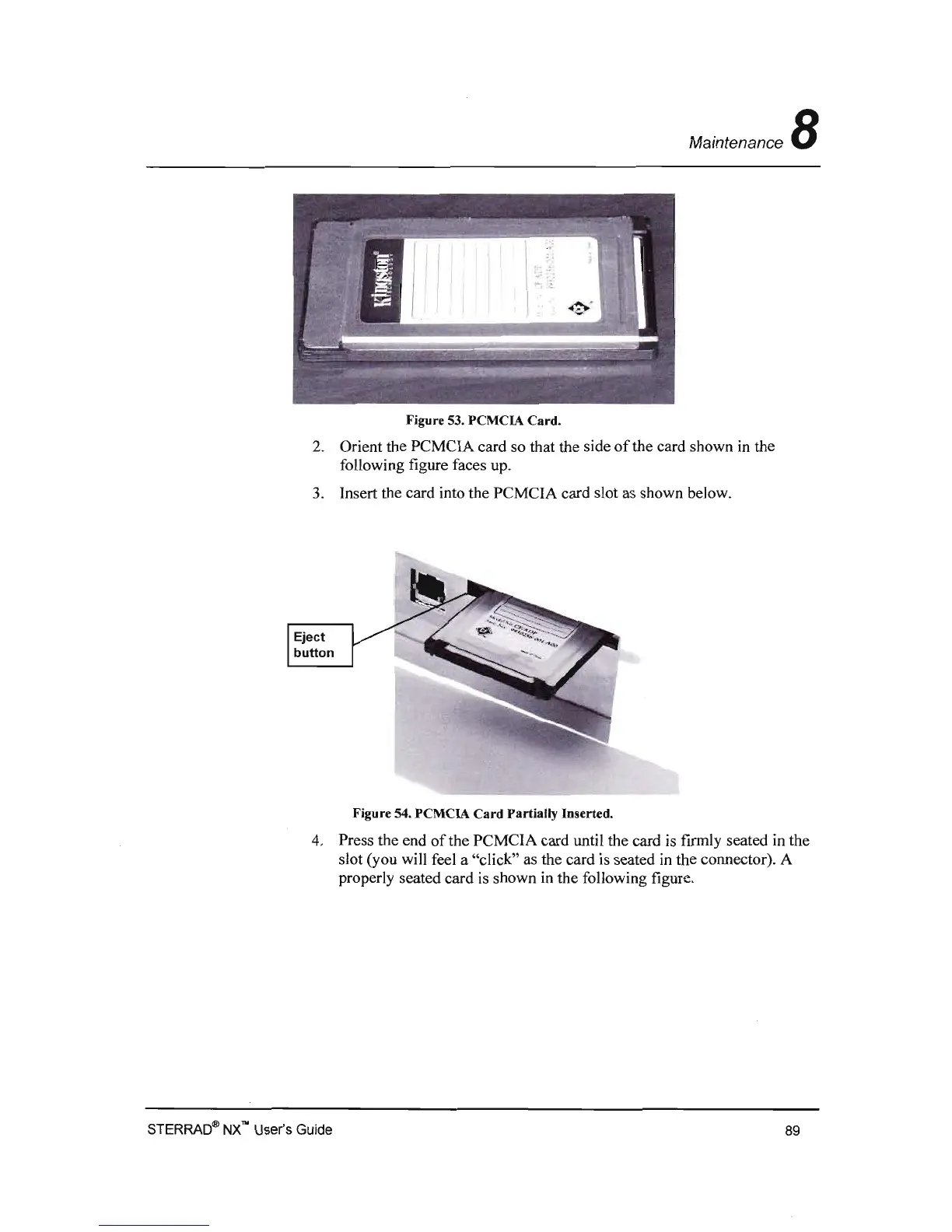

Figure 53. PCMCIA Card.
2. Orient the PCMCIA card so that the side of the card shown in the
following figure faces up.
3. Insert the card into the PCMCIA card slot as shown below.
Figure 54. PCMCIA Card Partially Inserted.
4. Press the end of the PCMCIA card until the card is fJ11Tlly seated in the
slot (you will feel a "click" as the card
is seated in the connector). A
properly seated card
is shown in the following figure.
