Fitting and installation
EN
Dimensions
*Backset C1 is variable:
C1 = 30, 35, 40 or 60 mm
*Mounting depth D1 dependent on C1:
D1 = 44,5 mm with C1 = 30 mm
D1 = 49,5 mm with C1 = 35 mm
D1 = 54,5 mm with C1 = 40 mm
D1 = 74,5 mm with C1 = 60 mm

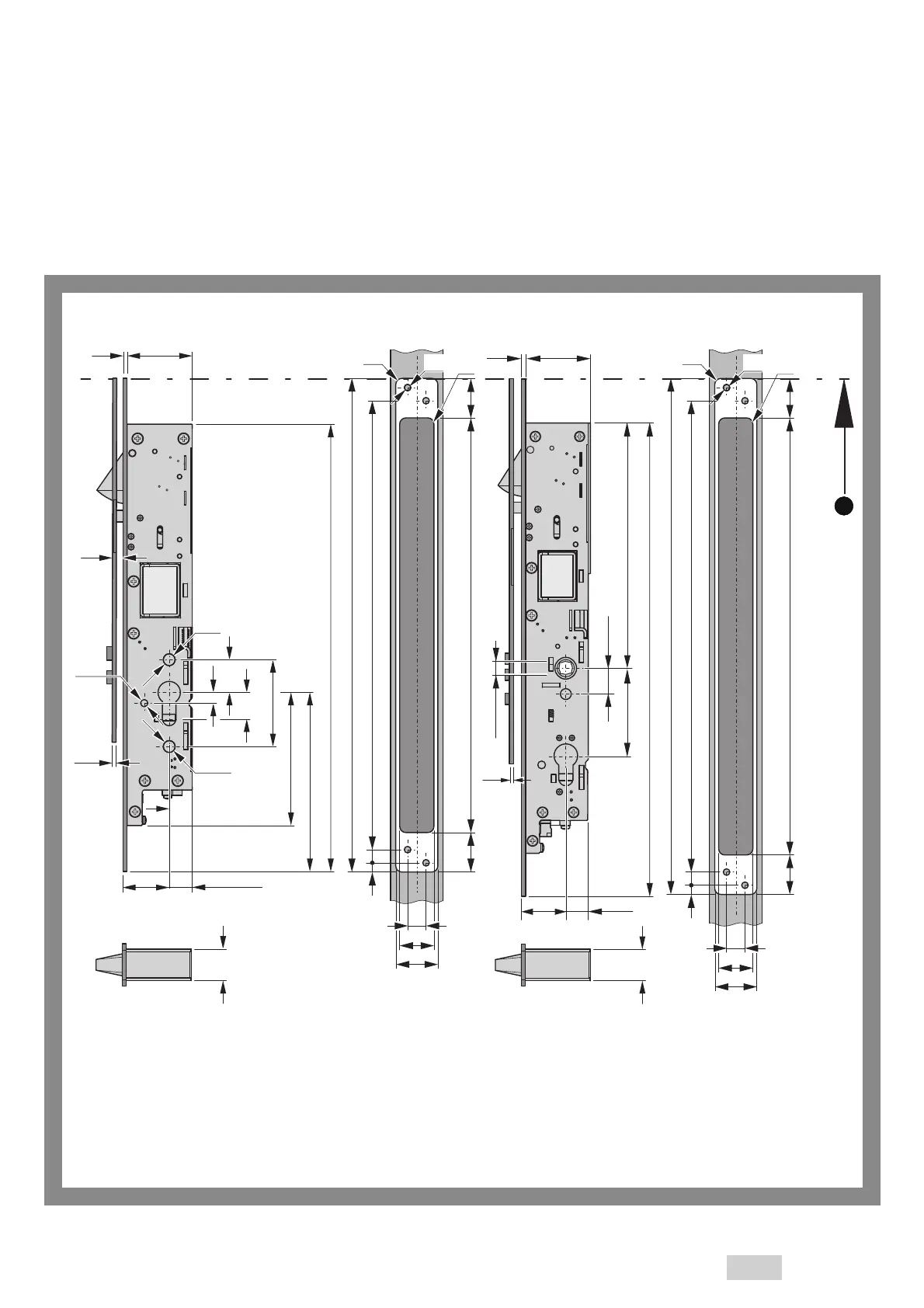

Fig. 4 : Dimensions of Technilock
®
L4
Version with follower
*Backset C2 is variable:
C2 = 35 or 60 mm
*Mounting depth D2 dependent on C2:
D2 = 49,5 mm with C2 = 35 mm
D2 = 74,5 mm with C2 = 60 mm
17,5
3
3D1*
8
Ø9
Ø9
101
66
Ø5,5
136
340
375
3417
10
315 3030
14
26
32
20
25
8
24
Ø5
R5
R5
C1*
390
72
21,5
102
24
□9 mm
3D2*
17,5
C2*
3
325
3917
10
365 3030
14
26
32
Ø5
R5
R5
1
