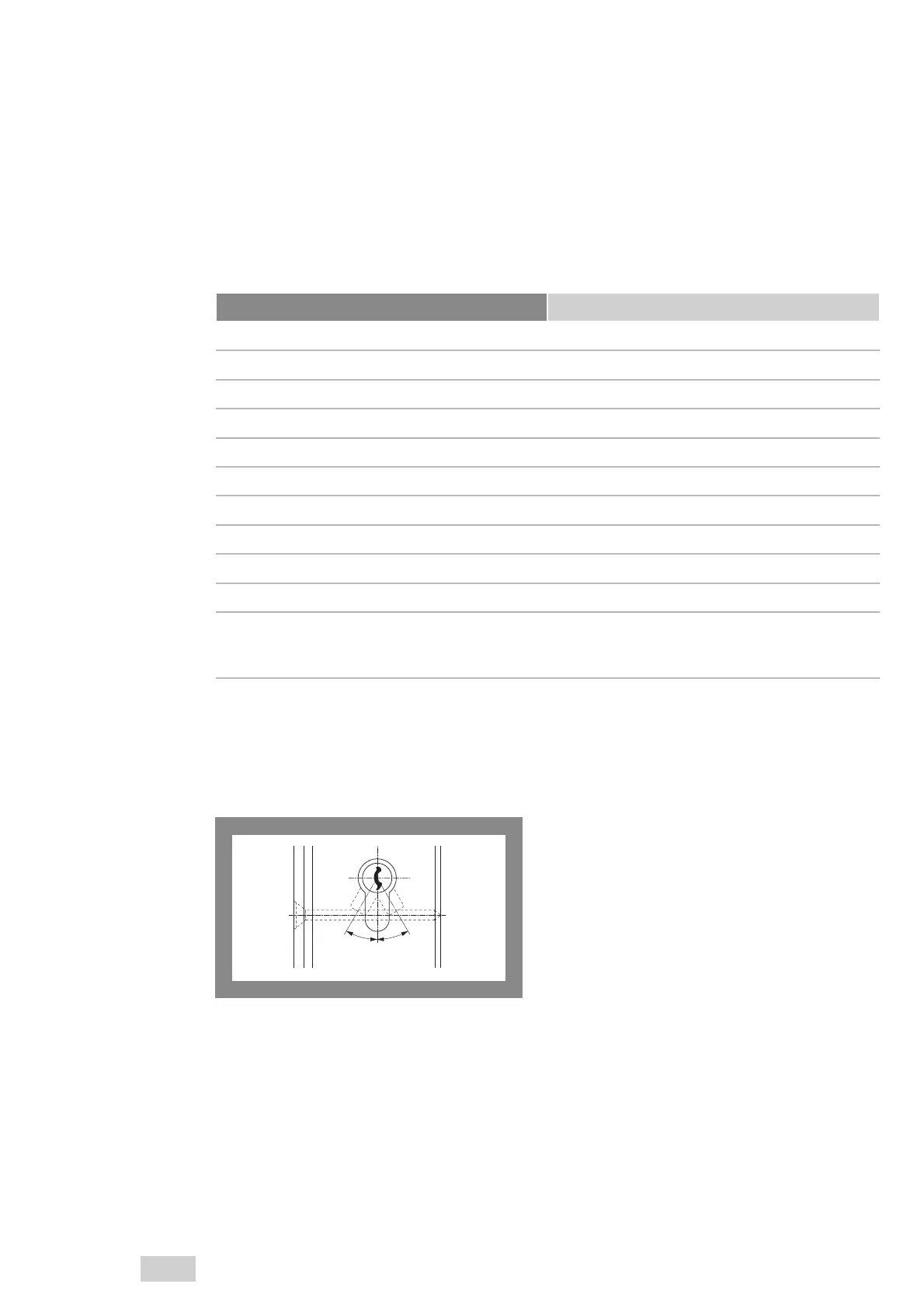

Technical data
Technical Data
Property Characteristic
Backset 30 mm, 35 mm, 40 mm or 60 mm,
Backset (Version with follower) 35 mm or 60 mm
Handle follower
(Version with follower) 9 mm
Centres distance
(Version with follower) 72 mm
Bolt throw 20 mm
Indestructible (according to DIN 18251) up to 20,000 N
maximum deadbolt load 50.000 N
Rebate gap 4,0 mm (3,5 mm to 5,5 mm)
Operating temperature –20°C – +60°C
Protection rating IP30
Circuit board Protective paint,
Plug connections and plug socket are not protec-
ted due to reasons of compatibility
Area of use
The Technilock
®
L4 is suitable for protected outdoor installation (IP30).
Lock cylinders and key withdrawal position
The length of the profile cylinder to be used arises
from the door leaf thickness and the door escutcheon
thicknesses (fittings) on the inside and outside.
The key withdrawal position (Fig. 8) of the locking
lever may not exceed 30° at the bottom on the left or
right.
Fig. 8 :
Key withdrawal position
max.
30°
max.
30°
