F. Load Address High byte
1. Set XA1, XA0 to “00”. This enables address loading.
2. Set BS1 to “1”. This selects high address.
3. Set DATA = Address high byte ($00 - $03).
4. Give XTAL1 a positive pulse. This loads the address high byte.
G. Program Page
1. Set BS1 to “0”.
2. Give WR
a negative pulse. This starts programming of the entire page of data.
RDY/BSY
goes low.
3. Wait until RDY/BSY
goes high. (See Figure 60 for signal waveforms.)
H. Repeat B through G until the entire Flash is programmed or until all data has been
programmed.
I. End Page Programming
1. Set XA1, XA0 to “10”. This enables command loading.
2. Set DATA to “0000 0000”. This is the command for No Operation.
3. Give XTAL1 a positive pulse. This loads the command, and the internal write sig-
nals are reset.

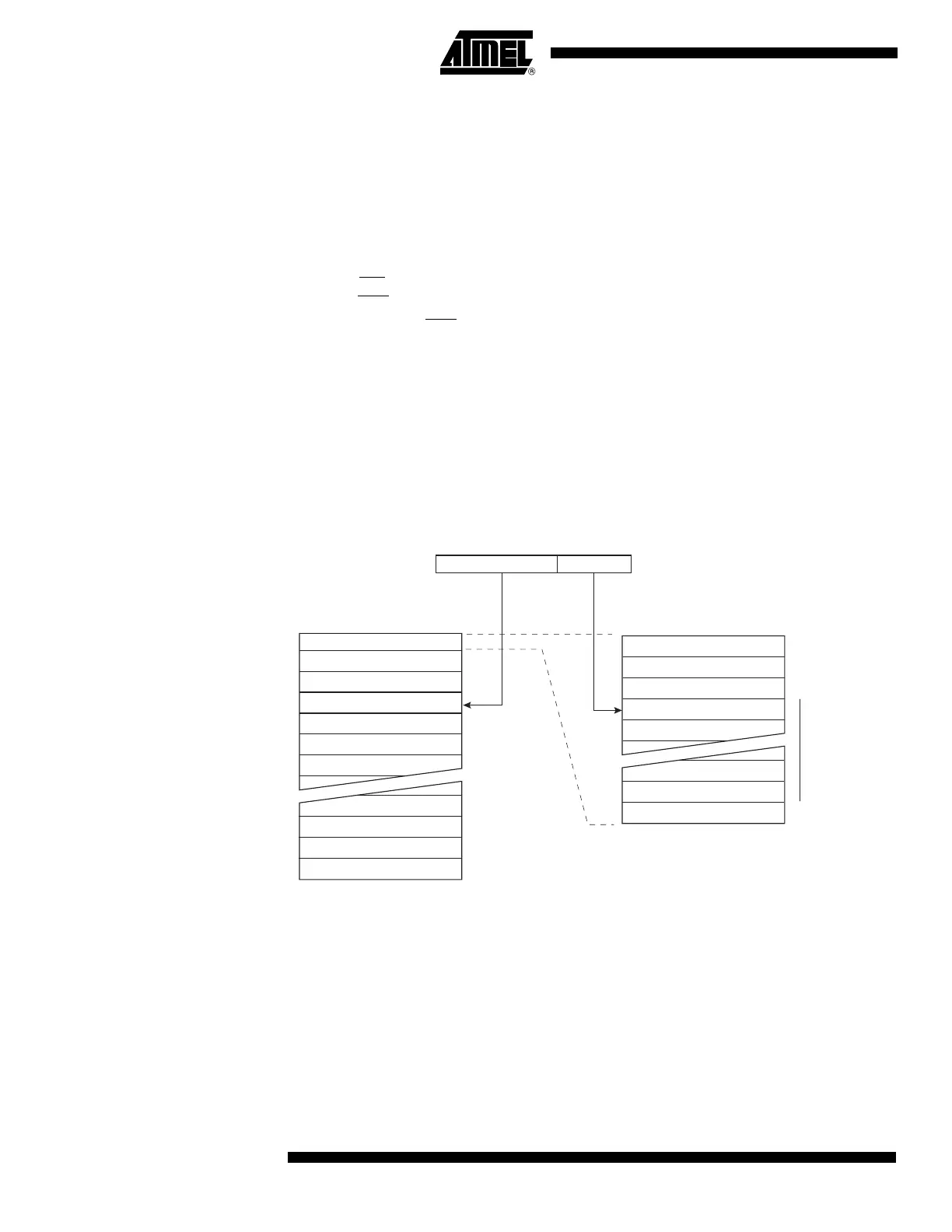

Figure 59. Addressing the Flash which is Organized in Pages
(1)
Note: 1. PCPAGE and PCWORD are listed in Table 52 on page 109.
PROGRAM MEMORY
WORD ADDRESS
WITHIN A PAGE
PAGE ADDRESS
WITHIN THE FLASH
INSTRUCTION WORD
PAG E
PCWORD[PAGEMSB:0]:
00
01
02
PAGEEND
PAG E
PCWORDPCPAGE
PCMSB
PAGEMSB
PROGRAM
COUNTER
To Next Page
