ATtiny26(L)

1477G–AVR–03/05

Indirect Program Addressing,

IJMP and ICALL

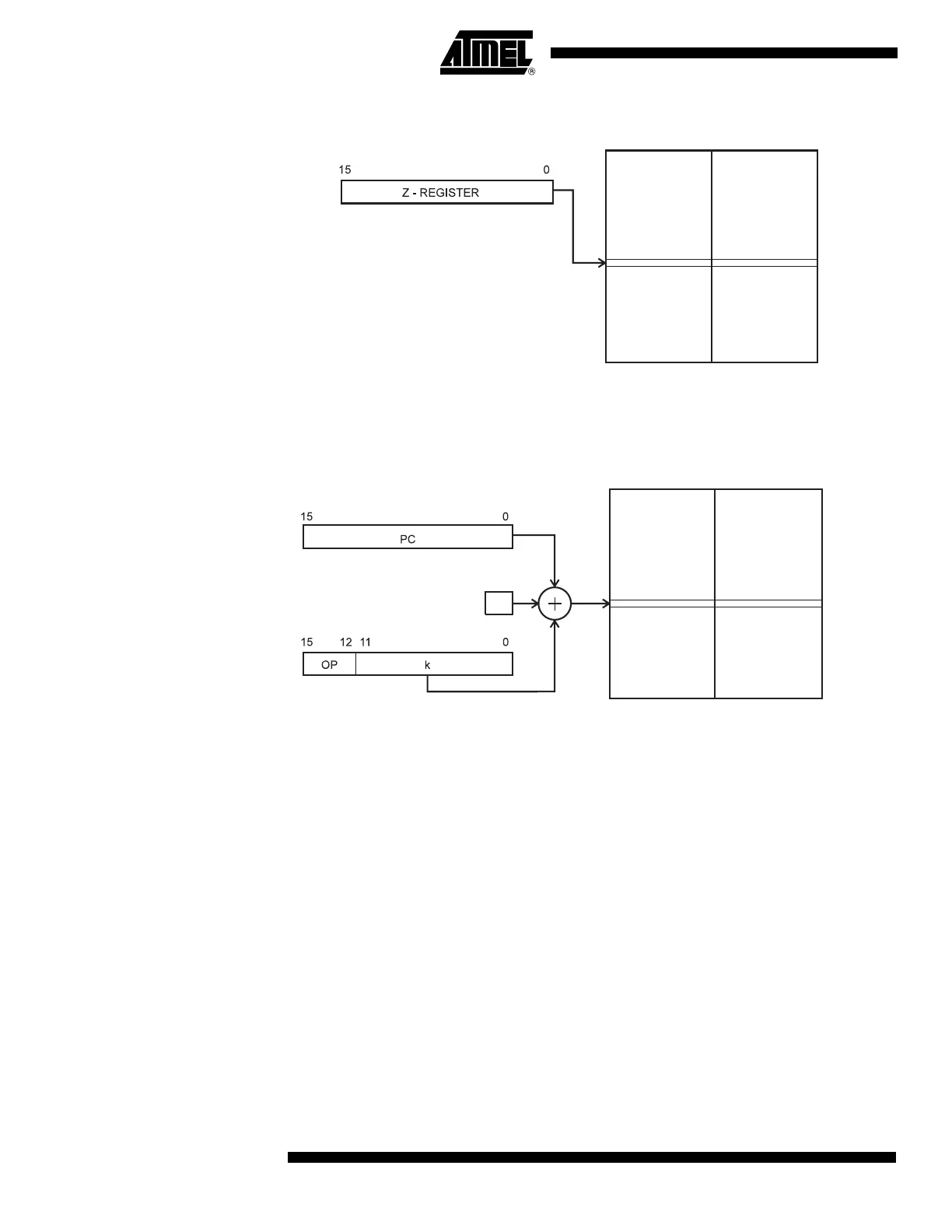

Figure 14. Indirect Program Memory Addressing

Program execution continues at address contained by the Z-register (i.e., the PC is

loaded with the contents of the Z-register).

Relative Program Addressing,

RJMP and RCALL

Figure 15. Relative Program Memory Addressing

Program execution continues at address PC + k + 1. The relative address k is from

-2048 to 2047.

$3F

$00

PROGRAM MEMORY

$3FF

$000

PROGRAM MEMORY
