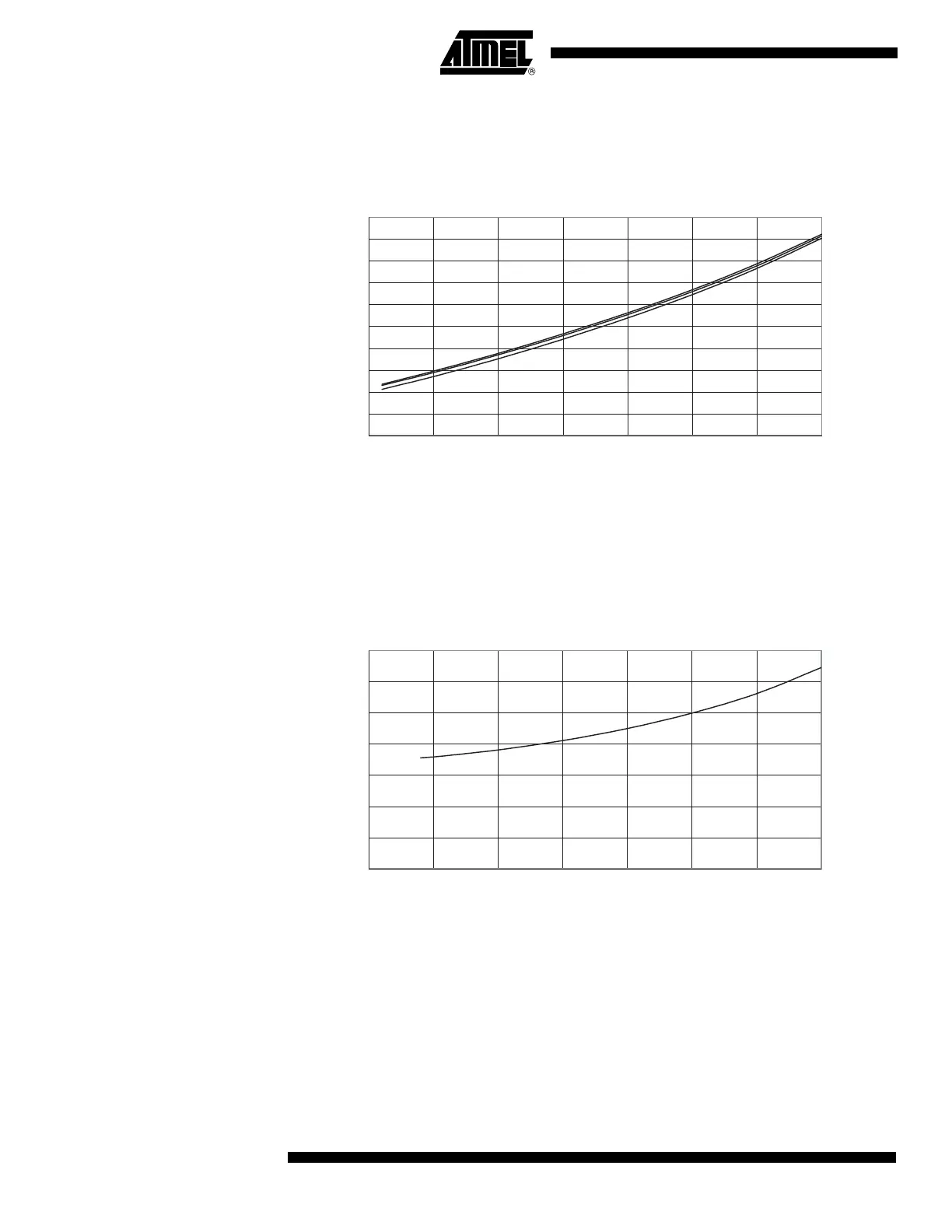

Figure 88. Power-down Supply Current vs. V
CC
(Watchdog Timer Enabled)
Standby Supply Current Figure 89. Standby Supply Current vs. V
CC
(455 kHz Resonator, Watchdog Timer
Disabled)
POWER-DOWN SUPPLY CURRENT vs. V
CC
WATCHDOG TIMER ENABLED
0
2
4
6
8
10
12
14
16
18
20
2 2.5 3 3.5 4 4.5 5 5.5
V
CC
(V)
I
CC
(uA)
85°C
25°C
-40°C
STANDBY SUPPLY CURRENT vs. V
CC
455 kHz RESONATOR, WATCHDOG TIMER DISABLED
0
10
20
30
40
50
60
70
2 2.5 3 3.5 4 4.5 5 5.5
V
CC
(V)
I
CC
(uA)
