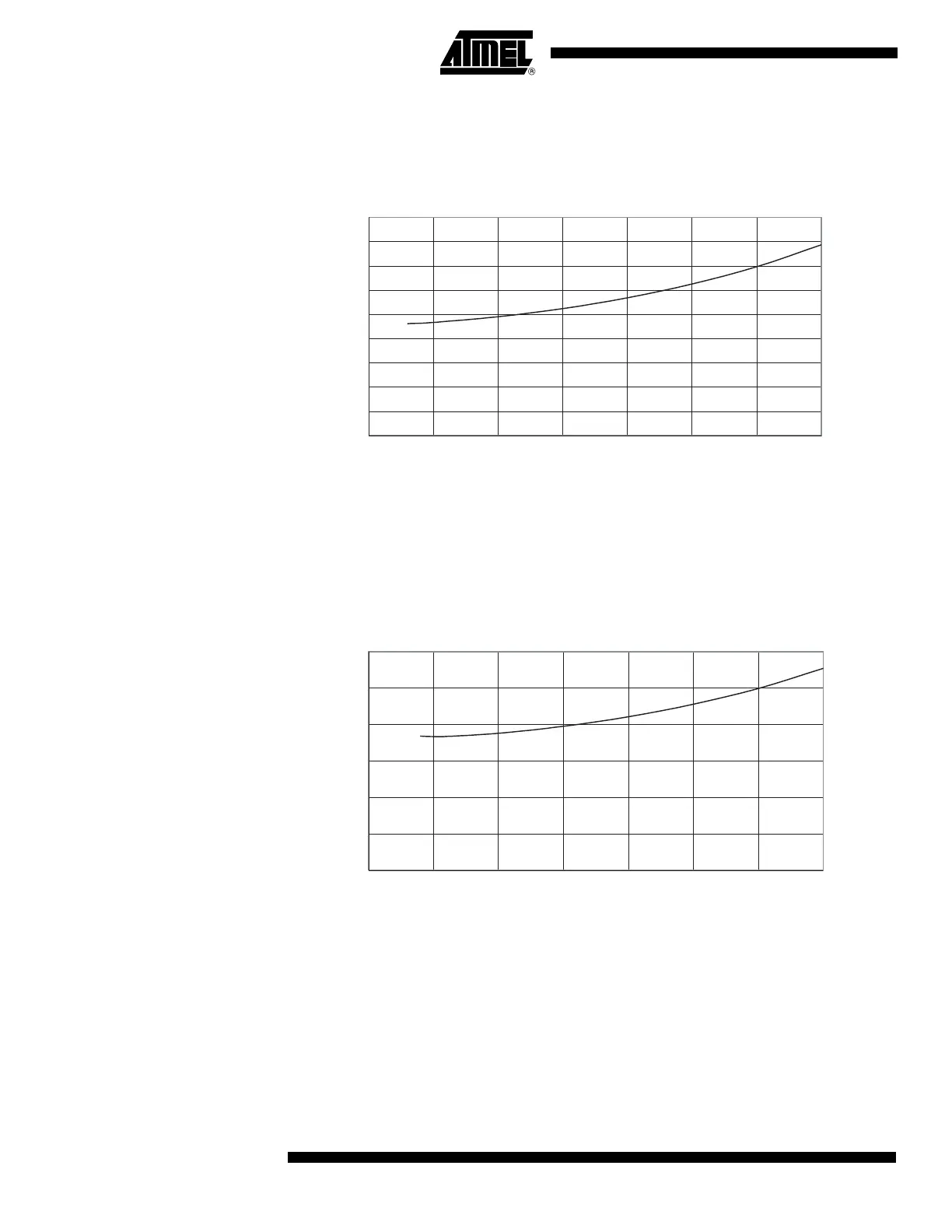

Figure 92. Standby Supply Current vs. V
CC
(2 MHz XTAL, Watchdog Timer Disabled)
Figure 93. Standby Supply Current vs. V
CC
(4 MHz Resonator, Watchdog Timer
Disabled)
STANDBY SUPPLY CURRENT vs. V
CC
2 MHz XTAL, WATCHDOG TIMER DISABLED
0
10
20
30
40
50
60
70
80
90
2 2.5 3 3.5 4 4.5 5 5.5
V
CC
(V)
I
CC
(uA)
STANDBY SUPPLY CURRENT vs. V
CC
4 MHz RESONATOR, WATCHDOG TIMER DISABLED
0
20
40
60
80
100
120
2 2.5 3 3.5 4 4.5 5 5.5
V
CC
(V)
I
CC
(uA)
