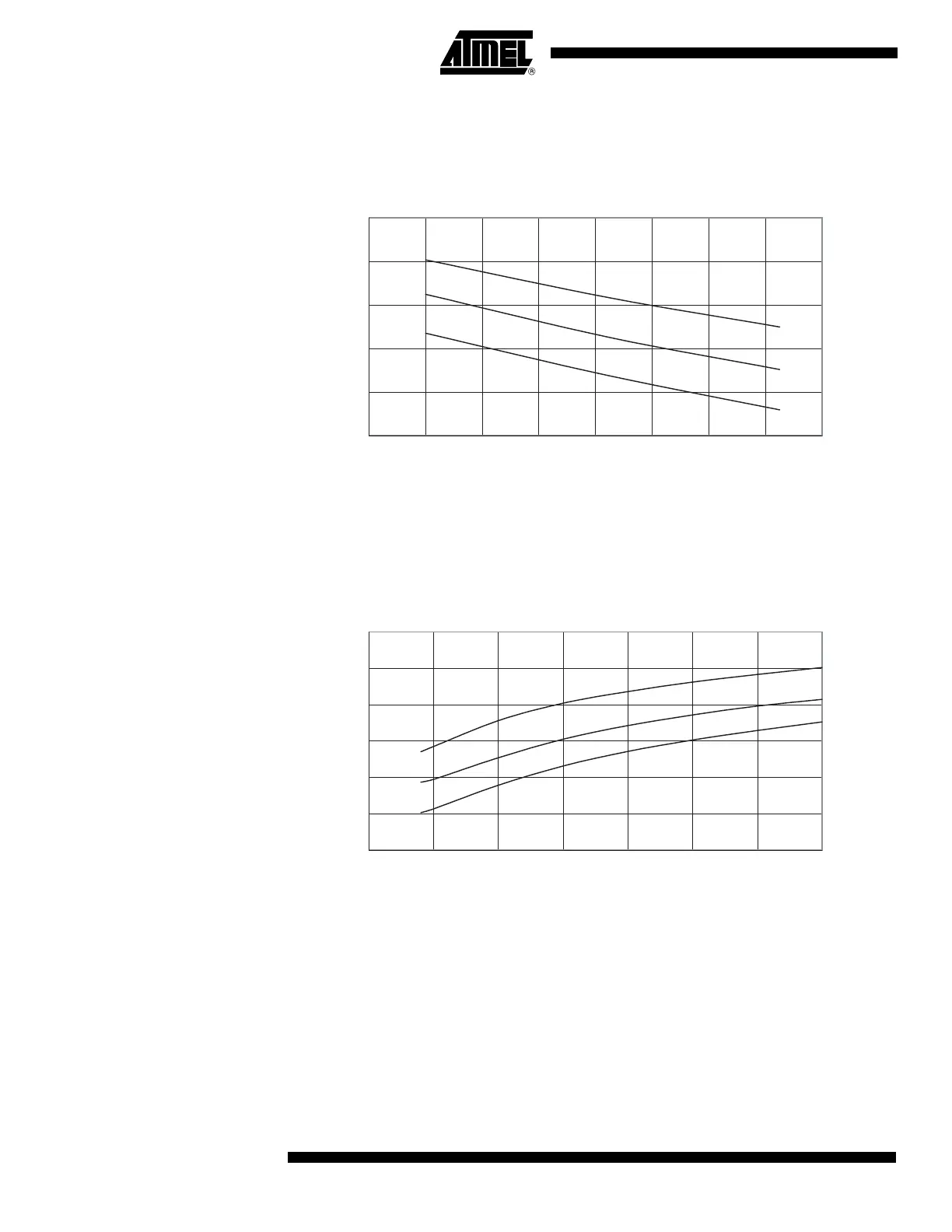

Figure 124. Calibrated 8 MHz RC Oscillator Frequency vs. Temperature
Figure 125. Calibrated 8 MHz RC Oscillator Frequency vs. V
CC
CALIBRATED 8MHz RC OSCILLATOR FREQUENCY vs. TEMPERATURE
6.4
6.9
7.4
7.9
8.4
8.9
-60 -40 -20 0 20 40 60 80 100
T
a
(˚C)
F
RC
(MHz)
5.0V
3.5V
2.7V
CALIBRATED 8MHz RC OSCILLATOR FREQUENCY vs. V
CC
6
6.5
7
7.5
8
8.5
9
2 2.5 3 3.5 4 4.5 5 5.5
V
CC
(V)
F
RC
(MHz)
85°C
25°C
-40°C
