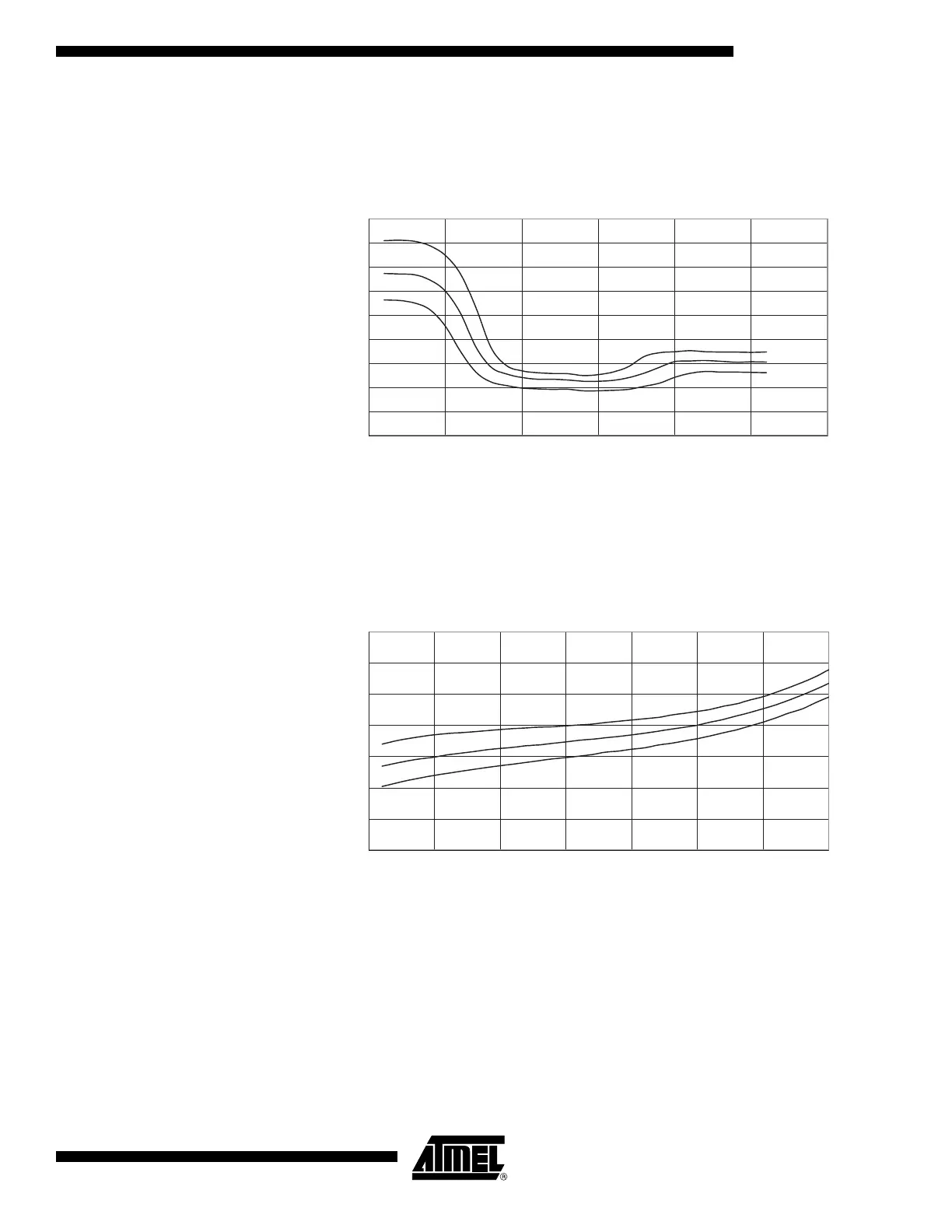

Figure 122. Analog Comparator Offset Voltage vs. Common Mode Voltage (V
CC
= 2.7V)
Internal Oscillator Speed Figure 123. Watchdog Oscillator Frequency vs. V
CC
ANALOG COMPARATOR OFFSET VOLTAGE vs. COMMON MODE VOLTAGE
Vcc = 2.7V
0
0.001
0.002
0.003
0.004
0.005
0.006
0.007
0.008
0.009
0 0.5 1 1.5 2 2.5 3
Common Mode Voltage (V)
Comparator Offset Voltage (V)
85°C
25°C
-40°C
WATCHDOG OSCILLATOR FREQUENCY vs. V
CC
1.05
1.1
1.15
1.2
1.25
1.3
1.35
1.4
2 2.5 3 3.5 4 4.5 5 5.5
V
CC
(V)
F
RC
(MHz)
85°C
25°C
-40°C
