Atomos SUMO19 User Manual

*Subject to change without notice Atomos Sumo19 – User Manual Edition 1: September 2017 13

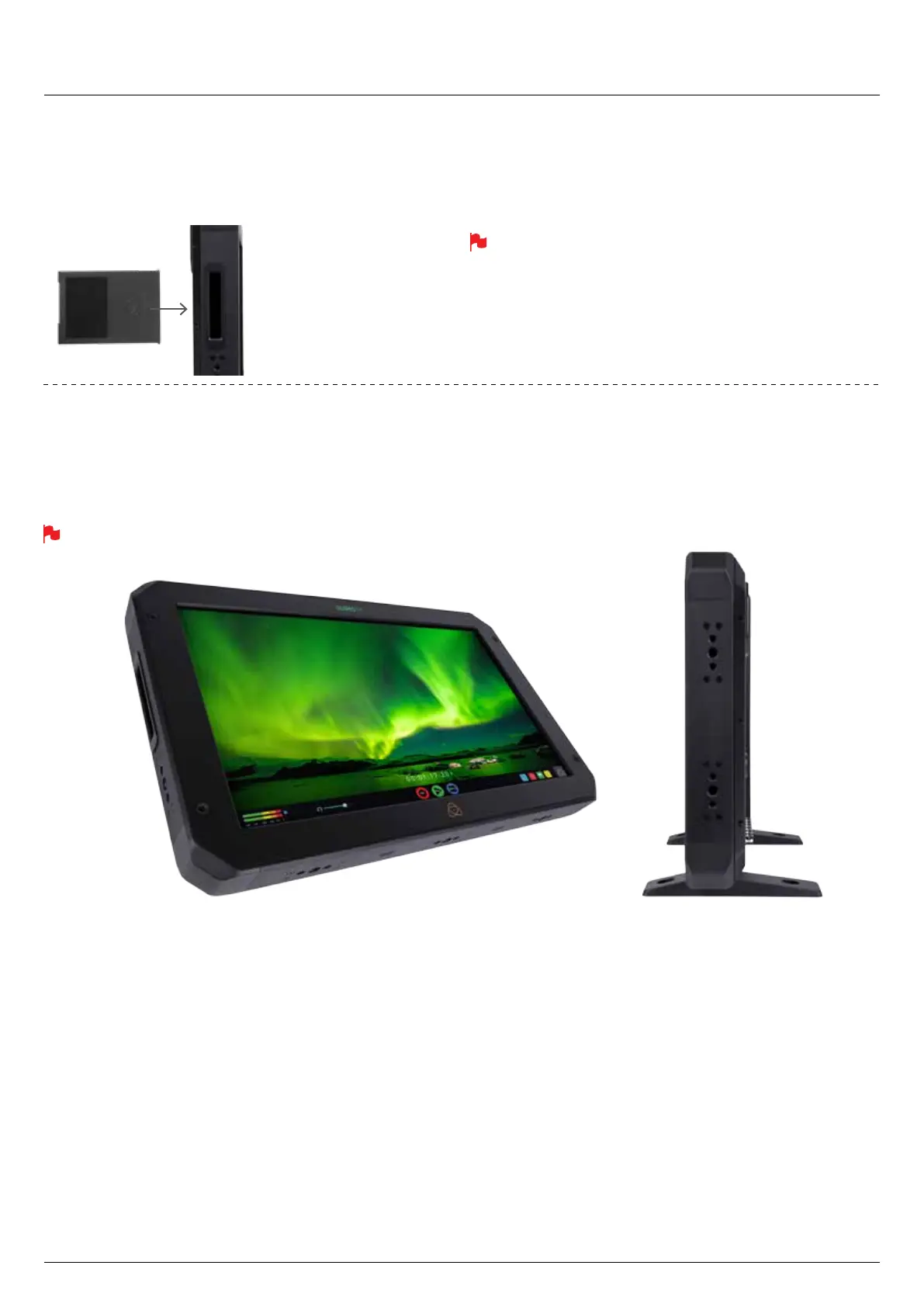

6. Master Caddy II, Screw Mounts and Sun Hood
Screw Mounts
TheSumofeaturesstandardtripod¼”screwmountsand3/8”screw
mounts on the top/bottom/side of the unit along with a standard VESA
mountontherearpanel,allowingyoutocongureyourrecordingsetupto
suit your needs (camcorder mount accessories not included with Sumo).
Ensure you do not over tighten the screw mounts as this may cause damage
Master Caddy II Slot
On the side of the unit is a 2.5mm HDD slot for Sumo19 Master Disk Caddy
II’s. To insert a caddy, gently push until it clicks into position.
Formatting disks - see page 20
Master Caddy II - 2 keyway system
The Master Caddy II is hot-swappable, so you can do this at any time –
even while the unit is turned on. But don’t do it while recording or you will
getacorruptedlethatmaybeunplayable.
The Sumo19 does NOT have a release latch - it is friction-t. Simply
pull the Master Caddy out using the top and bottom tabs on the caddy
itself.
Master Caddy II is backwards compatible with previous Atomos
recorders Master Caddy 1 is not compatible with Sumo19 as the
keyways are on one side only.

Atomos SUMO19 Specifications

General

Product color	Black
Housing material	Aluminum
Video capturing speed	120 fps
Maximum video resolution	3840 x 2160 pixels
DC voltage	16.8 V
Power consumption (typical)	75 W
Built-in display	Yes
Display diagonal	19 \
Display resolution	1920 x 1200 pixels
BNC input ports	1
HDD size	2.5 \

Weight and Dimensions

Depth	63 mm
Width	504 mm
Height	310 mm
Weight	5450 g
