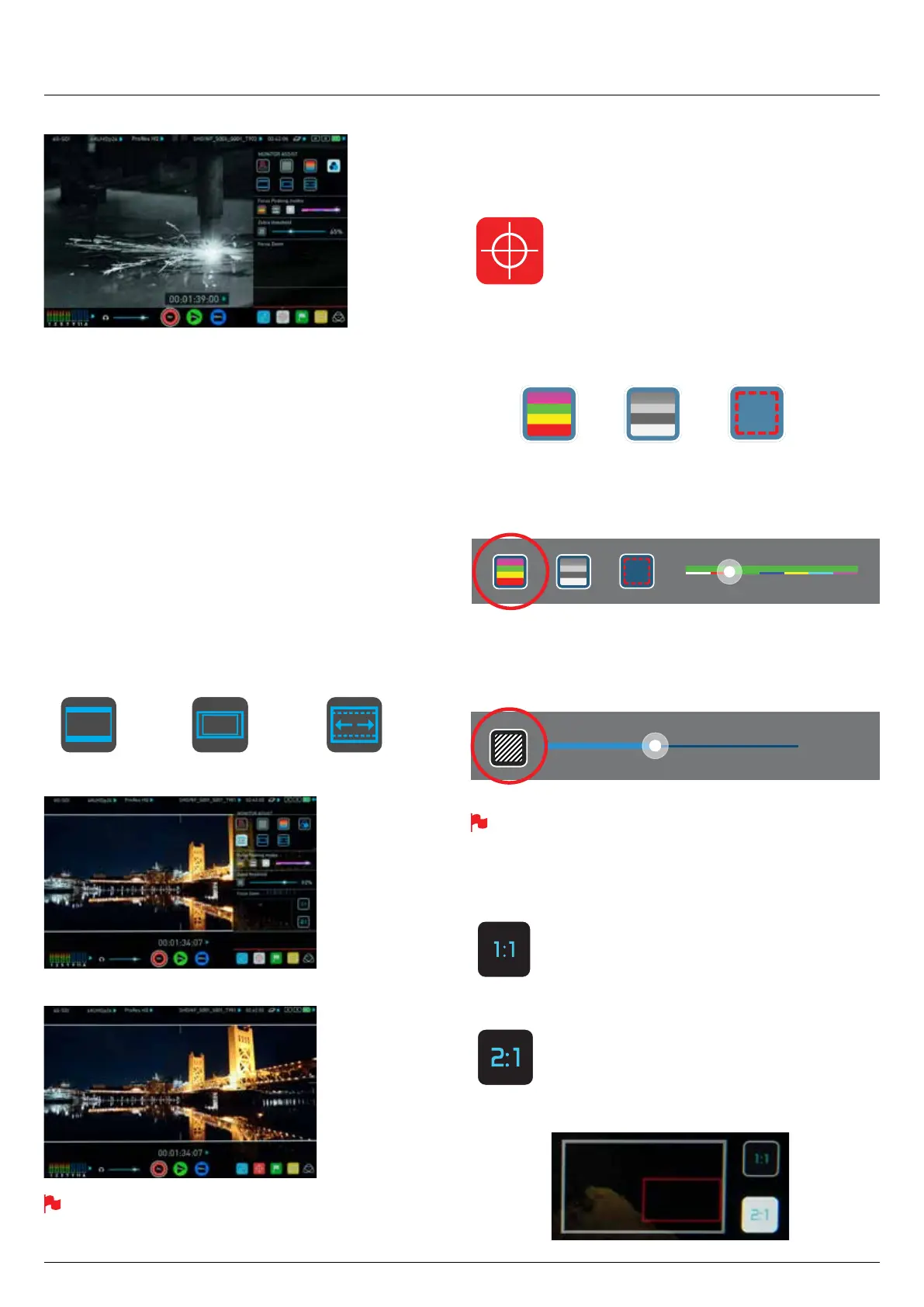

Blue Only Exposure
Blue only displays a greyscale image based on the blue channel of the
input signal. This is useful to observe the noise content of a video image
as sensor noise is most visible in this channel.
Cinema Guides / Safe Areas / Anamorphic De-Squeeze
You can cycle through your required cine or TV frame guides by repeat-
edly pressing the guides icon. Action safe area and title safe areas can
then be turned on and are proportional to the frame guides based on
SMPTE standards.
How to use
To enable the Frame guides press the frame guide button to cycle
through your chosen aspect ratio. The aspect ratio markers are very
useful with the 2 x Anamorphic De-Squeeze to preview and crops that
could be made in post.
To turn on the safe area markers tap the Safe area button once for the
Action area and again for the title safe area.
Cinema Guides Shown With Menu Overlays
Cinema Guides Shown Without Menu Overlays
The Safe Area/Grid Lines will still be visible when tapping the center
of the screen to hide the overlays.
Focus Assist Settings
From within the Waveform Monitoring menu, press the Settings icon to
access the display settings for Focus Peaking, Zebra, False Colour and
Blue Only Exposure.
To change the Focus Assist modes, press on the Colour, Mono or Outline
icons and the display will update immediately.
The color of the Focus Assist can be changed by dragging the slider, the
colorselectedwillbereectedinthetopline.
The Zebra threshold value can be adjusted by moving the slider left or
right. The threshold percentage will be shown on the right of the slider.
All of these settings will update without the need to close the settings.
Zoom
Zoom mode enables you to punch in and check critical focus
Toggle 1:1 to display 1:1 pixel mapping, the indicator box
shows the location of the screen you are viewing.
4K 1:1 shows 1/4 of the 4K UHD image.
Toggle 2:1 to magnify the screen, the indicator box shows
the location of the screen you are viewing, you can move
the zoomed location by dragging across the screen or
selecting a portion of the indicator box.
4K 2:1 shows 1/16 of the 4K UHD image.
8. Monitoring and Recording cont.
Focus Assist Settings icon
43%
Color Mono
Edges Only
(Depthofeldfocustool)
Cinema Guides Safe Areas Anamorphic De-Squeeze

Atomos SUMO19 Specifications

General

Product color	Black
Housing material	Aluminum
Video capturing speed	120 fps
Maximum video resolution	3840 x 2160 pixels
DC voltage	16.8 V
Power consumption (typical)	75 W
Built-in display	Yes
Display diagonal	19 \
Display resolution	1920 x 1200 pixels
BNC input ports	1
HDD size	2.5 \

Weight and Dimensions

Depth	63 mm
Width	504 mm
Height	310 mm
Weight	5450 g
