3. Mounting disks in the Master Caddy II

Mounting drives in the Master Caddy II

Insert the disk into the caddy, and secure with four screws. The caddy is

light and the disk just needs to be held securely. Don’t over-tighten the

screws. There are no connections to make because sliding the caddy

into the Sumo19 or the Docking station makes all the connections for you.

The Master Caddy can’t be inserted the wrong way round. Always make

sure that the disk connector faces the slot in the Sumo19. You have to be

quitermtopushtheMasterCaddyIIintoplace,butdon’tpushtoohard,

just in case something isn’t set up or aligned properly.

There is very little that can cause problems and the most likely thing is

thattheMasterCaddyisn’tproperlyushwiththedriveinside.Aquick

visualcheckwillconrmthis.

Spinning disks and SSDs are very sensitive to damage from

static electricity. Please observe all the usual precautions

when handling them, especially DO NOT EVER touch the exposed

SATA connector as static electricity may be harmful

to your disk.

Master Caddy II drives are backwards compatible with previous

Atomos recorders, however Master Caddy 1 is not forward

compatible with the Sumo19 due to the compact latch design.

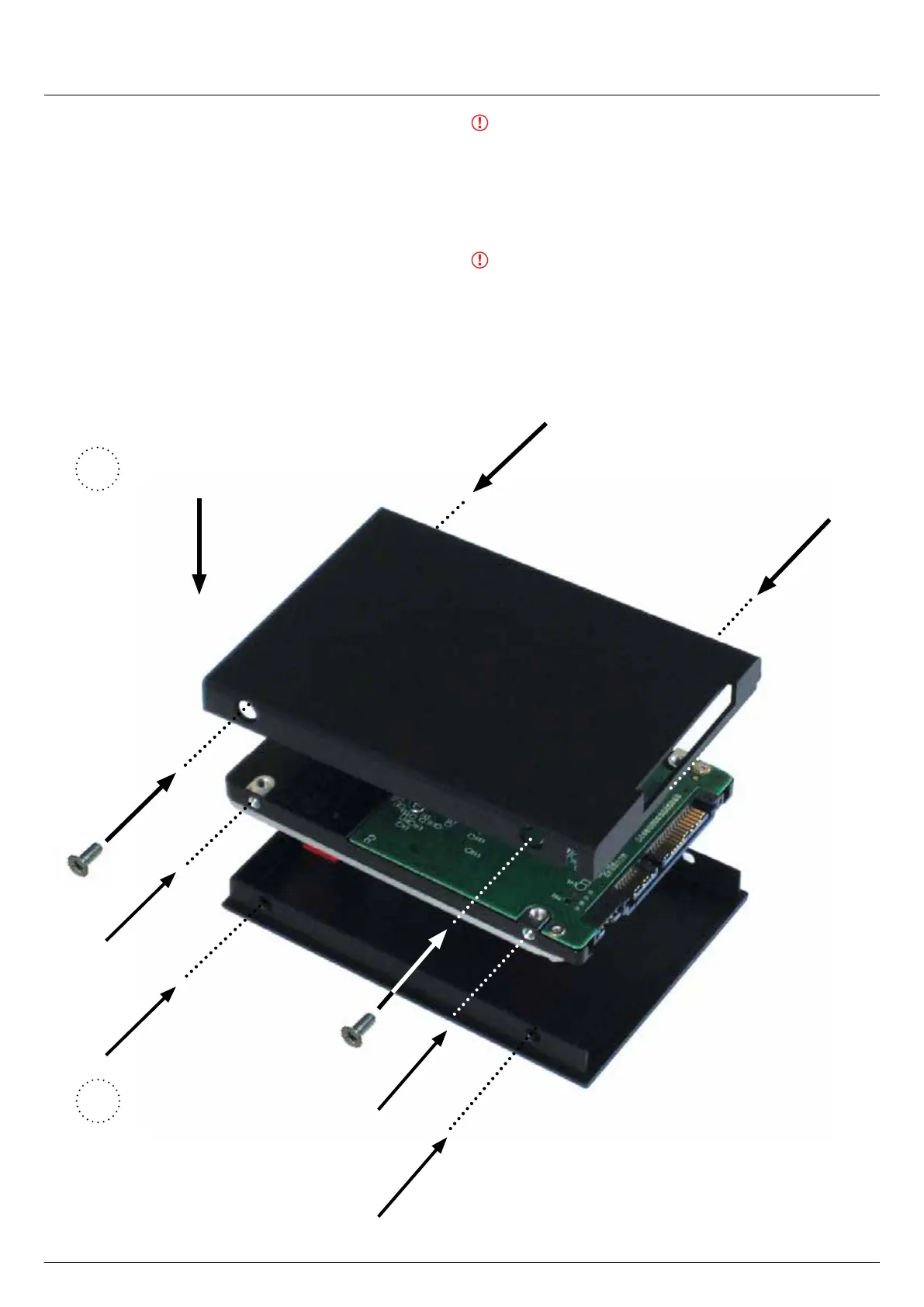

Carefully assemble the

Master Caddy II and disk

Ensure all 3 parts aligned

and insert 4 x screws (supplied)

Do not over-tighten screws or

alignment can not be guaranteed.

We suggest squeezing the corners

together near the screw you are

tighteningforoptimalt.

Insert screw

Align all parts

Insert screw
