AudioArts Engineering D-16 - DB-25 LINE in 5-8 Connector

page 3 – 4
D-16 / Feb 2003
FADER SECTION
Pin 10 – HI
Pin 23 – LO Line 1 Rt In
Pin 11 – SH
Pin 21 – HI
Pin 9 – LO Line 2 Lt In
Pin 22 - SH
Pin 7 – HI
Pin 20 – LO Line 2 Rt In
Pin 8 – SH
Pin 18 – HI
Pin 6 – LO Line 3 Lt In
Pin 19 – SH
Pin 4 – HI
Pin 17 – LO Line 3 Rt In
Pin 5 – SH
Pin 15 – HI
Pin 3 – LO Line 4 Lt In
Pin 16 – SH
Pin 1 – HI
Pin 14 – LO Line 4 Rt In
Pin 2 – SH
DB-25 “LINE IN 5-8” Connector
Pin 24 – HI
Pin 12 – LO Line 5 Lt In
Pin 25 – SH
Pin 10 – HI
Pin 23 – LO Line 5 Rt In
Pin 11 – SH
Pin 21 – HI
Pin 9 – LO Line 6 Lt In
Pin 22 - SH
Pin 7 – HI
Pin 20 – LO Line 6 Rt In
Pin 8 – SH
Pin 18 – HI
Pin 6 – LO Line 7 Lt In
Pin 19 – SH
Pin 4 – HI
Pin 17 – LO Line 7 Rt In
Pin 5 – SH
Pin 15 – HI
Pin 3 – LO Line 8 Lt In
Pin 16 – SH
Pin 1 – HI
Pin 14 – LO Line 8 Rt In
Pin 2 – SH

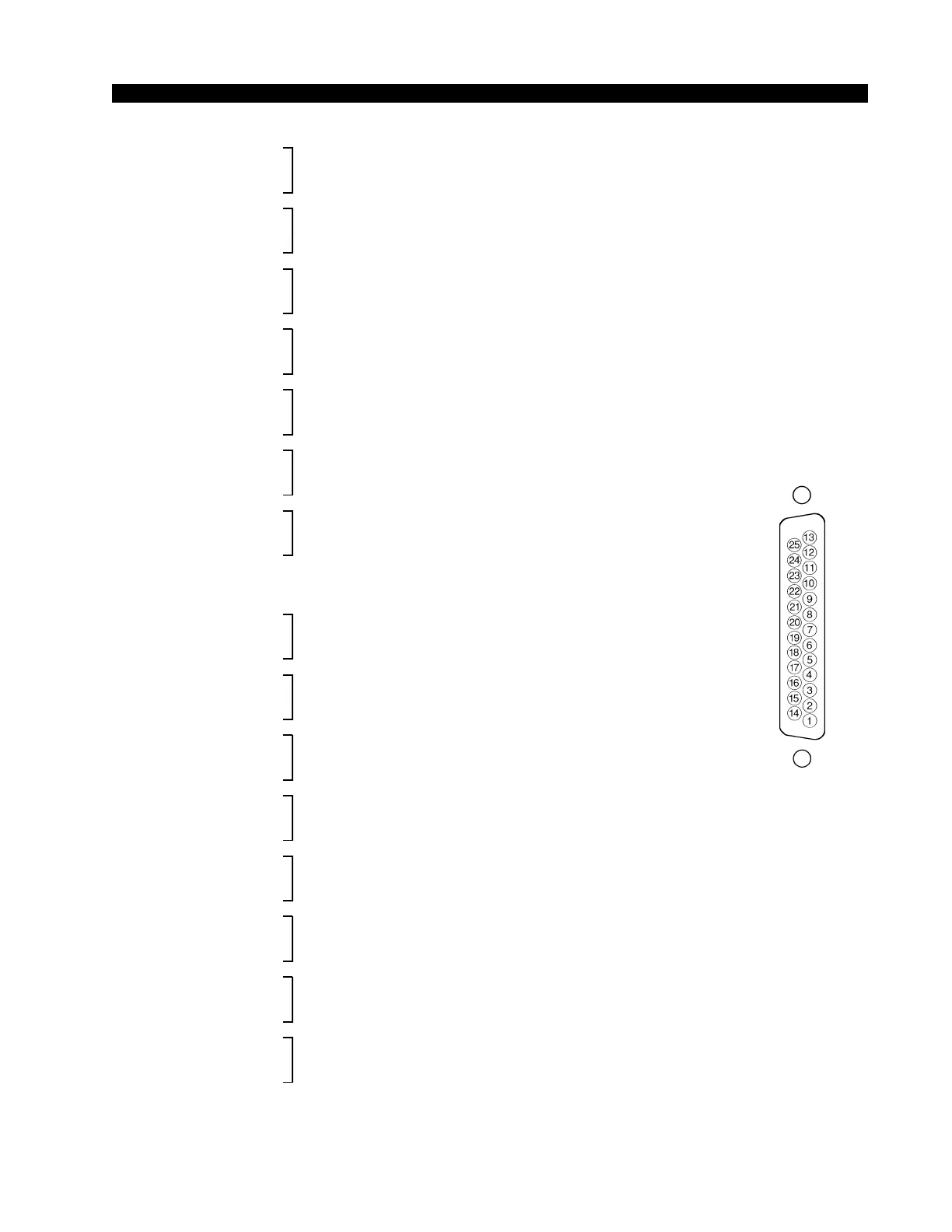

Typical DB-25
connector
