MONITOR SECTION
Monitor Outputs

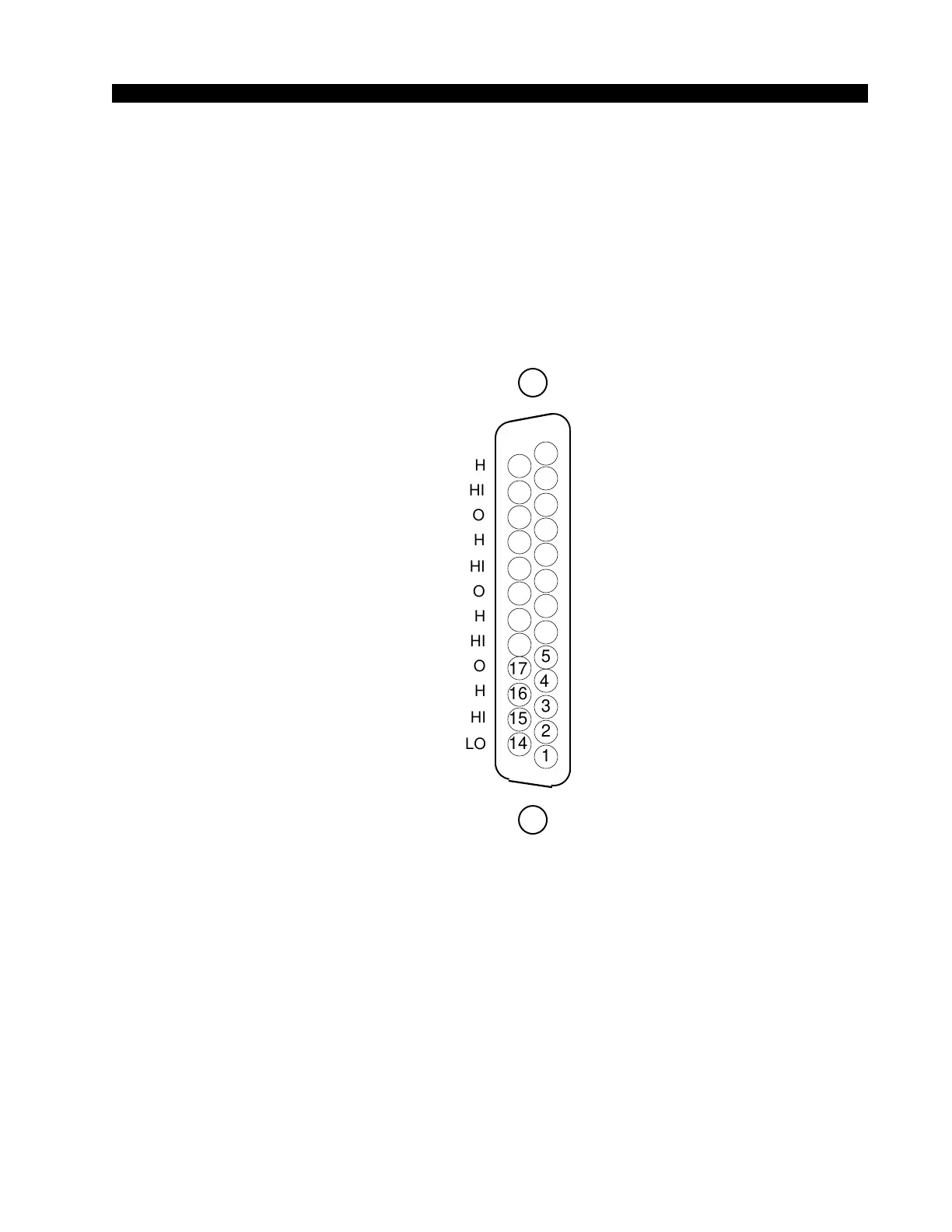

DB Connector Pinouts
MONITORS
(DB-25)
CR OUT LT SH
CR OUT LT HI
CR OUT RT LO
ST OUT LT SH
ST OUT LT HI
ST OUT RT LO
ST PRE OUT LT SH
ST PRE OUT LT HI
ST PRE OUT RT LO
HDPN OUT LT SH
HDPN OUT LT HI
HDPN OUT RT L
O
AUDIO GROUND
CR OUT LT LO
CR OUT RT SH
CR OUT RT HI
ST OUT LT LO
ST OUT RT SH
ST OUT RT HI
ST PRE OUT LT LO
ST PRE OUT RT SH
ST PRE OUT RT HI
HDPN OUT LT LO
HDPN OUT RT SH
HDPN OUT RT HI
5
4
3
2
1
17
16
15
14
8
7
6
20
19
18
10
9
23
22
21
13
12
11
25
24
