MASTER OUTPUTS
Master Outputs
Overview
The D-16 console has four master analog outputs: two stereo outputs - PGM
(Program) and AUD (Audition); and two mono outputs - MONO1 and MONO2.
The two stereo outputs are also duplicated in digital format.
All user wiring takes place at DB-25 connectors, located on the rear of the
console. There are two connectors: “ANALOG OUT” handles analog outputs and
“DIGITAL OUT” handles digital outputs (AES format).
Master outputs also generate the console’s monitor signals, which feed the
Control Room and Studio.
This section also generates the CUE and TB outputs, which are available at the
“ANALOG OUT” connector.
Setting Output Sample Rate
The console output sample rate is determined by crystal Y1, which is installed
at the factory for 44.1 kHz sample rate. Crystals for 32 KHz and 48kHz sample
rates are available from the factory as a special order item.
To switch to a different output sample rate, replace crystal Y1 with one of the
appropriate frequency as shown in Figure 1 and Table 1.
TABLE 1
SAMPLE RATE CRYSTAL OSCILLATOR WS PART#
FREQUENCY
48 kHz 24.576 mHz 370012
44.1 kHz 22.579 mHz 370011
32 kHz 16.384 mHz 370010
The console must be powered down be-
fore changing the sample rate crystal Y1 or
damage not covered by warranty may result.
Changing the crystal Y1 will change the
console output sample rate; however some external digital devices also
need the correct sample rate information to be embedded in the AES
output data or they will not operate correctly. Therefore, after changing
the sample rate crystal Y1, be sure to change the Monitor Attribute 2
(see the D-16 Administrator Manual, page A-15, for details).
D-16 / Aug 2006

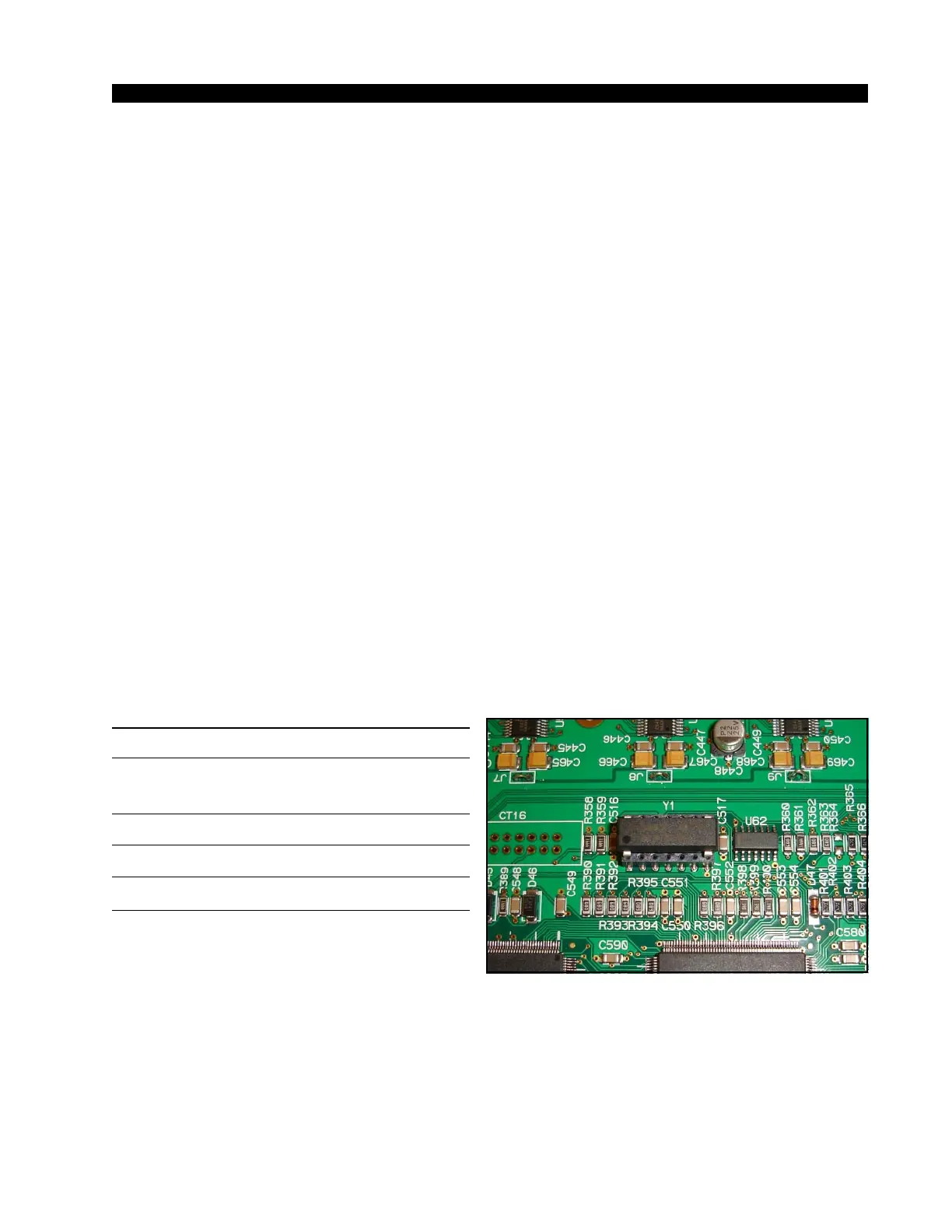

Figure 1. Section of the PR-1214 PCB
