INSTALLATION and POWER
page 1 – 2
D-16 / Feb 2003
Installation and Power
Unpacking the Console
The D-16 console is shipped as two packages. One carton contains the
console and documentation and the second carton contains the Power
Supply and connecting cable.
Countertop Installation
The D-16 digital audio console is designed for countertop mounting.
Console placement should avoid proximity to any electromagnetic fields,
such as large power transformers, motors, and fluorescent lighting
fixtures.
The console extends approximately 6” above the countertop at the
meterbridge.
Do not connect the D-16 console to its power supply (and do not
connect the power supply to the AC power line) until instructed to do
so.
NOTE: This console
contains static-sensi-
tive devices. Normal
precautions against
static discharge should
be observed.

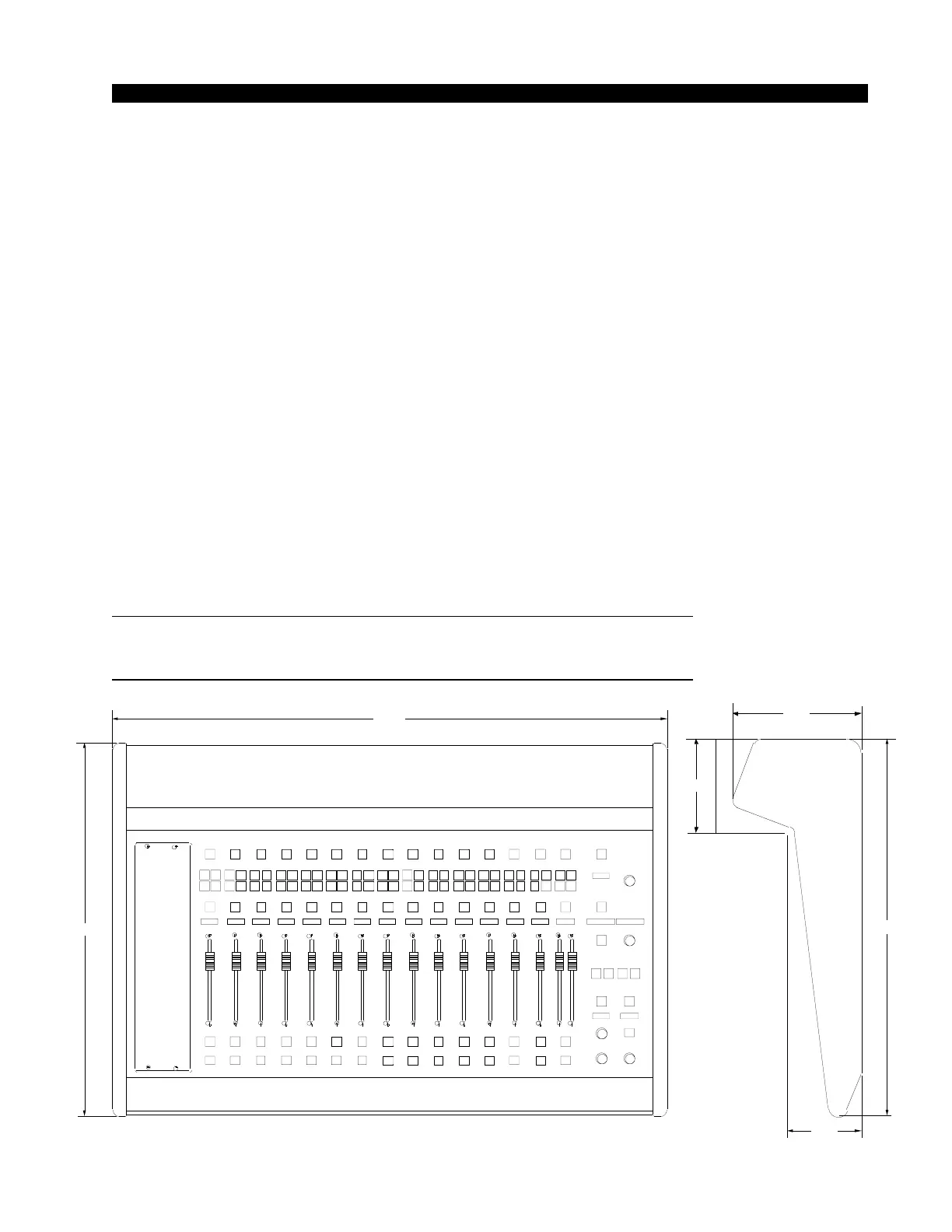

29.500
19.837
6.755
19.837
3.900
5.000
