AudioCodes Mediant 800 Installation Manual

Installation Manual 4. CCE Installation
Version 2.0.5 19 Mediant 800 CCE & Mediant Server CCE

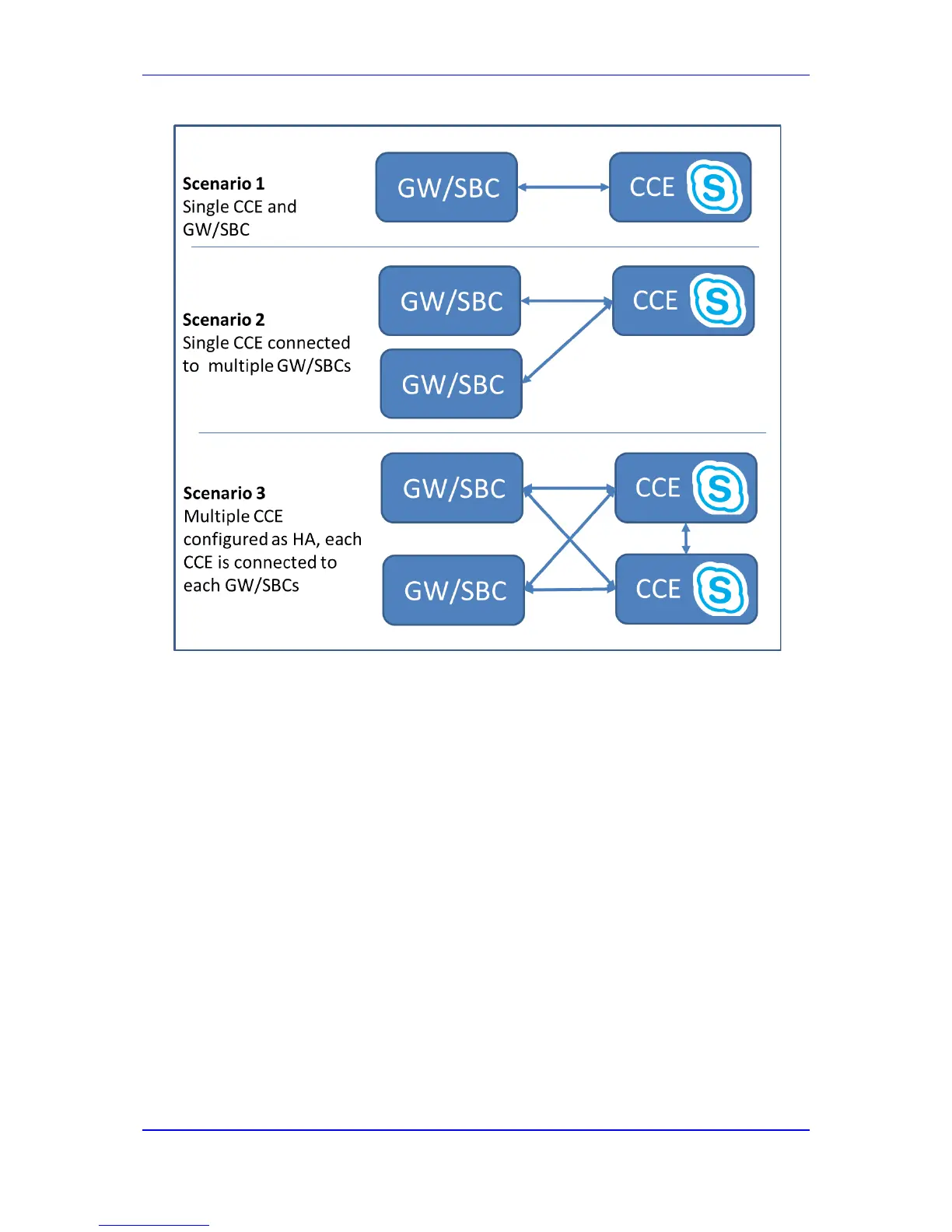

Figure 4-9: CCE and Gateway/SBC Deployment Options
Deploying multiple CCEs and Gateways/SBCs allows you to enhance your site capacity,
and implement High Availability (HA) configuration for the CCE instance and also for
Gateway/SBC redundancy configuration. The following deployment scenarios are
supported:

Scenario 1: Single CCE Appliance and Gateway/SBCs

Scenario 2: Single CCE connected to multiple Gateway/SBCs

Scenario 3: Multiple CCE configured as HA where each CCE is connected to all
Gateways/SBCs

AudioCodes Mediant 800 Specifications

General

Protocols	SIP, H.323
Digital Interfaces	1/2 E1/T1 PRI
Management	Web, CLI, SNMP
Mounting	19-inch rack
Codecs	G.711, G.729, G.722, G.723.1
Power Supply	100-240V AC
Operating Temperature	0 to 40°C
Storage Temperature	-25 to 70°C
Humidity	10% to 90% non-condensing
