AudioCodes Mediant 800 Installation Manual

Installation Manual 4. CCE Installation
Version 2.0.5 25 Mediant 800 CCE & Mediant Server CCE
5. At this stage, the system checks that all prerequisites have been installed correctly.
Click Next.

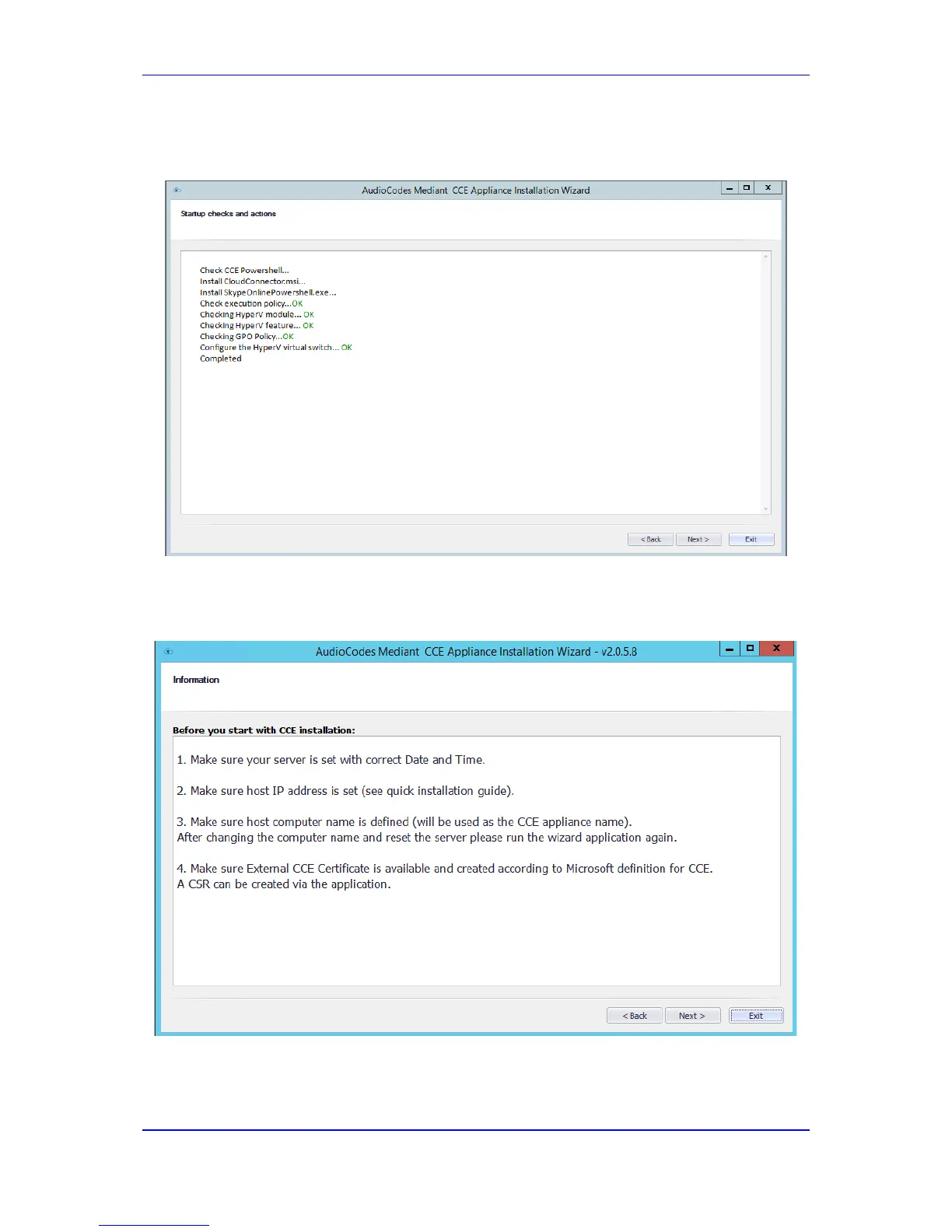

Figure 4-15: Startup Checks and Modules
6. Make sure you that have completed the listed prerequisites before continuing to the
next step, and then click Next.
Figure 4-16: Prerequisites

AudioCodes Mediant 800 Specifications

General

Protocols	SIP, H.323
Digital Interfaces	1/2 E1/T1 PRI
Management	Web, CLI, SNMP
Mounting	19-inch rack
Codecs	G.711, G.729, G.722, G.723.1
Power Supply	100-240V AC
Operating Temperature	0 to 40°C
Storage Temperature	-25 to 70°C
Humidity	10% to 90% non-condensing
