2.7 Installing and Removing the Paper Rack
2.7.1 Installing the Paper Rack
Firstly, hold the front of the paper rack vertically down, aim the right and left mounting slot at the
positioning shafts on the right and left holders, then press them down and fit them into place, at last,
rotate the paper rack outwards and press it into place.
2.7.2 Removing the Paper Rack
Hold the right and left holders with your hands, pull it up with your thumbs on both sides of the paper
rack, then rotate it upwards until it becomes vertical, at last lift it up.
2.8 Installing the Tractor
2.8.1 Installing the Rear Tractor
Note: If only use the cut sheet; you don’t need to install the tractor.

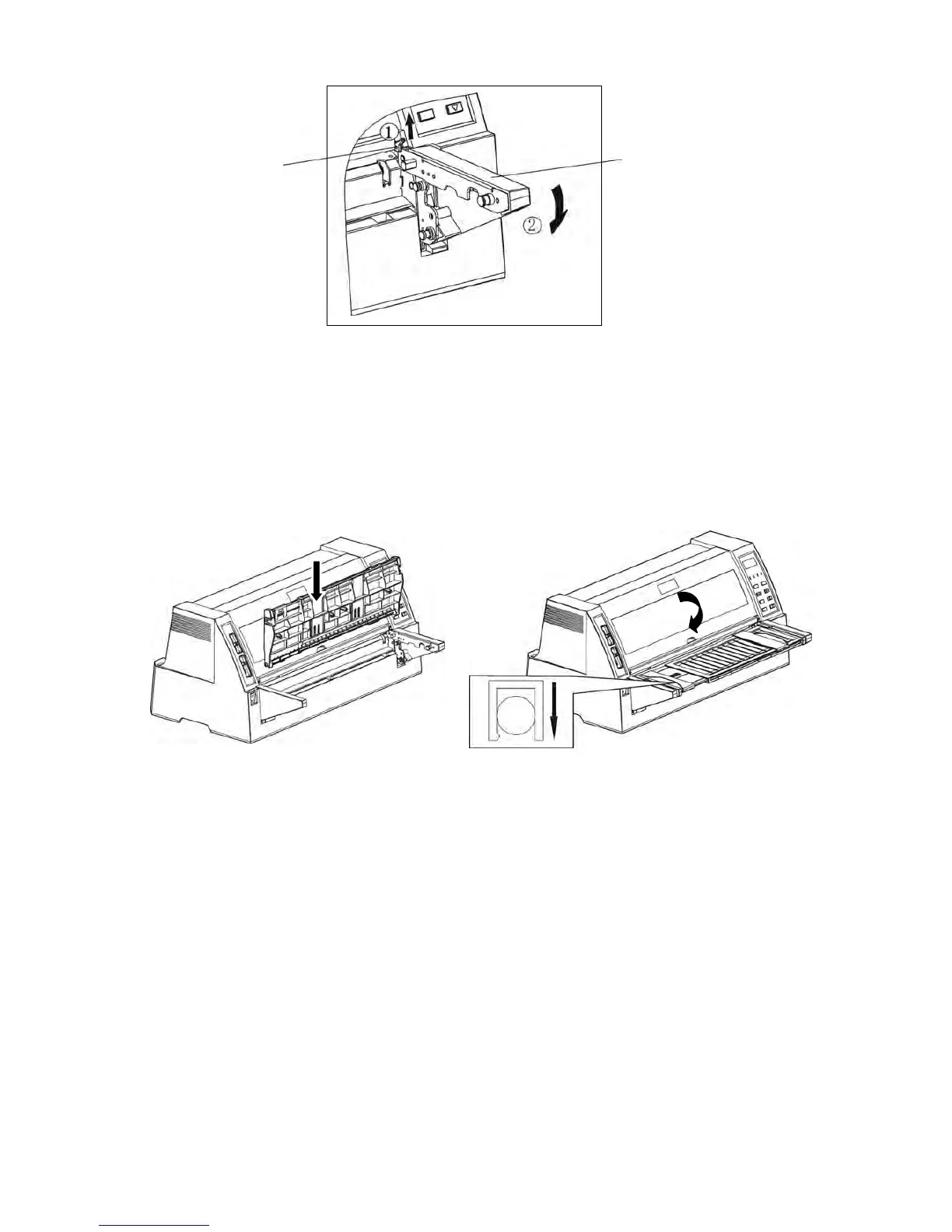

Figure 2-10 Remove the right paper rack holder
Figure 2-11 Install the paper rack
Right paper rack holder
Rack knob
(1) (2)
