16 AutoFarm GPS AutoSteer
Steering Valve Overview
Valve Hose Adapter Connections

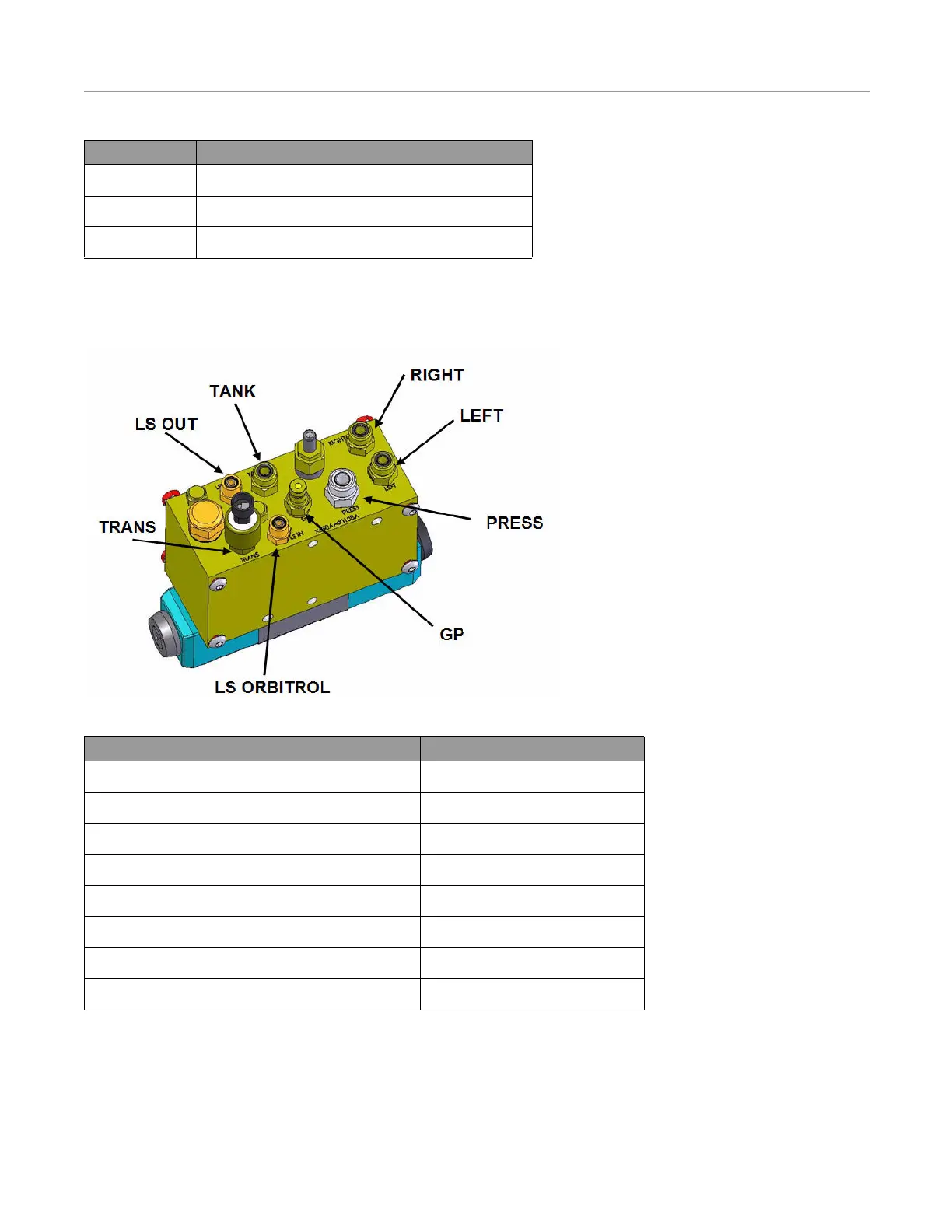

Figure 3-1 Valve Hose Adapter Connections
Table 3-2 Valve Functions and Fitting Sizes
Rated Oil Flow 5.8 GPM
Coil Voltage 12 Vdc
Weight 15 lbs (6.8 kg)
Hose Adapter Fitting Type/Size
PRESS = PUMP PRESSURE (Power Beyond) -8 ORFS
TANK = TANK / RETURN (Power Beyond) -6 ORFS
LS ORBITROL = LS FROM ORBITROL -4 ORFS
LS OUT = LS (Power Beyond) -4 ORFS
LEFT = LEFT STEERING CYLINDER -6 ORFS
RIGHT = RIGHT STEERING CYLINDER -6 ORFS
GP = DIAGNOSTICS PORT 1/8”
TRANS = PRESSURE TRANSDUCER -4 SAE ORB.
Function Data
