AutoFarm A5 - Mounting Hole Patterns

18 AutoFarm GPS AutoSteer
Steering Valve Overview
Mounting Hole Patterns
Note: The valve may be secured using four screws threaded into the valve back side or two longer screws using the two
through holes.

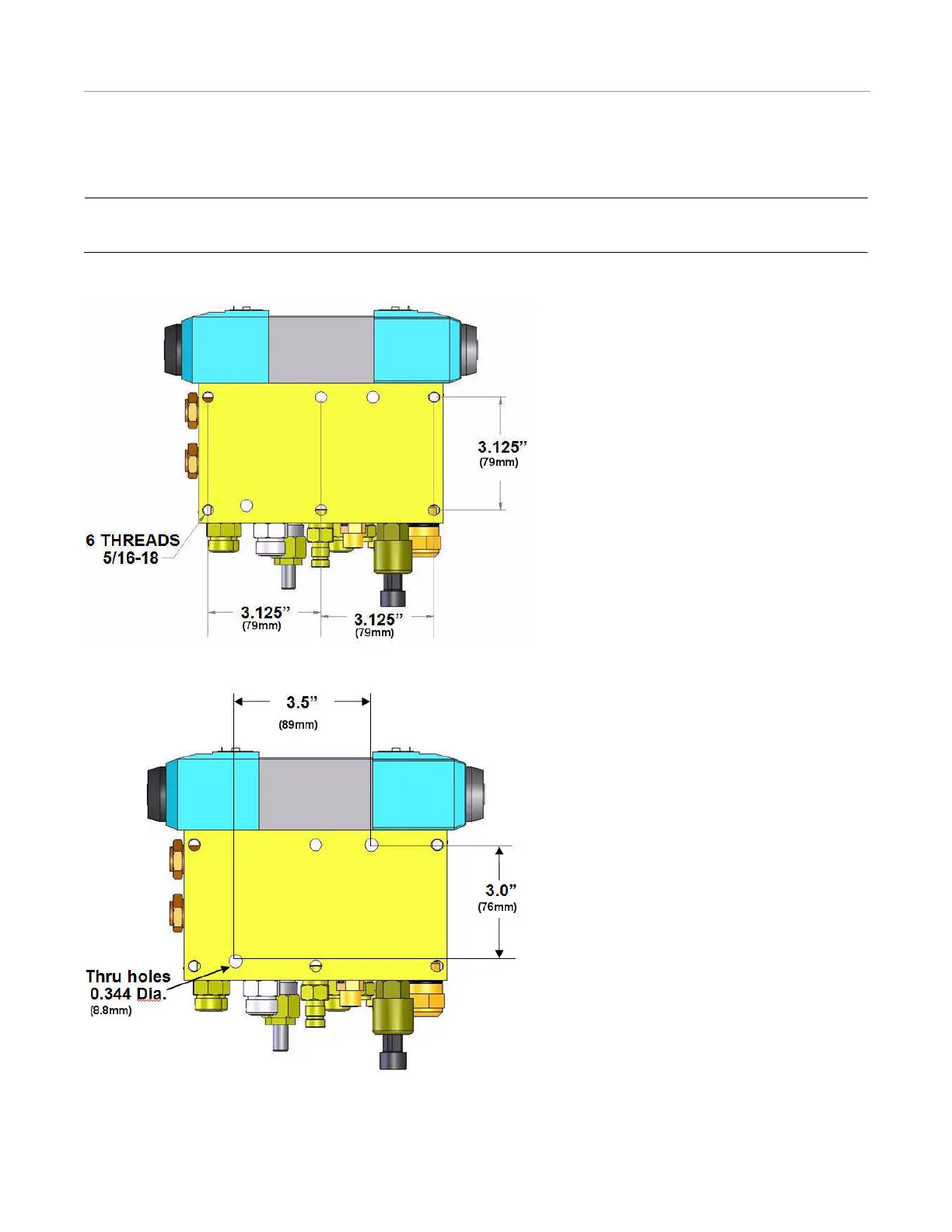

Figure 3-3 Steering Valve Four Screw Mounting Pattern
Figure 3-4 Steering Valve Two Through Body Screw Mounting Pattern
