Hardware Installation Guide 79
Attach the Cable to the SA Module
Connect the SA Module Harness to the Hydraulic Valve
Route and secure the steering cable from the SA Module to the steering valve.
Connect the two connectors shown in Figure 9-4 to the steering valve.

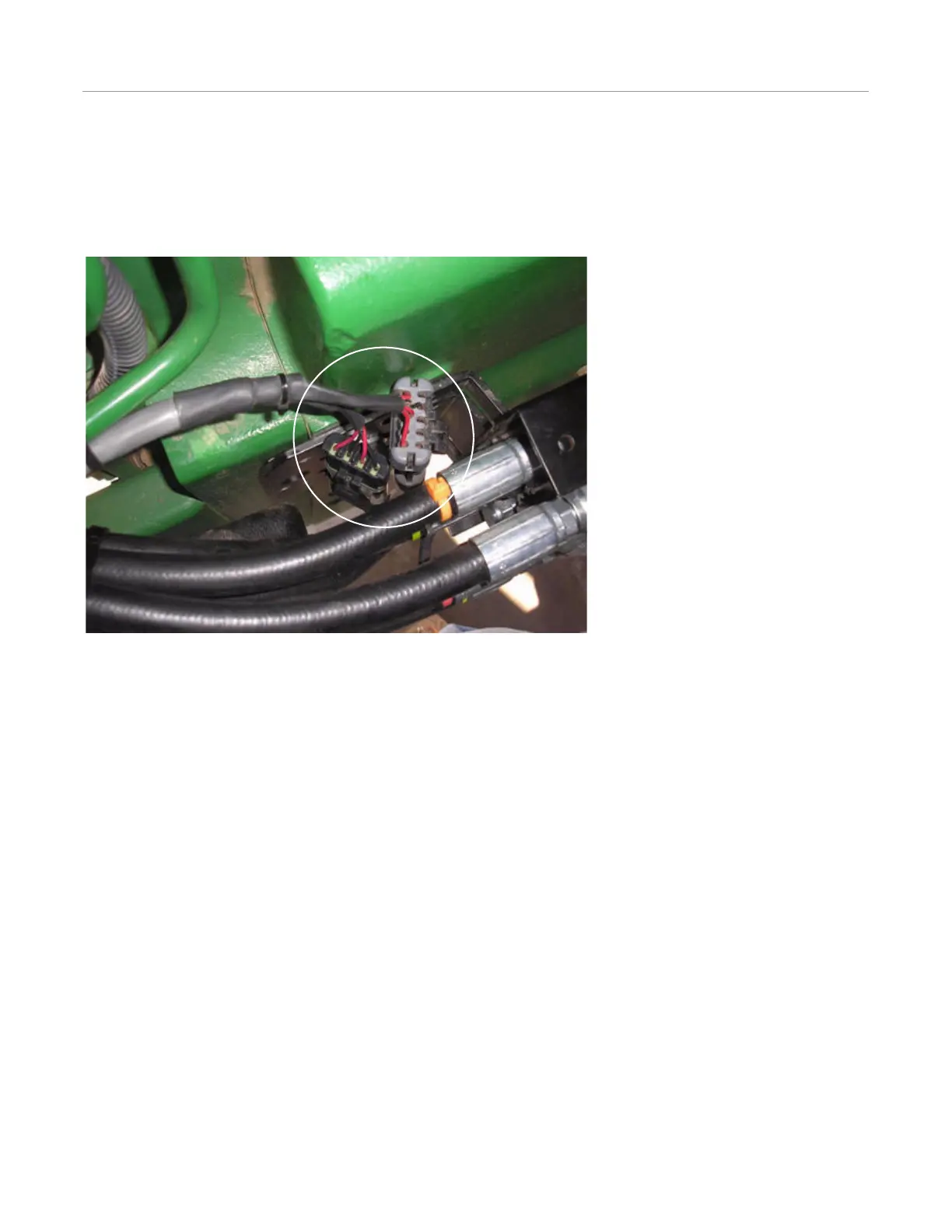

Figure 9-4 SA Module Harness Connection to the Hydraulic Valve
Route the SA Module cable into the cab through the rubber plug under the right side of rear window. See Figure 9-5.
