34 AutoFarm GPS AutoSteer
Valve Type Installation Procedures
Pressure Transducer
Install the pressure transducer on the Steering Valve TRANS port. See Figure 3-19.
Tighten the pressure transducer with a ¾” wrench.
Note: Do not overtighten the Pressure Transducer.
Connect the short transducer harness to the transducer. See Figure 3-19.
Note: Loop the excess harness inside the rear valve cover and secure with a small cable tie on the two holes on the rear
Steering Valve cover.

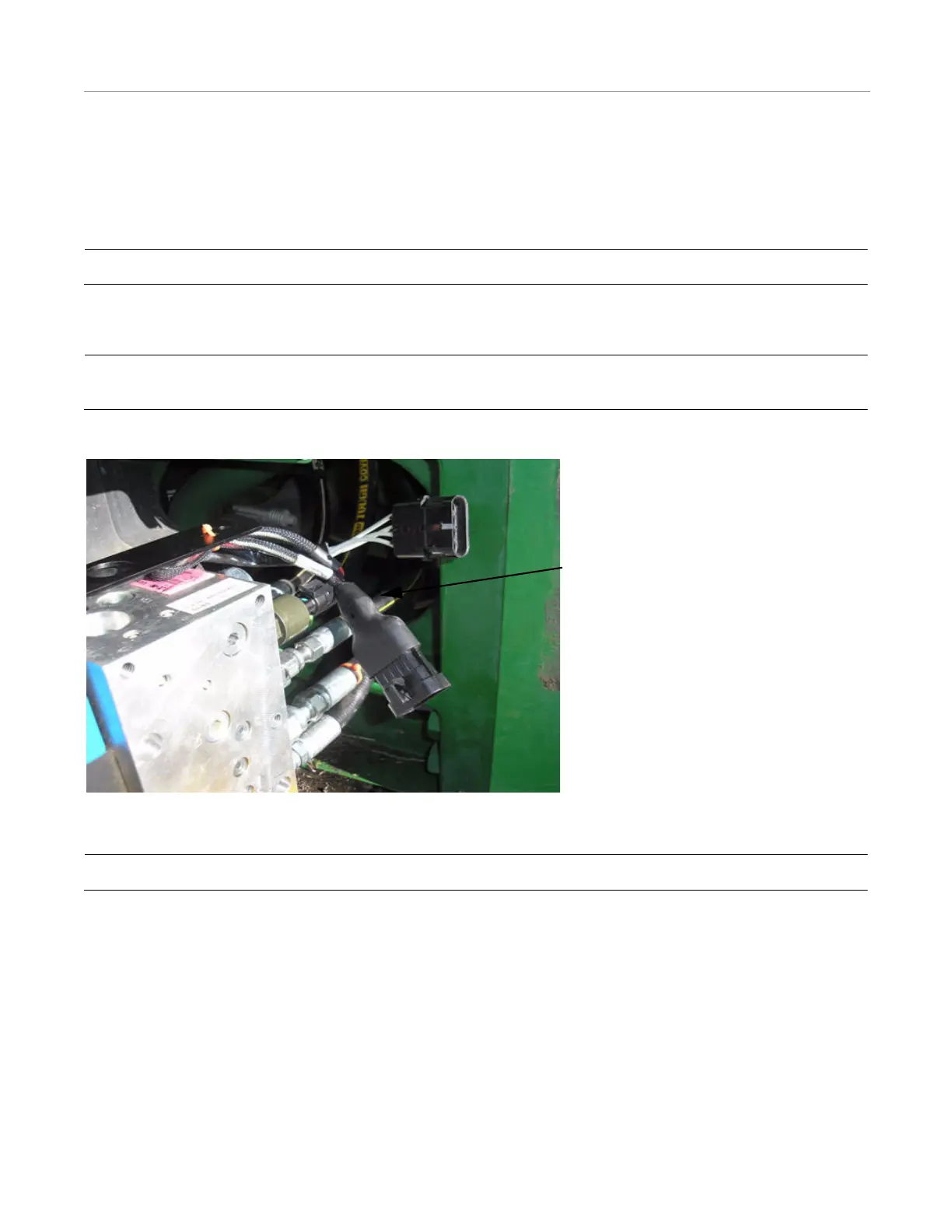

Figure 3-19 Pressure Transducer Installation
Connect the 4-pin connector and 10-pin connector to the SAM harness.
Note: Secure the transducer cable and connector with cable ties in a protected position.
Pressure
Transducer
Installation
