Hardware Installation Guide 19
Steering Valve Overview
Orifice Location and Configuration
The valve has two internal plugs and orifices that must be configured to handle different types of Load Sense systems before
the valve is installed on the vehicle. Follow the table below to configure the correct plugs & orifices for your type of hydraulic
installation.

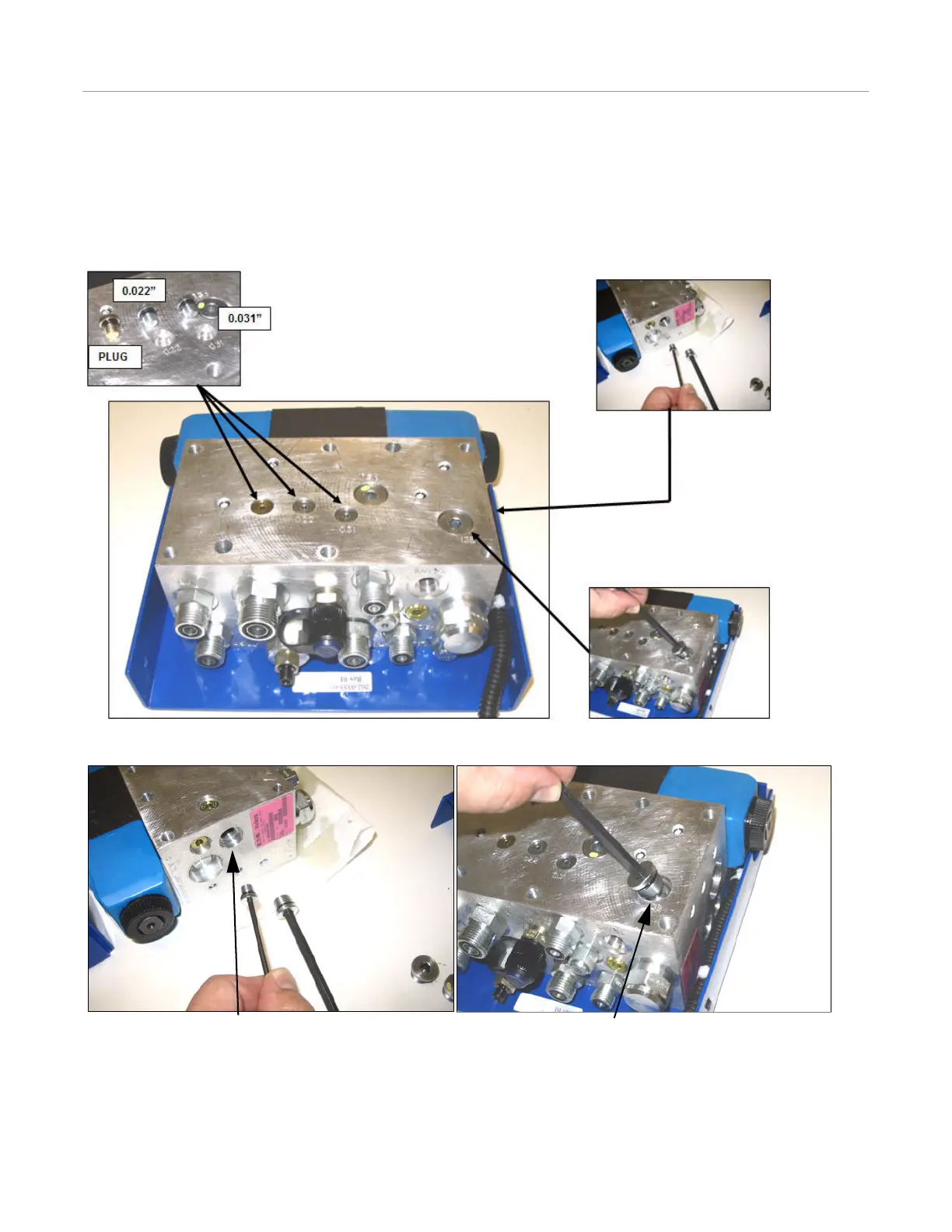

Figure 3-5 Orifice Location and Access
Figure 3-6 Orifice Configuration
13A Plug and Orifice 13B Plug
