Hardware Installation Guide 77
9
SA Module Cable Harness Installation
This SA Module Cable Harness Installation chapter contains information in the following sections:
• Attach the Cable to the SA Module
• Connect the SA Module Harness to the Hydraulic Valve
• Connect the SA Module Harness to the Wheel Angle Sensor (WAS)
• Attach SA Module Cable Harness to Main Cable Harness
• Install Warning Label
Note: See the Cable Diagram section of the Installation Overview chapter for details regarding the SA Module Harness
electrical connections.
Attach the Cable to the SA Module
Connect the SA Module cable harness to the SA Module. See Figure 9-1.

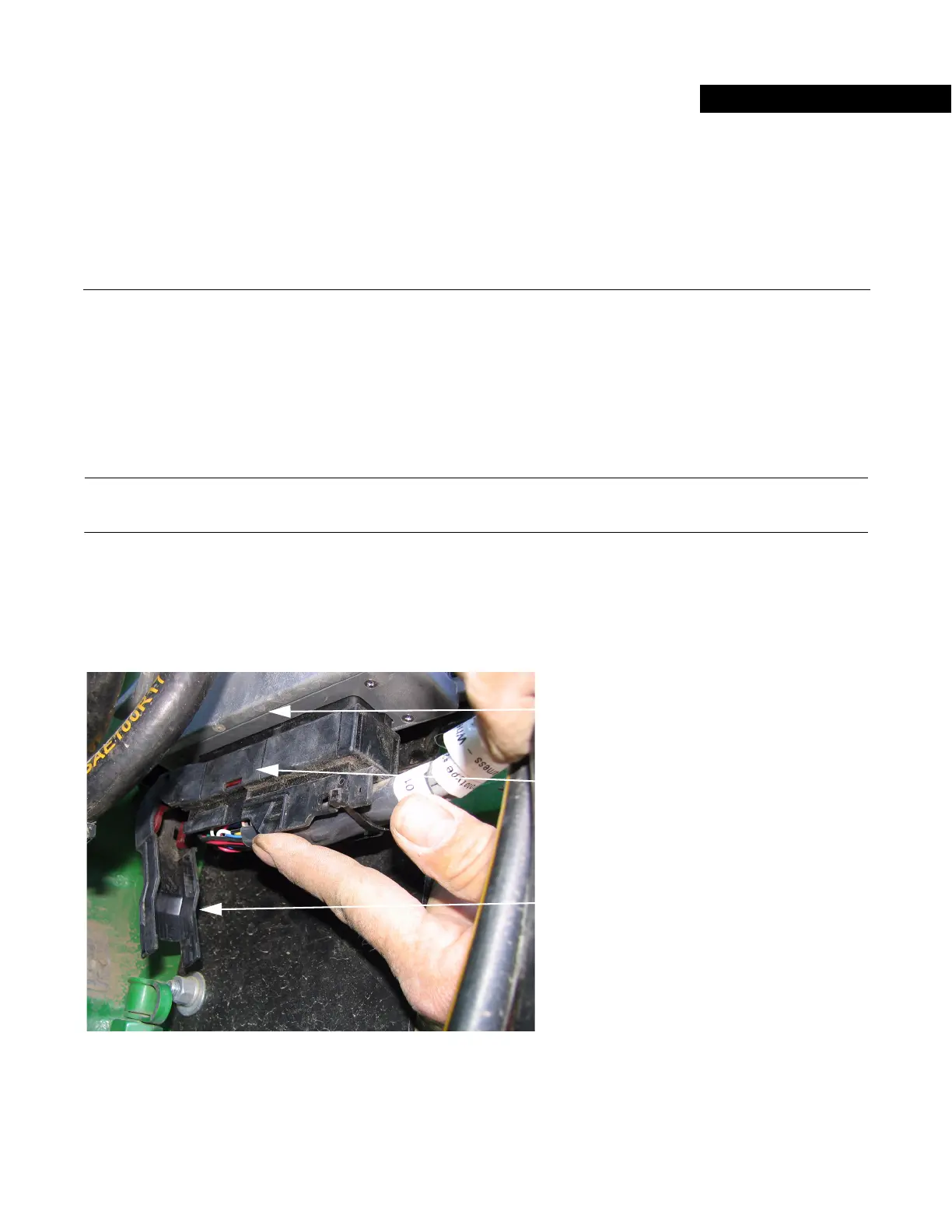

Figure 9-1 Connecting SA Module Connector
Close the cable connector locking mechanism as shown in Figure 9-2.
Bottom of
SA module
Cable
connector
Locking
mechanism in
open position
(Latch)
