Hardware Installation Guide 81
Attach the Cable to the SA Module
Connect the SA Module Harness to the Wheel Angle Sensor
(WAS)
Route and secure the WAS cable from the SA Module beneath the cab to the Wheel Angle Sensor.
Note: Use a cable puller to make routing the cable under the cab easier.
Attach the SA Module cable harness cable to the Wheel Angle Sensor connector. See Figure 9-6.

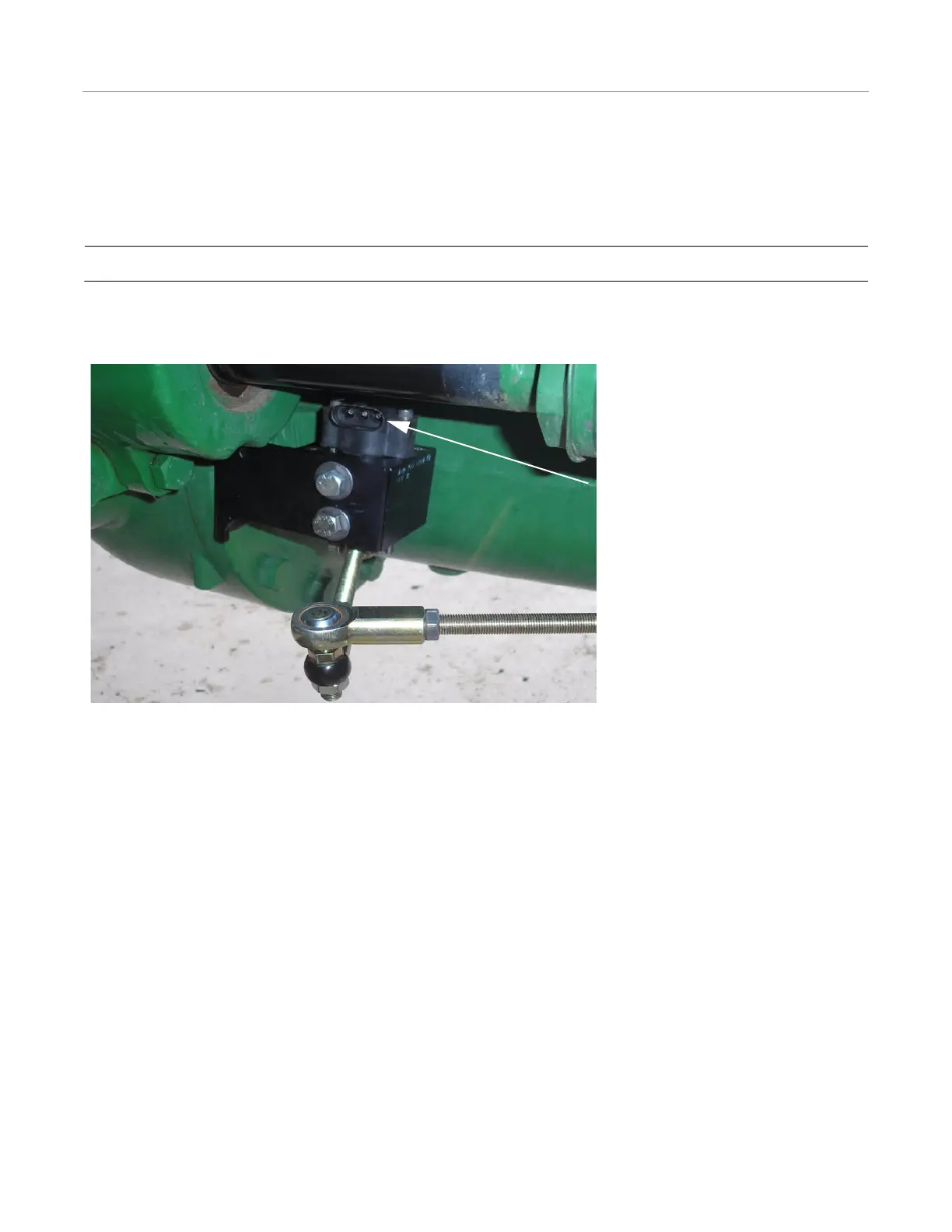

Figure 9-6 Wheel Angle Sensor Connection
Wheel Angle Sensor
Connector
To Next Page
