Steering Valve Bracket Installation
Example Bracket Installation Procedure
1. Mount the bracket to the vehicle using the provided hardware. See Figure 3-14.
Note: The metric bolts provided in your kit fit many tractor models.

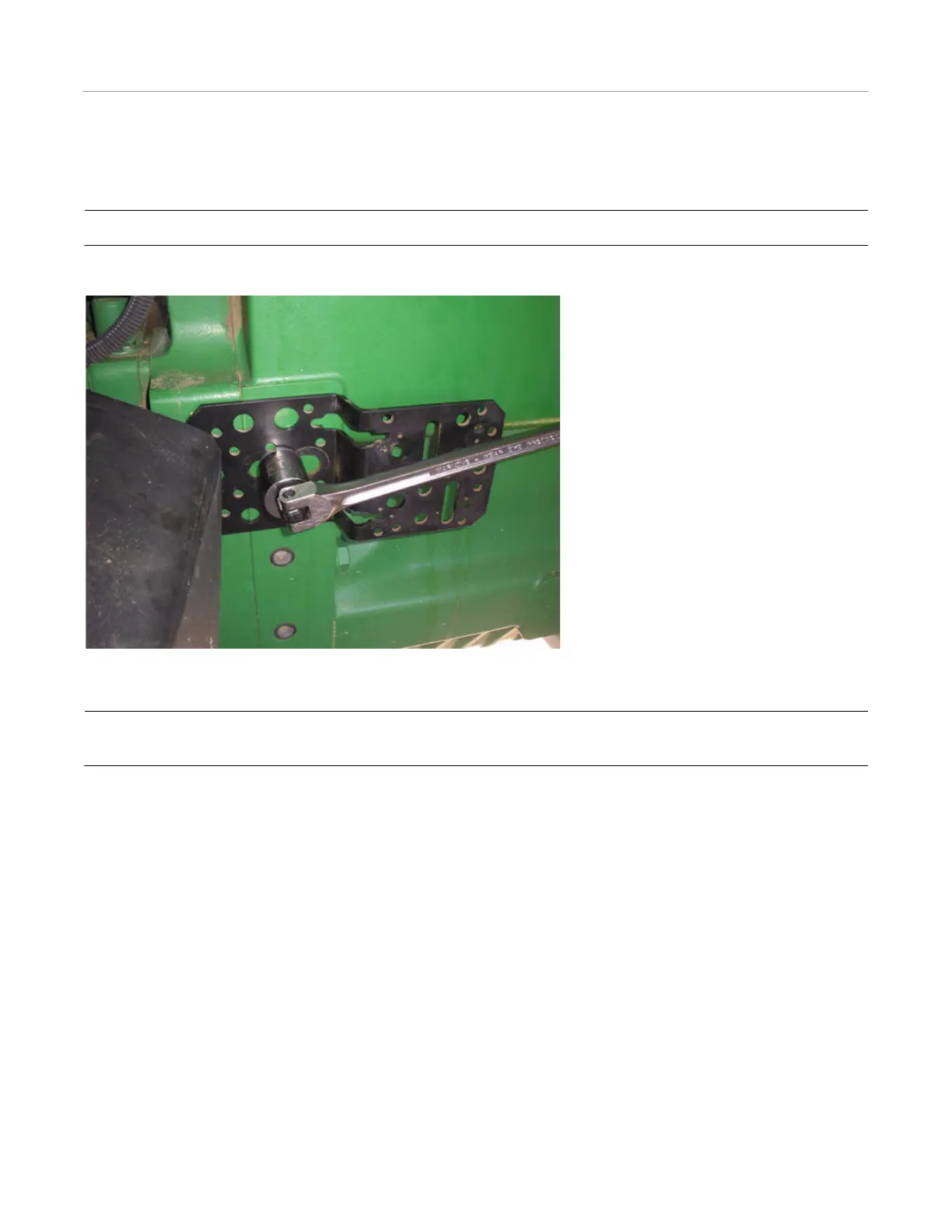

Figure 3-14 Mounting the “S” Bracket
2. Slide the valve onto the bracket. See Figure 3-15.
Note: You may leave two mounting screws already threaded into the valve and they will slide into the “U” slots on the
bracket.
