26 AutoFarm GPS AutoSteer
Steering Valve Bracket Installation

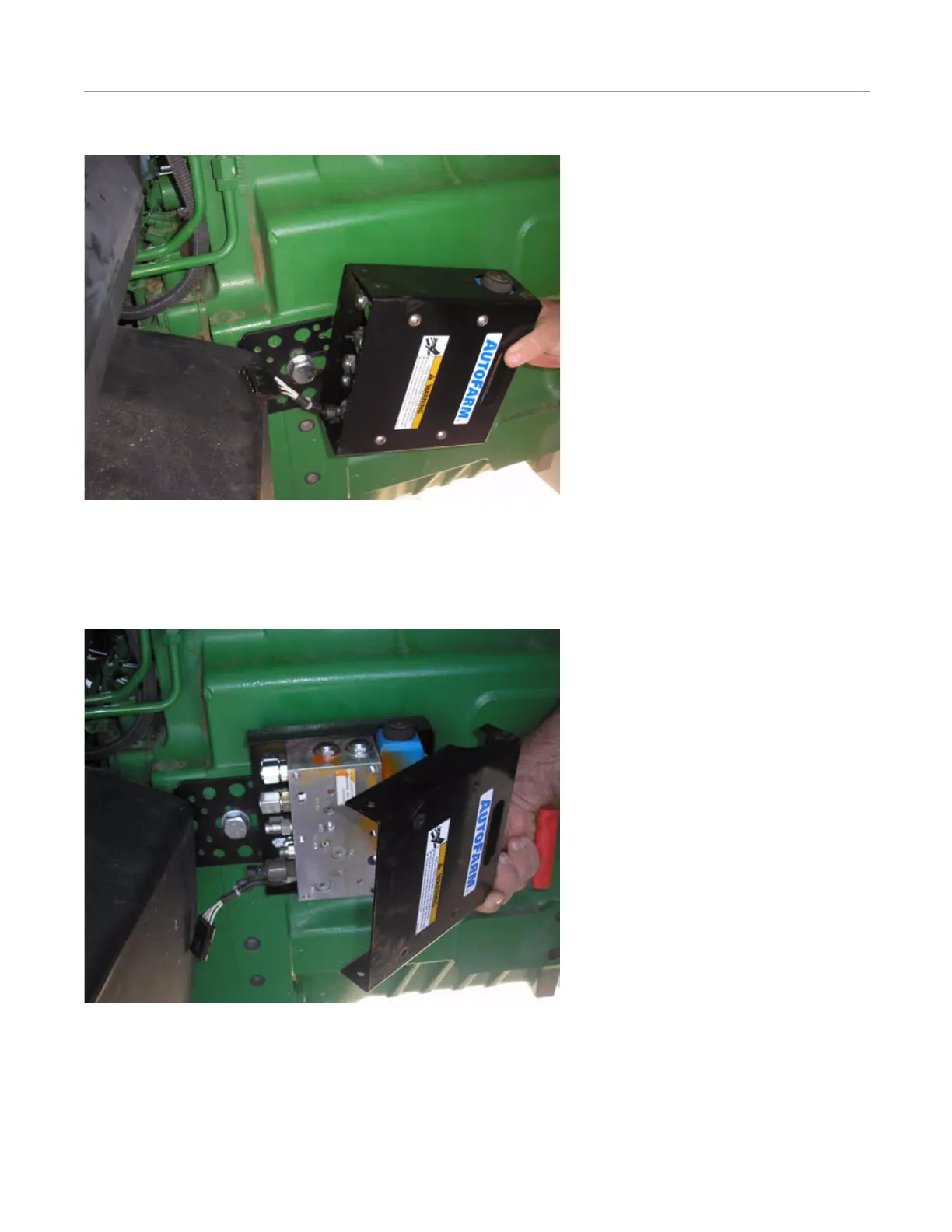

Figure 3-15 Slide Steering Valve On Bracket
3. Insert the two remaining hex screws to secure the valve to the bracket.
4. Tighten the four hex screws using a ratchet wrench.
5. Loosen the four Allen screws and remove the front cover to proceed with the hose installation.
Figure 3-16 Removing Steering Valve Front Cover
