Hardware Installation Guide 75
Roof Module Main Harness Connection
Power Supply Connection
1. Locate the 12V power outlet in the cab. See Figure 8-6.
2. Attach the cable to the cab power outlet. See Figure 8-6.

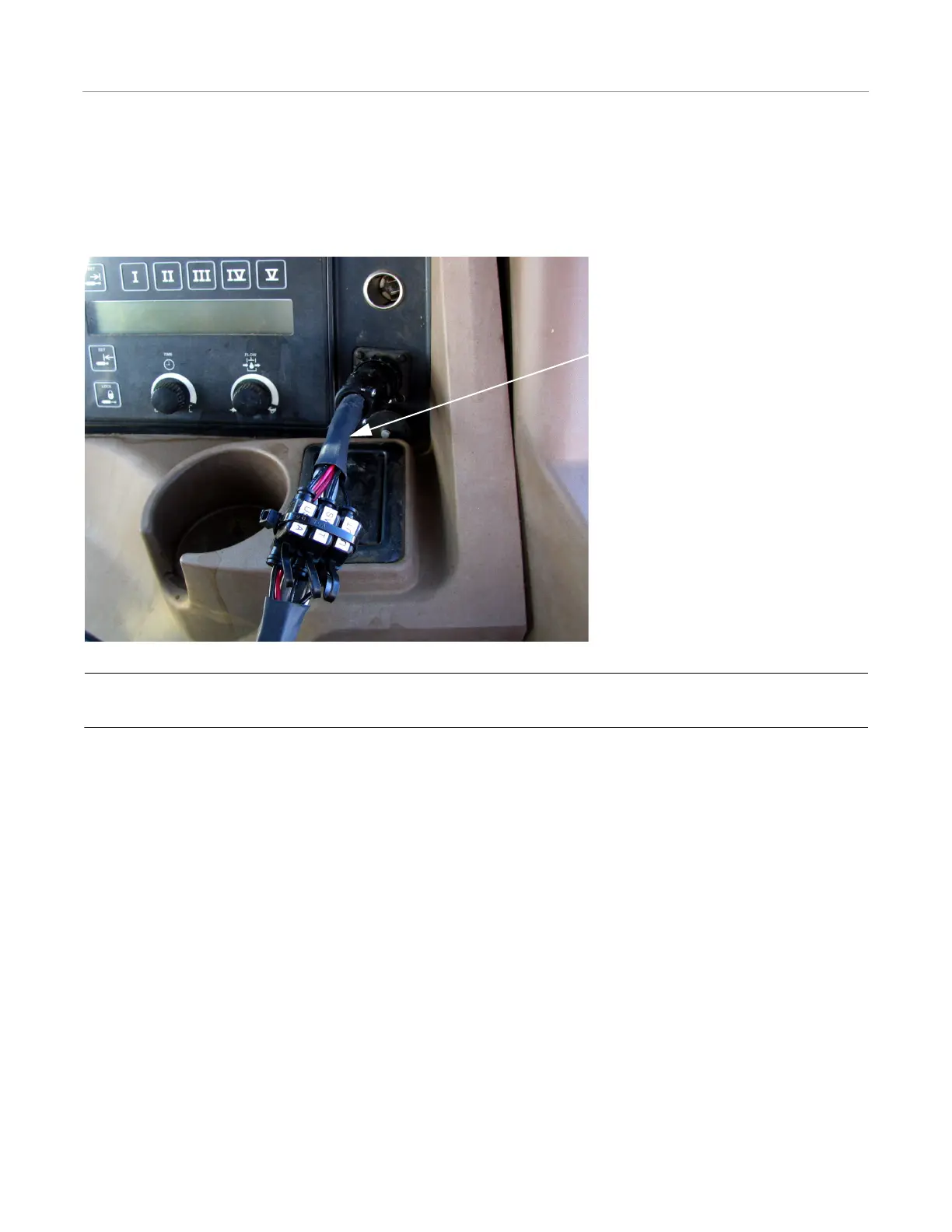

Figure 8-6 Cab 12V Power Outlet
Note: This power cable installation is for vehicles in the United States. European installations require the Power Cable
Adapter P/N: 201-0234-01-A.
Connect the Power Cable Adapter P/N: 201-0234-01-A to the Main Cable Harness P/N: 201-0153-01-C, then plug the Power
Cable Adapter to the cable 12V power outlet connector. See
Figure 8-7.
