40 AutoFarm GPS AutoSteer
Wheel Angle Sensor Installation Guidelines
Wheel Angle Sensor Installation Tasks

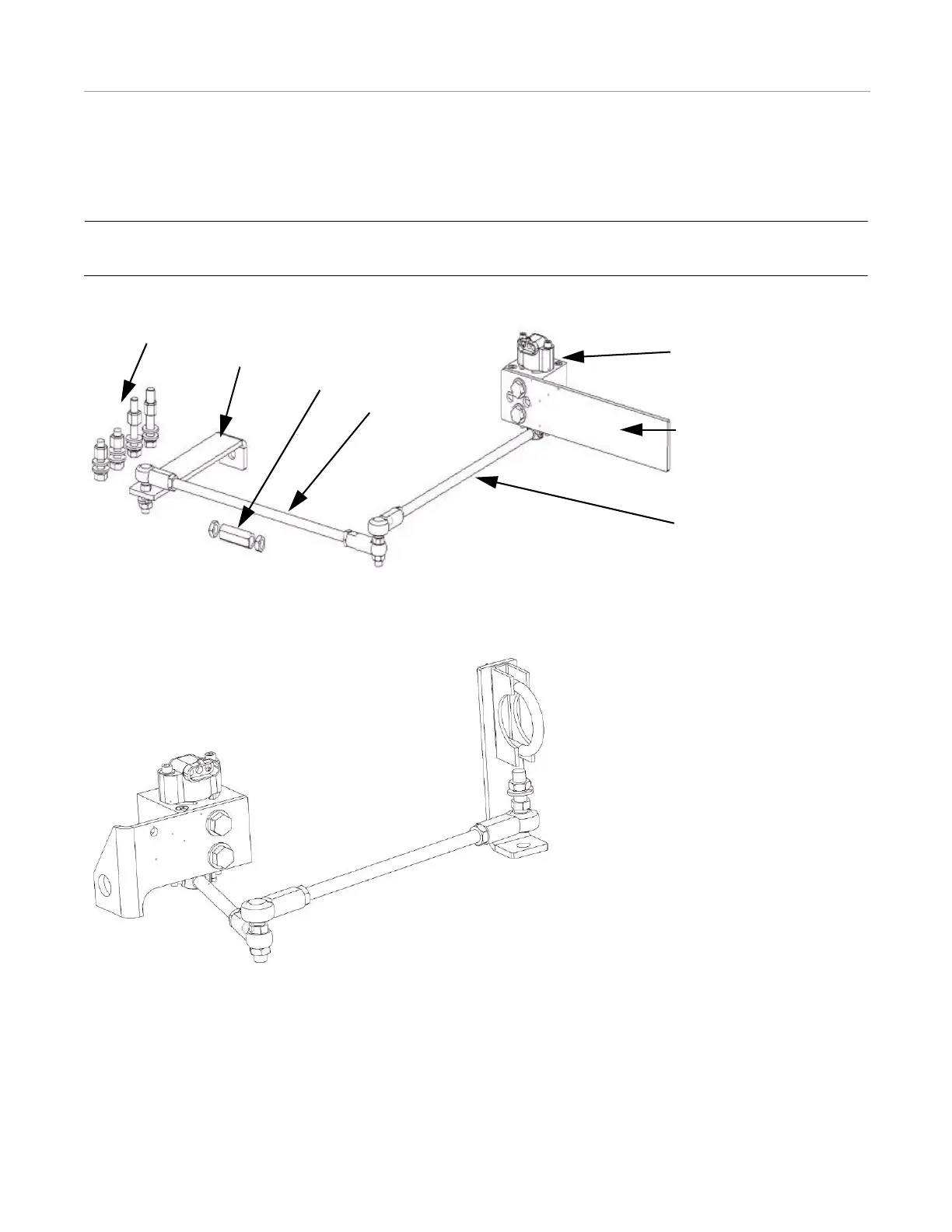

The general wheel angle sensor components are shown in Figure 4-1.
Note: The components may require changes and new mounting holes depending on what model vehicle you are installing
on. Some vehicles require making custom brackets.
Figure 4-1 Wheel Angle Sensor Components
Figure 4-2 through Figure 4-5 show examples of different custom Wheel Angle Sensor brackets made to fit different vehicles.
Figure 4-2 Wheel Angle Sensor Mounting Bracket (example 1)
Linkage Bracket
Extender Coupling Nut
Linkage Rod
Linkage Arm
Wheel Angle
Sensor Bracket
Wheel Angle
Sensor
Mounting Hardware
