42 AutoFarm GPS AutoSteer
Wheel Angle Sensor Installation Guidelines

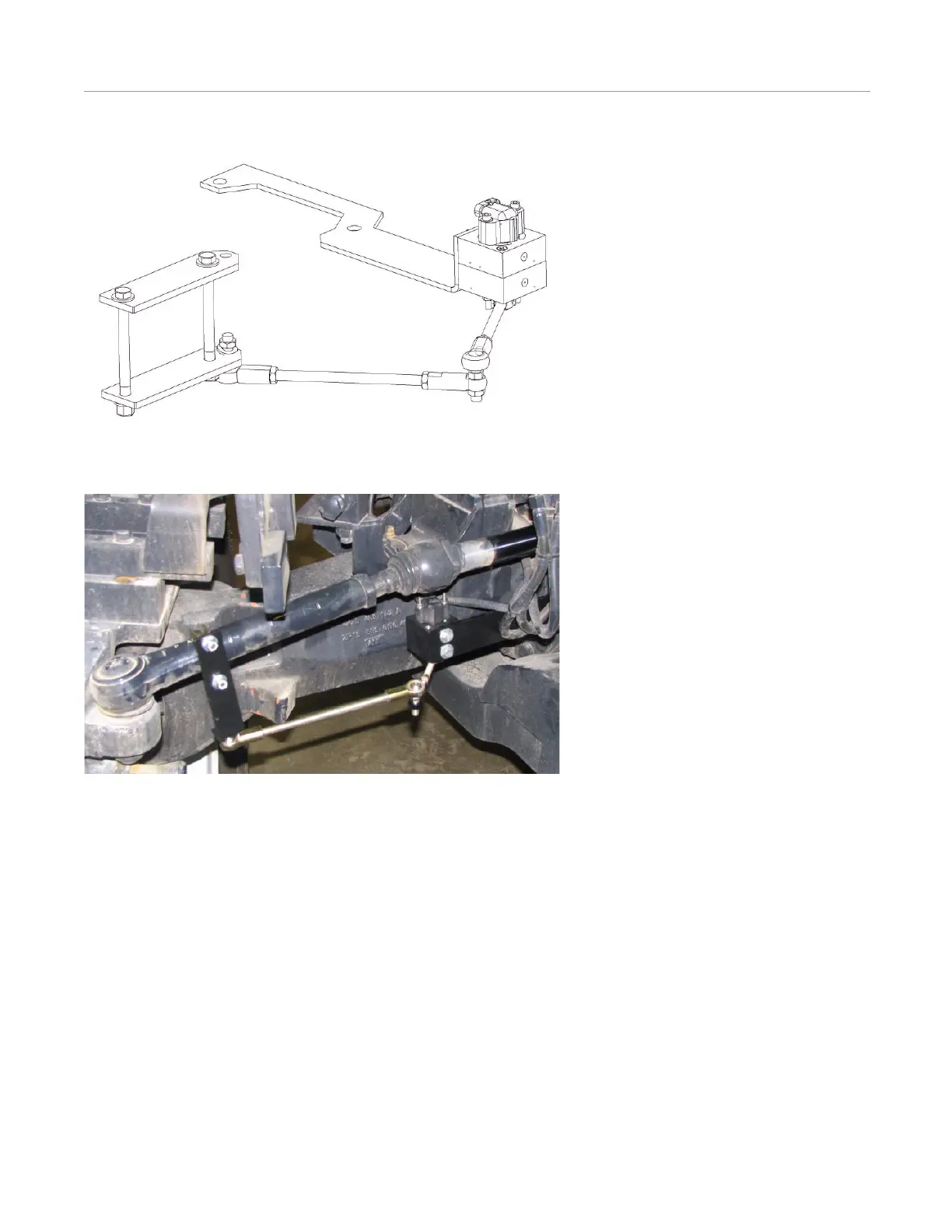

Figure 4-5 Wheel Angle Sensor Mounting Bracket (example 4)
Figure 4-6 through Figure 4-9 show examples of wheel angle sensor installations.
Figure 4-6 Wheel Angle Sensor Installation (example 1)
