Hardware Installation Guide 17

Steering Valve Overview

Valve Covers

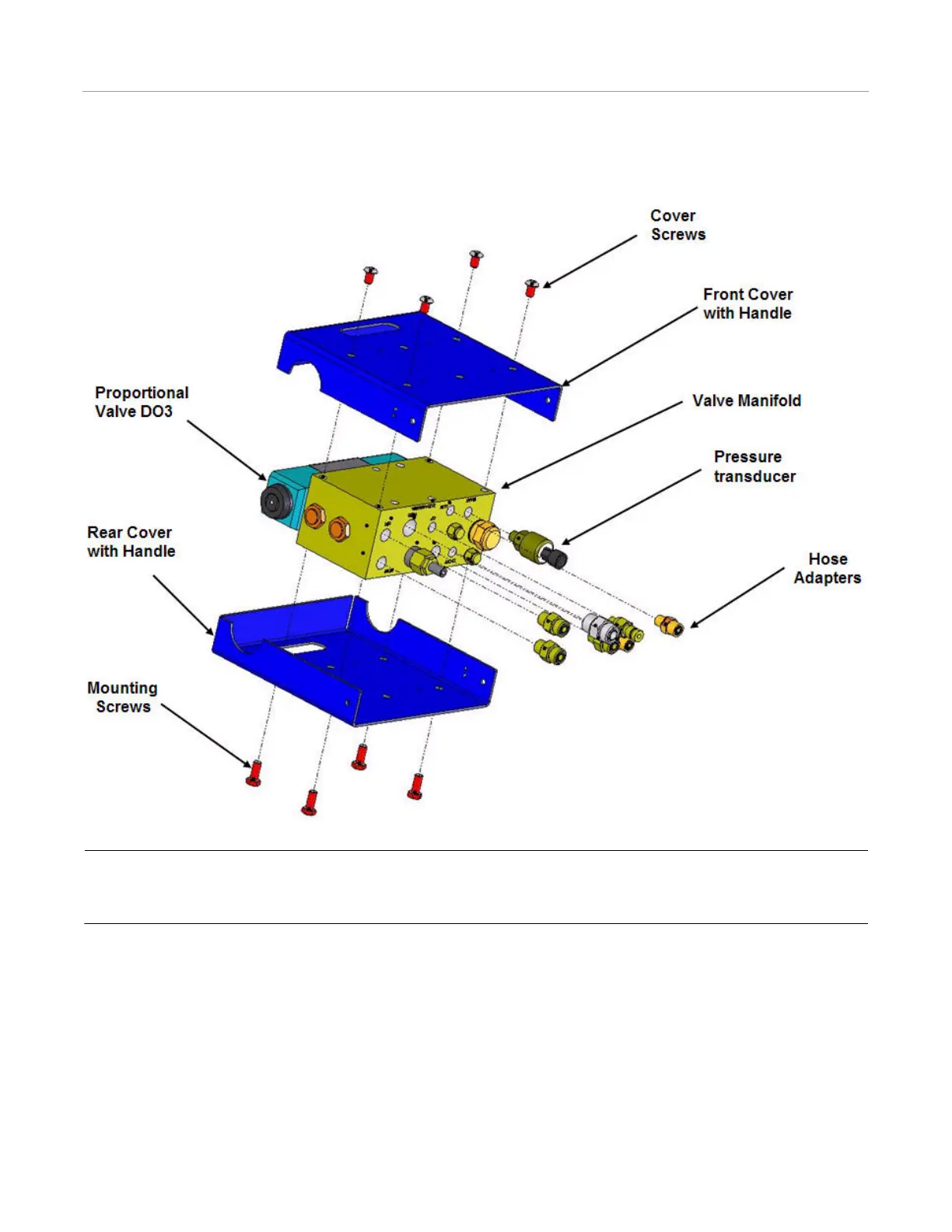

Figure 3-2 Steering Valve Covers

Note: The steering valve rear cover may remain installed on the valve during the installation. The front cover must be

removed during the installation to enable the valve configuration procedure and the hydraulic hose connections. The front

cover can be identified by the AutoFarm logo and Warning labels.
