60 AutoFarm GPS AutoSteer
Roof Module Installation Tasks

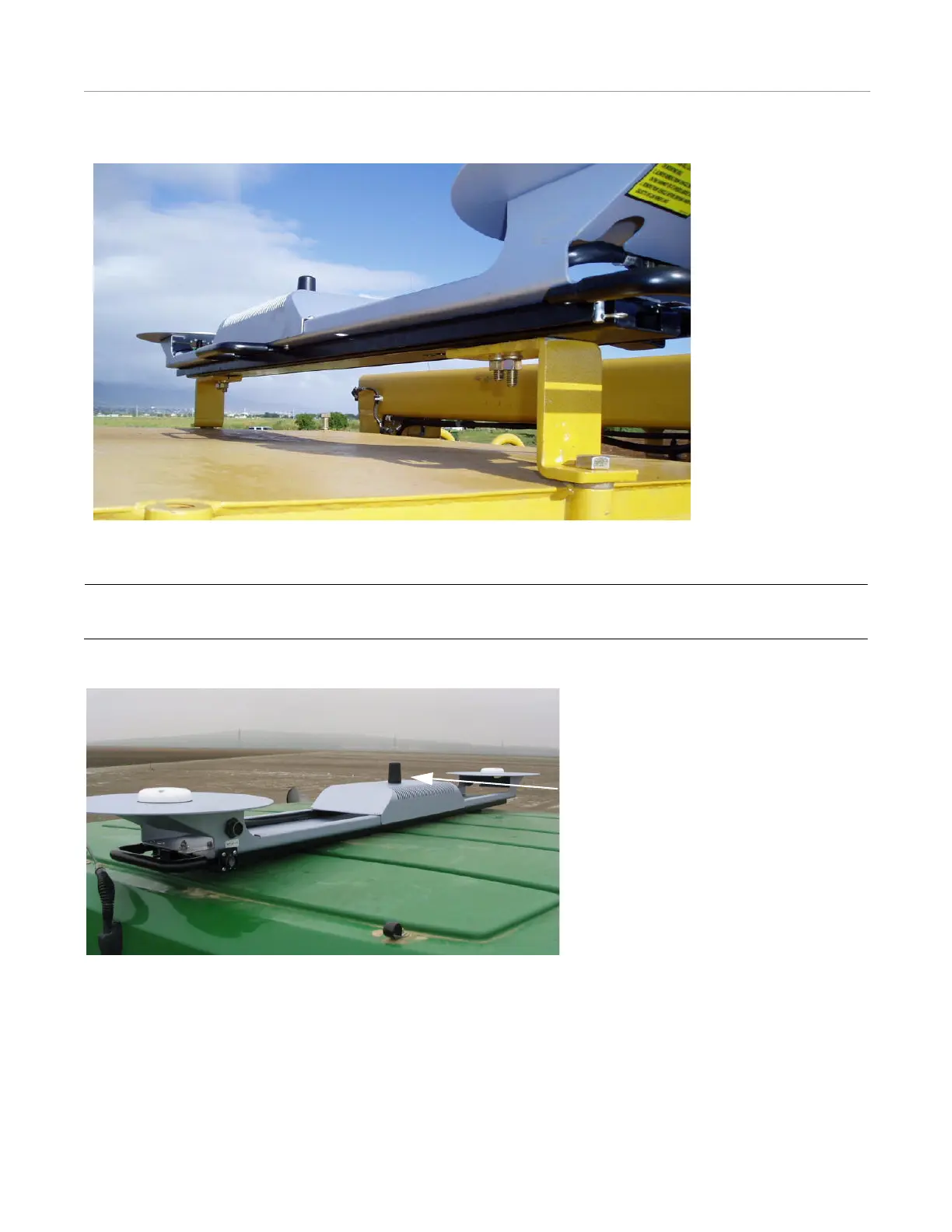

Figure 6-5 Custom Mounting Rail Brackets (example 2)
Attach the radio modem antenna to the AutoFarm roof module.
Note: The antenna should be attached “hand tight.” Do not use any tools to tighten the antenna. Your system may also
contain a longer whip antenna.
Figure 6-6 Radio Modem Antenna Mounted
Slide the Roof Module on the rail until the spring latch locks. See Figure 6-7.
