AUTOFLAME Mk8 MM Installation And Commissioning Guide

10 Fully Metered Combustion Control
Page 150 Mk8 MM Expansion Features Installation and Set-Up Guide 04.09.2016

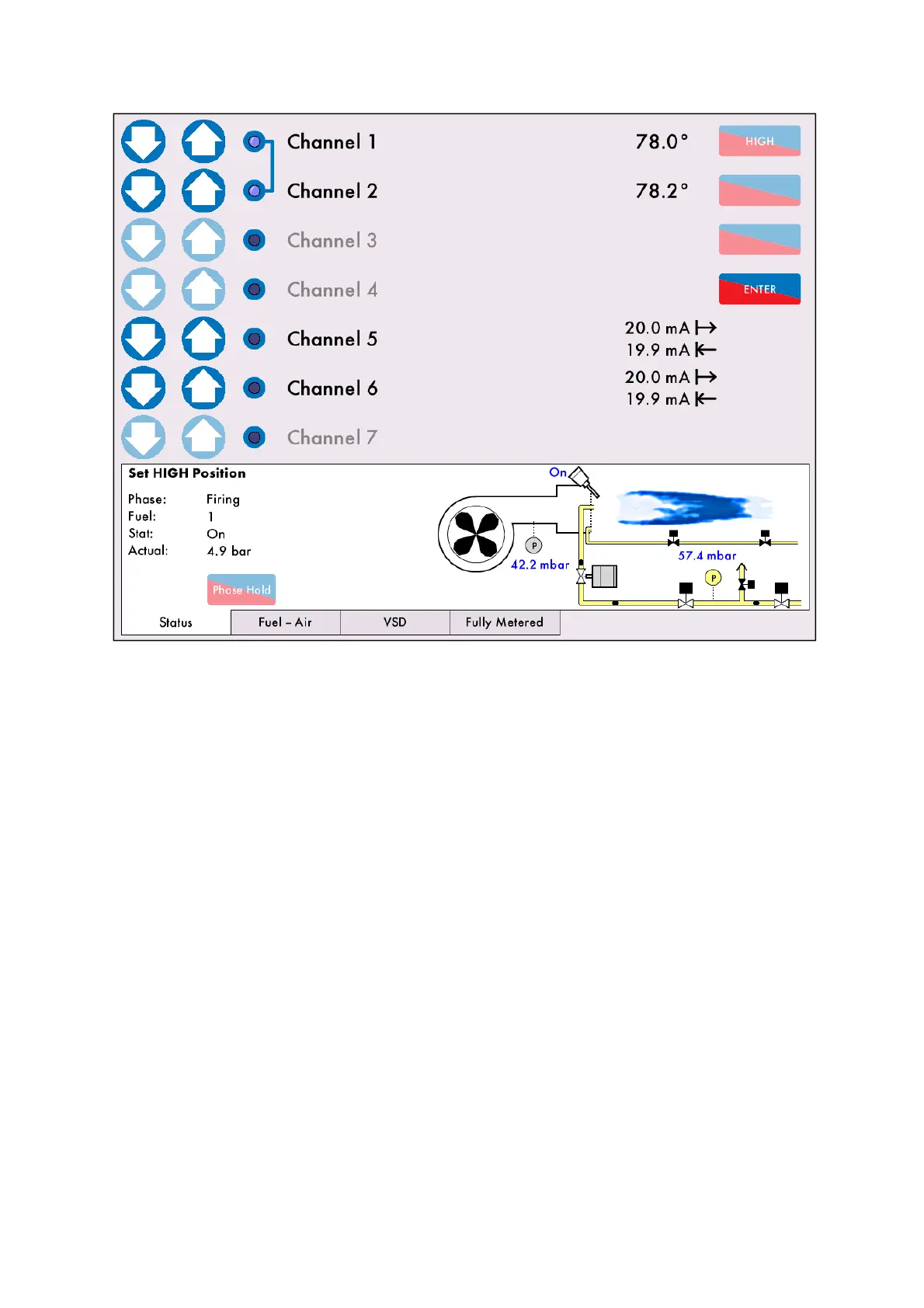

Figure 10.3.3.i Set HIGH Position
For the installation and pre-commissioning checks, please refer to sections 3.2 and 3.3 in the Mk8 MM
Installation and Commissioning Guide.
The same commissioning procedure for the fully metered combustion control system as the standard
system’s servomotors and VSDs. The difference is that the commissioning engineer can see on the
screen the excess air going into the combustion process and can set the servomotors and VSDs
accordingly.
The screen above shows the HIGH position for the servomotors and VSDs being set.
