10 Fully Metered Combustion Control
04.09.2016 Mk8 MM Expansion Features Installation and Set-Up Guide Page 151

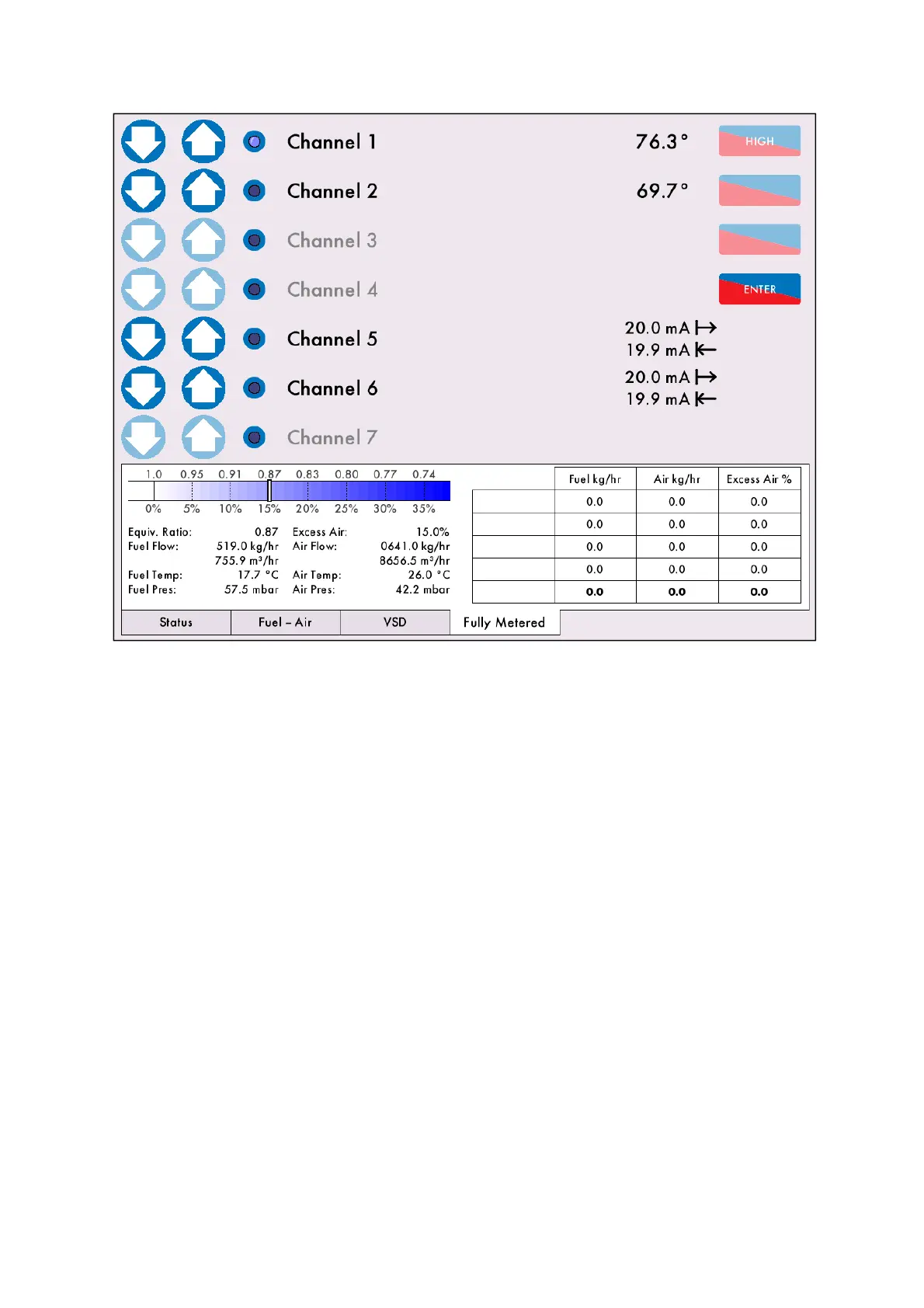

Figure 10.3.3.ii Fully Metered Commission
Pressing on the fully metered tab in the commission screen can show the following, based on how the
system has been set:
 Equivalence ratio 
 Fuel flow rate (mass, volume)
 Fuel temperature
 Fuel pressure
 Excess air 
 Air flow rate (mass, volume)
 Air temperature
 Air pressure
The table will populate mass flow rates of the fuel and air, and the excess air, for each commissioned
point.
The commissioned points can be changed/added/removed in single point change as normal, please
see section 3.7 in the Mk8 Installation and Commissioning Guide for more information. Note, if the
sensors or the flow meters have a fault, then single point change feature is disabled.
