AUTOFLAME Mk8 MM Installation And Commissioning Guide

10 Fully Metered Combustion Control
Page 152 Mk8 MM Expansion Features Installation and Set-Up Guide 04.09.2016

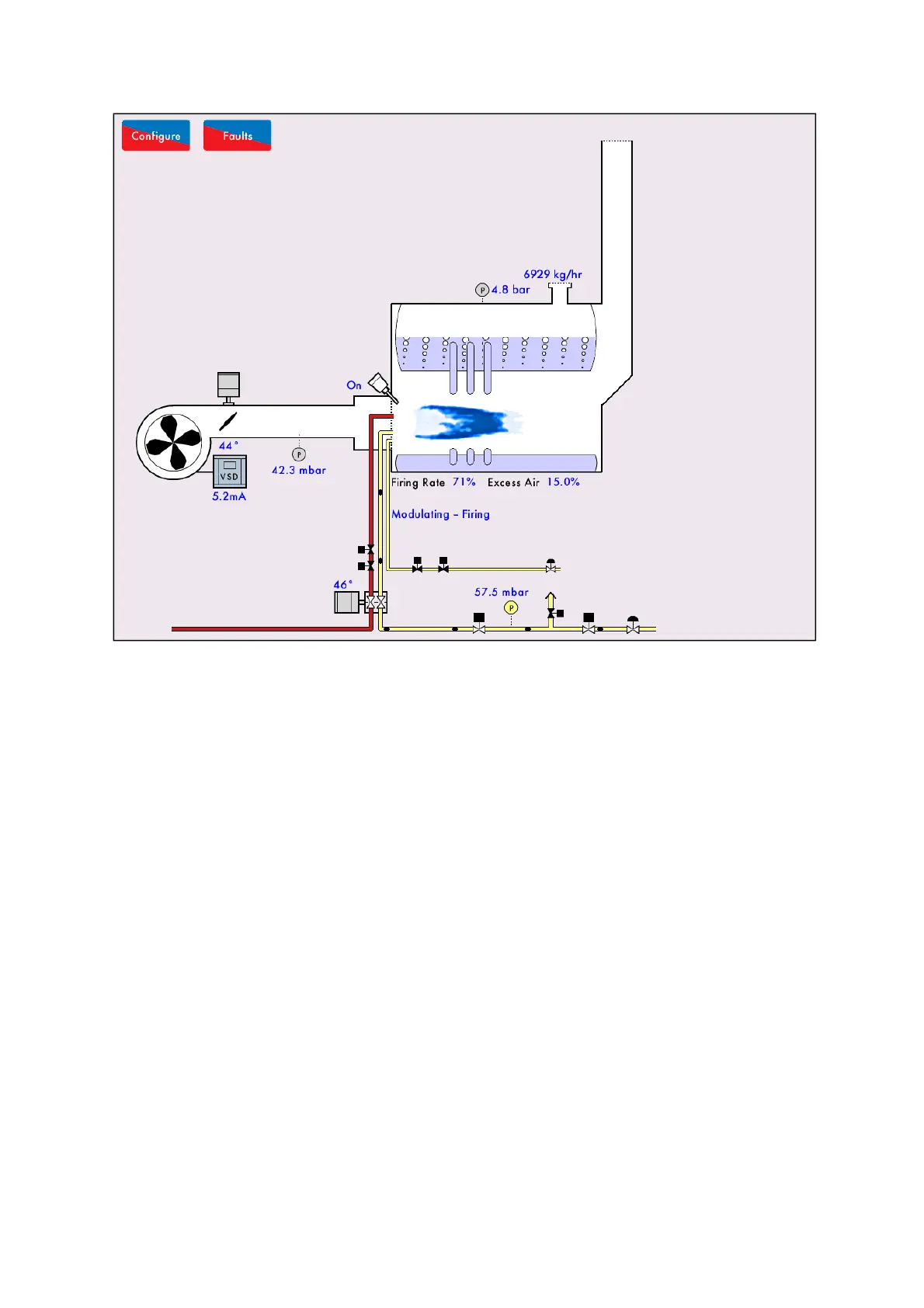

10.3.3.i Home Screen – Excess Air
The home screen will display the current excess air going into the combustion process.
Pressing on the servomotors will show the fuel-air screens with the following information available:
 Current fuel and air mass flow rates
 Current fuel and air volume flow rates
 Current fuel and air temperatures
 Current fuel and air pressures
 Current fuel and air correction % to maintain the fuel-air ratio at that firing rate
 Current equivalence ratio
 Current excess air
 Commissioned excess air
