Mounting
Installation Handbook, AutroSafe Interactive Fire Alarm System, Release 3, 116-P-ASAFE-FA/DE,
Rev. J, 2011-12-06,
Autronica Fire and Security AS

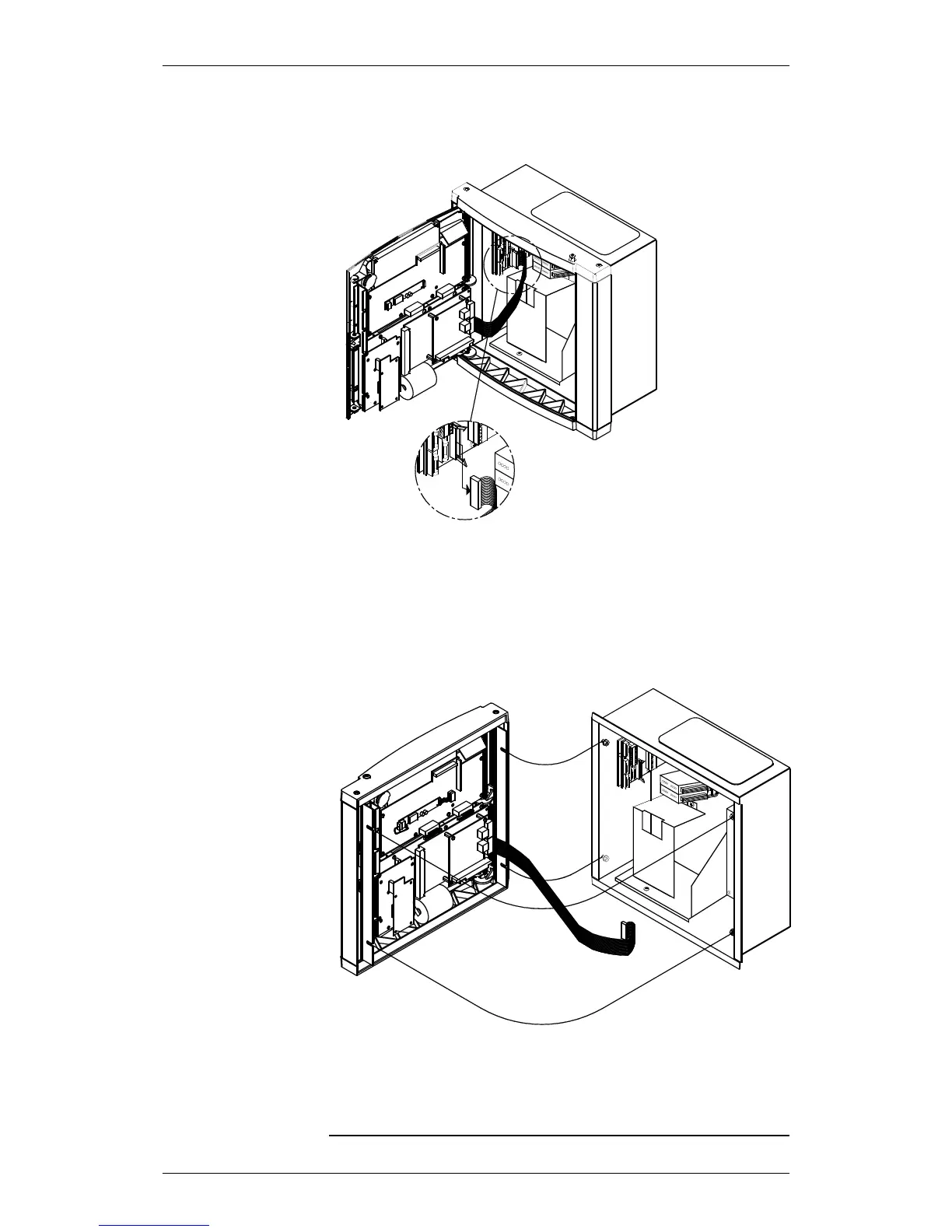

Disconnect the ribbon cable(s) between the front panel and the
cabinet by removing the connector on the BSF-310B board.
Unscrew the 4 wing nuts on the right and left hand side of the
cabinet, then close the front panel, and remove the front panel from
the cabinet .
Ribbon cable
connection
Front Panel
wing nuts
