Autronica Autro Safe BS-310 - Output Module, BSJ-310

Installing I/O Modules
Installation Handbook, AutroSafe Interactive Fire Alarm System, Release 3, 116-P-ASAFE-FA/DE,
Rev. J, 2011-12-06,
Autronica Fire and Security AS

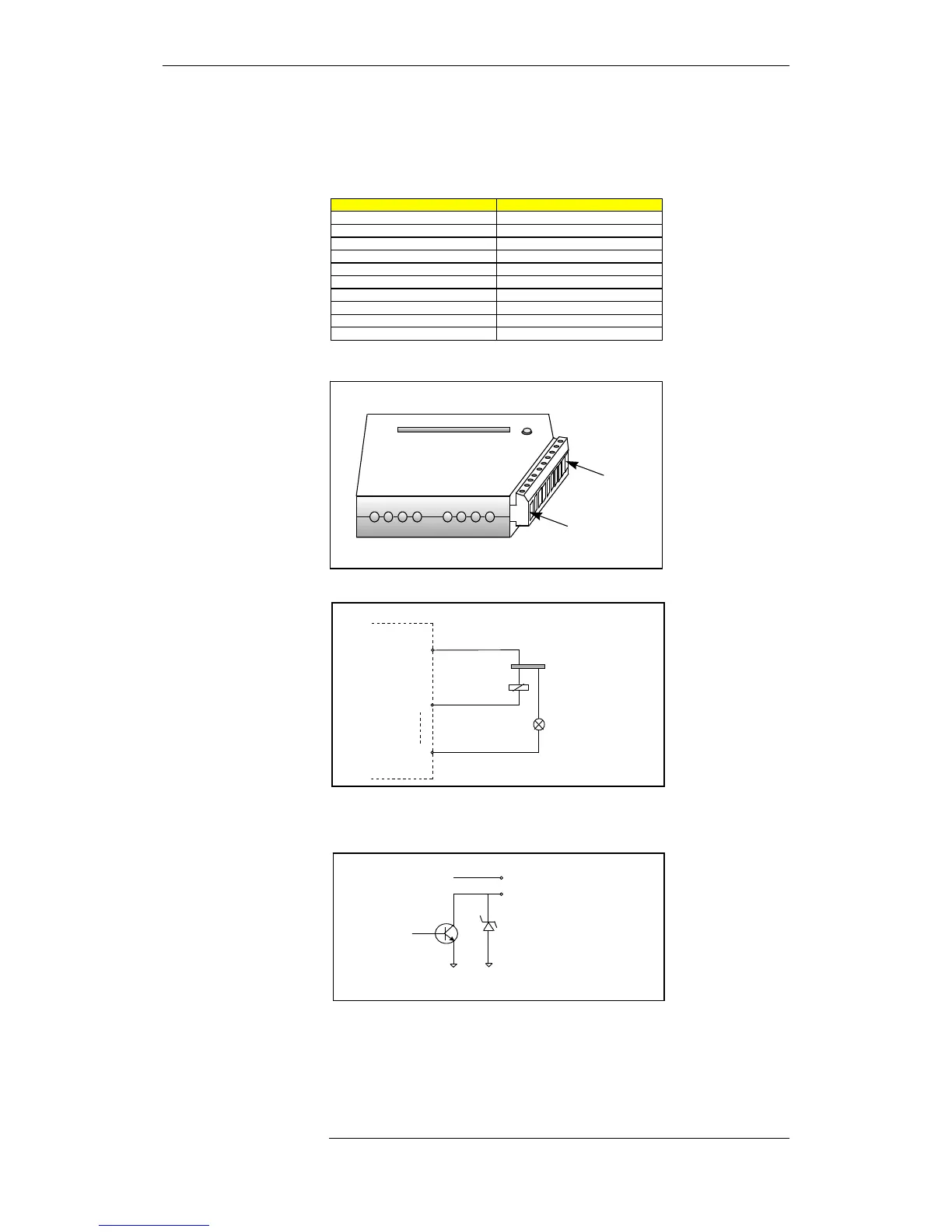

3.9 Output Module, BSJ-310
Screw Terminal no. Signal
1 OC1
2 OC2
3 OC3
4 OC4
5 OC5
6 OC6
7 OC7
8 OC8
9 24 VBAT Output
10 Chassis
Schematics
Screw
terminal 1
Front view when mounted on rail
Screw
terminal 10
Output 1
+24V
External terminal list
Output 8
Maximum 100 mA
Terminal 9
+
Output
0V_BAT
Output 1-8
Output 9
+ 24V
