4.4 Connections to the AUTROLON Booster BSL-325
The BSL-325 module has the following connections:
Screw Terminal no. Signal
1 LON A (polarity independent)
2 LON A (polarity independent)
3 Shield LON A
4 LON B (polarity independent)
5 LON B (polarity independent)
6 Shield LON B
7 Do NOT connect
8 Do NOT connect
9 +24 VDC Supply
10 0 VDC Supply

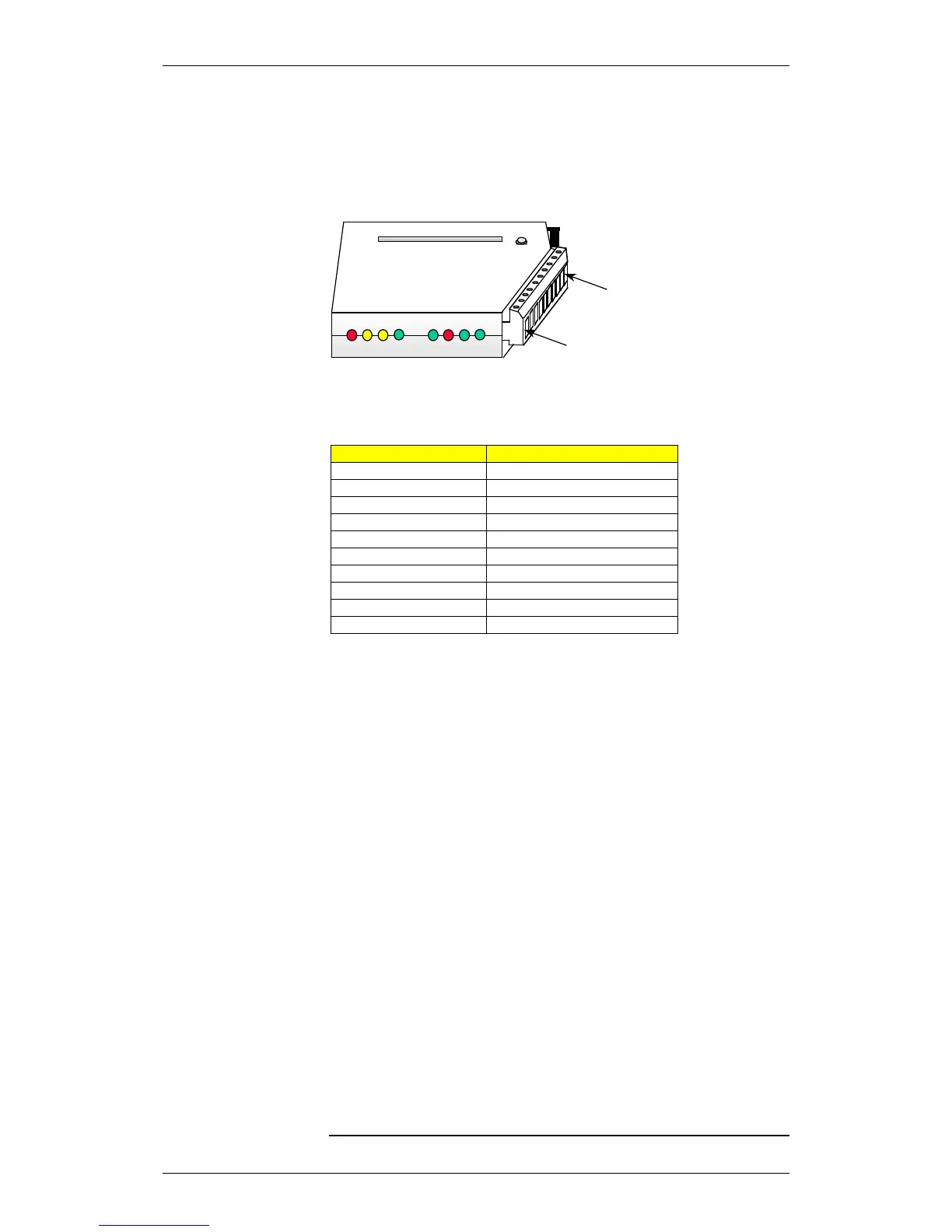

Screw
terminal 1
Front view when mounted on rail
Screw
terminal 10
H8 H7 H6 H5 H4 H3 H2 H1
Indicators
