2.8.2 Connecting the Cable to External Temperature Sensor
When a solution with external battery connection is used, the sensor
must be removed from the Power Supply BSS-103A/02. A 3m cable
must then be connected between the Power Supply BSS-103A/02 in
the Fire Alarm Control Panel / Controller and the external temperature
sensor mounted on a connector in the Battery Cabinet SY-310.

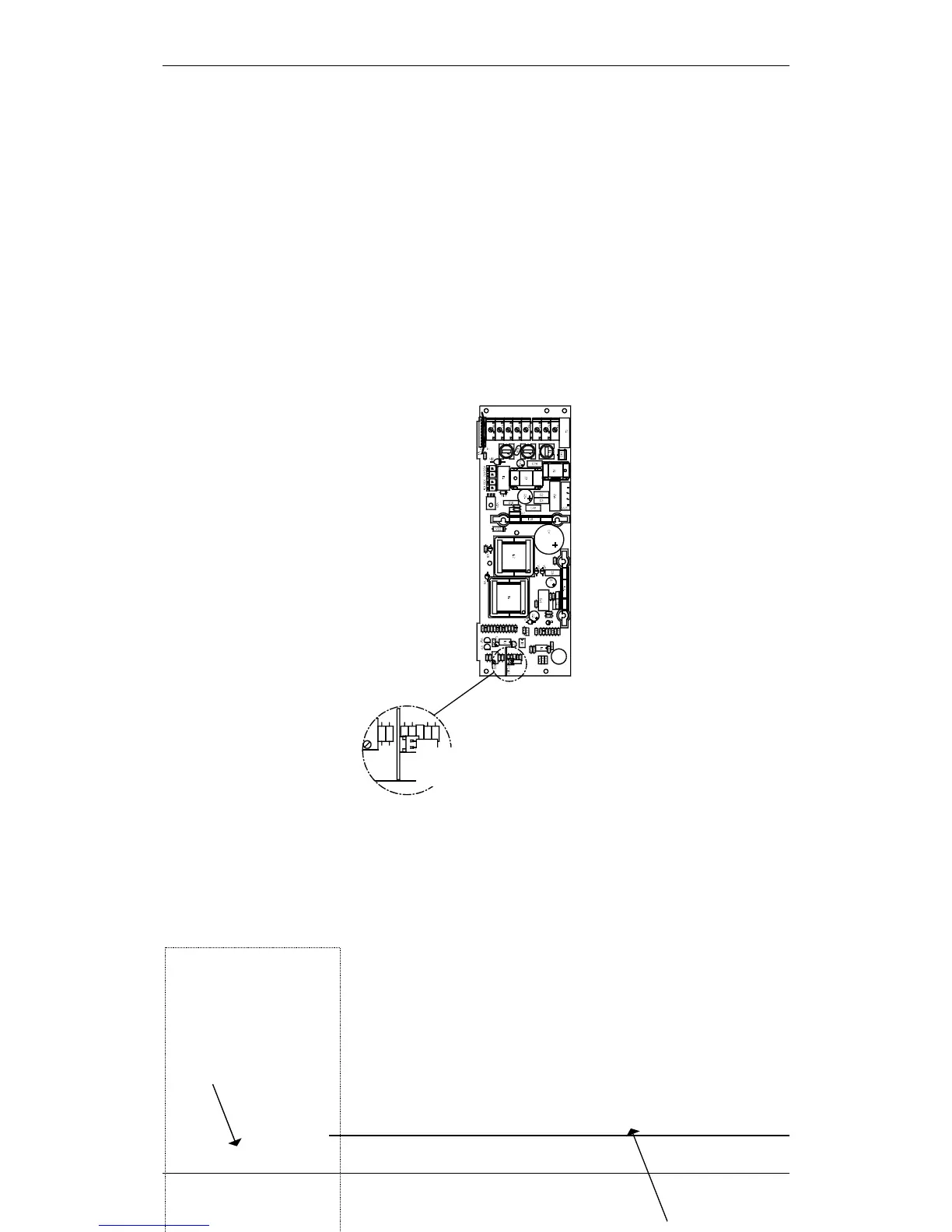

The cable for this purpose is delivered with the battery cabinet. For
information on cable connections, consult the illustrations below.
 Remove the front cover on the Power Supply BSS-103A/02 (in the
Fire Alarm Control Panel / Controller).
 Remove the temperature sensor.
 Connect the cable from the Battery Cabinet to the connector on the
Power Supply BSS-103A/02.
 Reassemble the front cover on the Power Supply BS-103/01.
Battery Cabinet
Power Supply
BSS-103A/02 in
Fire Alarm Control
Panel or Controller
External
Power Supply
BSS-103A/02 in
Fire Alarm
Control Panel
or Controller
Fasten
cable
with
strips
Temperature
Sensor
