Autronica Autro Safe BS-310 - Output Module, Monitored, BSB-310

Installing I/O Modules
Installation Handbook, AutroSafe Interactive Fire Alarm System, Release 3, 116-P-ASAFE-FA/DE,
Rev. J, 2011-12-06,
Autronica Fire and Security AS

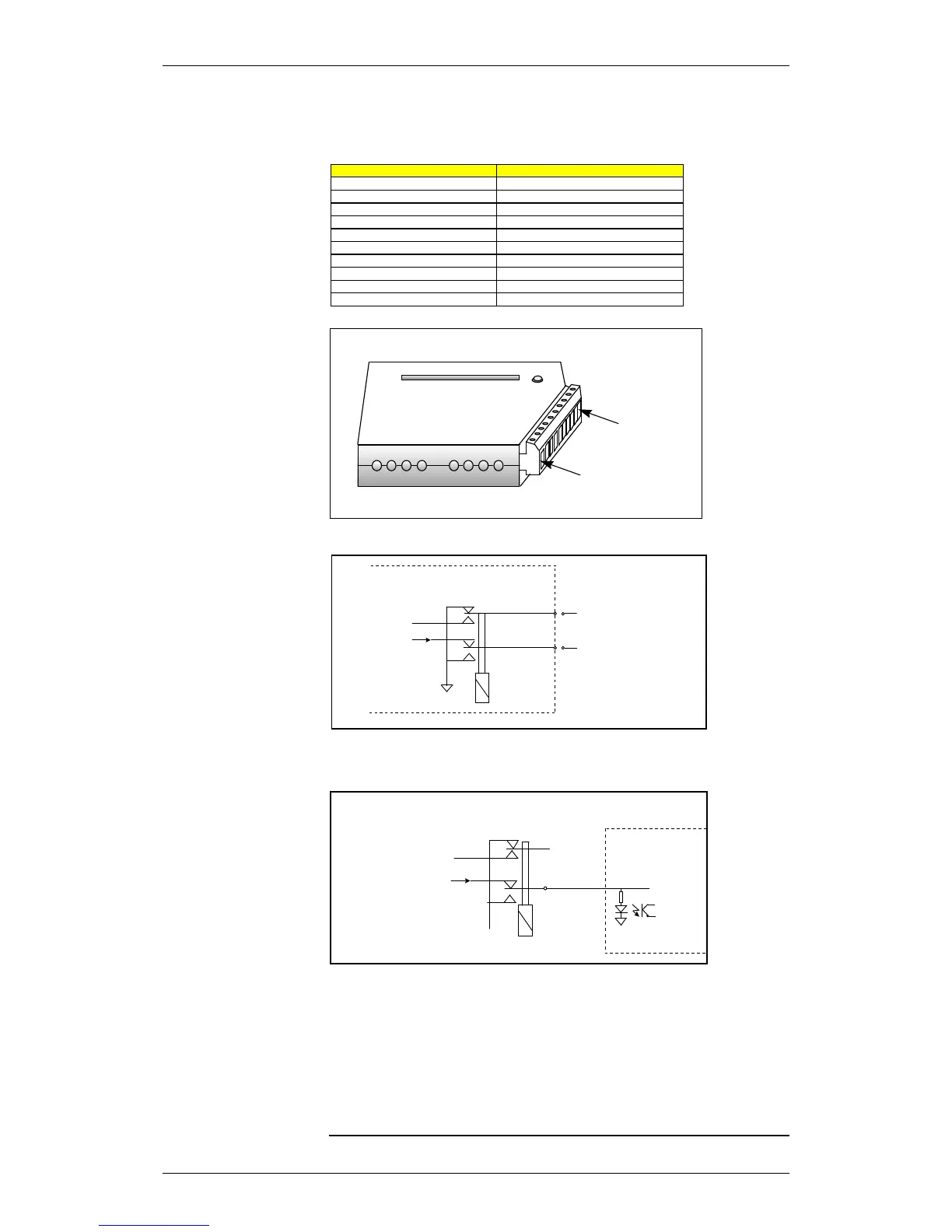

3.8 Output Module, Monitored, BSB-310
Screw Terminal no. Signal
1 Output AK1 - (0V)
2 Output AK1 + (+24V)
3 Output AK2 - (0V)
4 Output AK2 + (+24V)
5 Output AK3 - (0V)
6 Output AK3 + (+24V)
7 Output AK4 - (0V)
8 Output AK4 + (+24V)
9 Input 24 VBAT
10 Input 0 VBAT
Schematics - Monitored Output
Schematics - Fault Warning Routing Equipment (FWRE) Output
Output 4 only.
Screw
terminal 1
Front view when mounted on rail
Screw
terminal 10
24V_BAT
Sense
Terminal point 2, 4, 6, 8
Terminal point 1, 3, 5, 7
+
-
24V_BAT
Sense
8
7
(Not connected)
0V_BAT
FWRE
Ext FW Routing Eq
