1.11.3 Cable Inlets / Outlets
Note that two gland plates are fitted to the cabinet, one with predrilled
holes and one blank. When feeding the cables, use whichever is
appropriate. Entry should always be from top as bottom entry is
restricted, particularly if batteries are fitted.

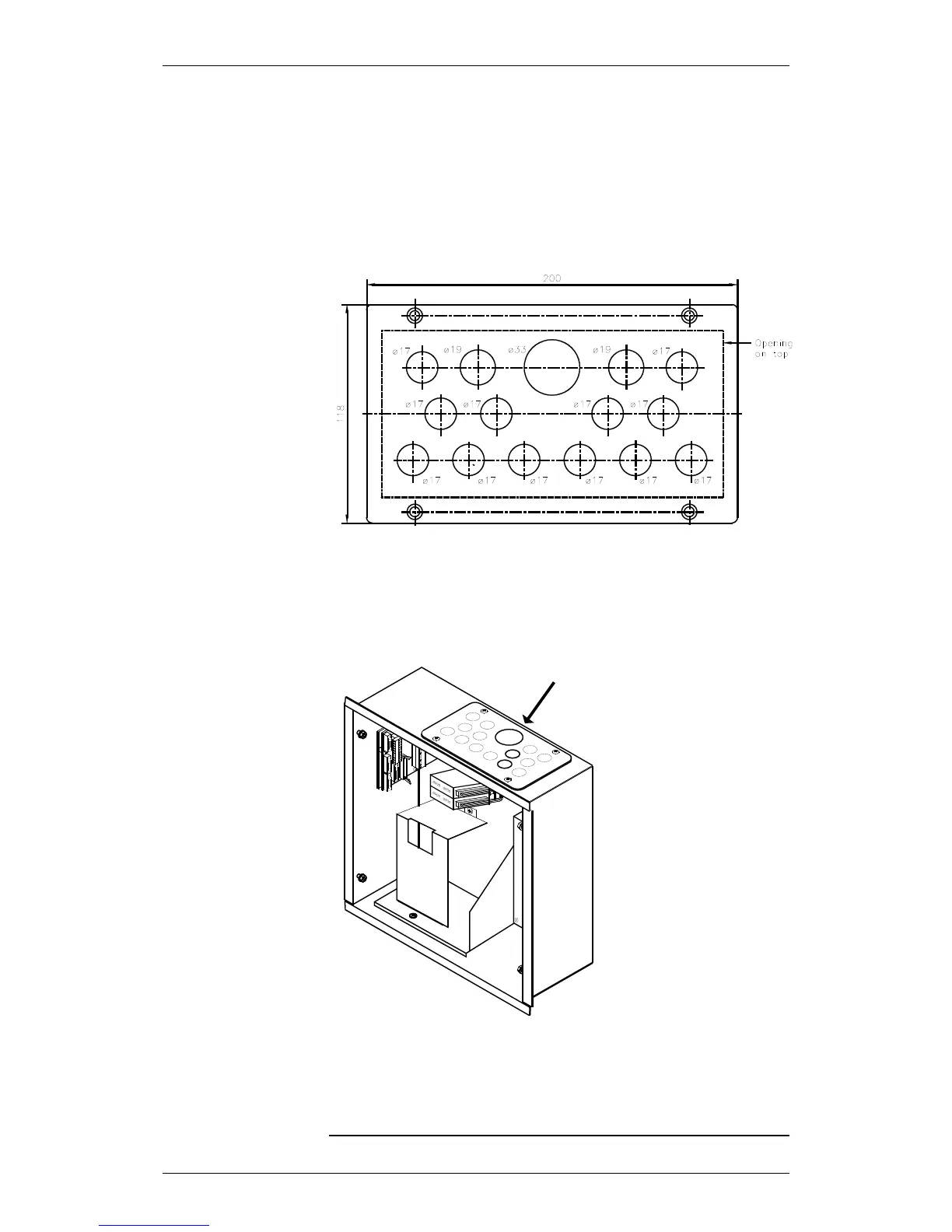

The illustration above shows the positioning and dimensions of the
cable inlets.
Feed all the cables into the cabinet from the top through the
suitable cable inlets.
Make sure that the cables are fastened properly.
1.11.4 Cable Connections
For detailed information on cable connections, refer to chapter 3 in
this handbook.
