5.2 Connections - Overview
The interface of the AutroMaster 5000 requires the use of the Ethernet
Communication Board, EAU-330. The Ethernet Communication
Board, EAU-330 is mounted onto the Processor Board EAC-300
inside the Fire Alarm Control Panel BS-310, or on the top of the LON
Interface Board (EAU-310/B) inside the Fire Alarm Control Panel BS-
320 or Controller BC-320.

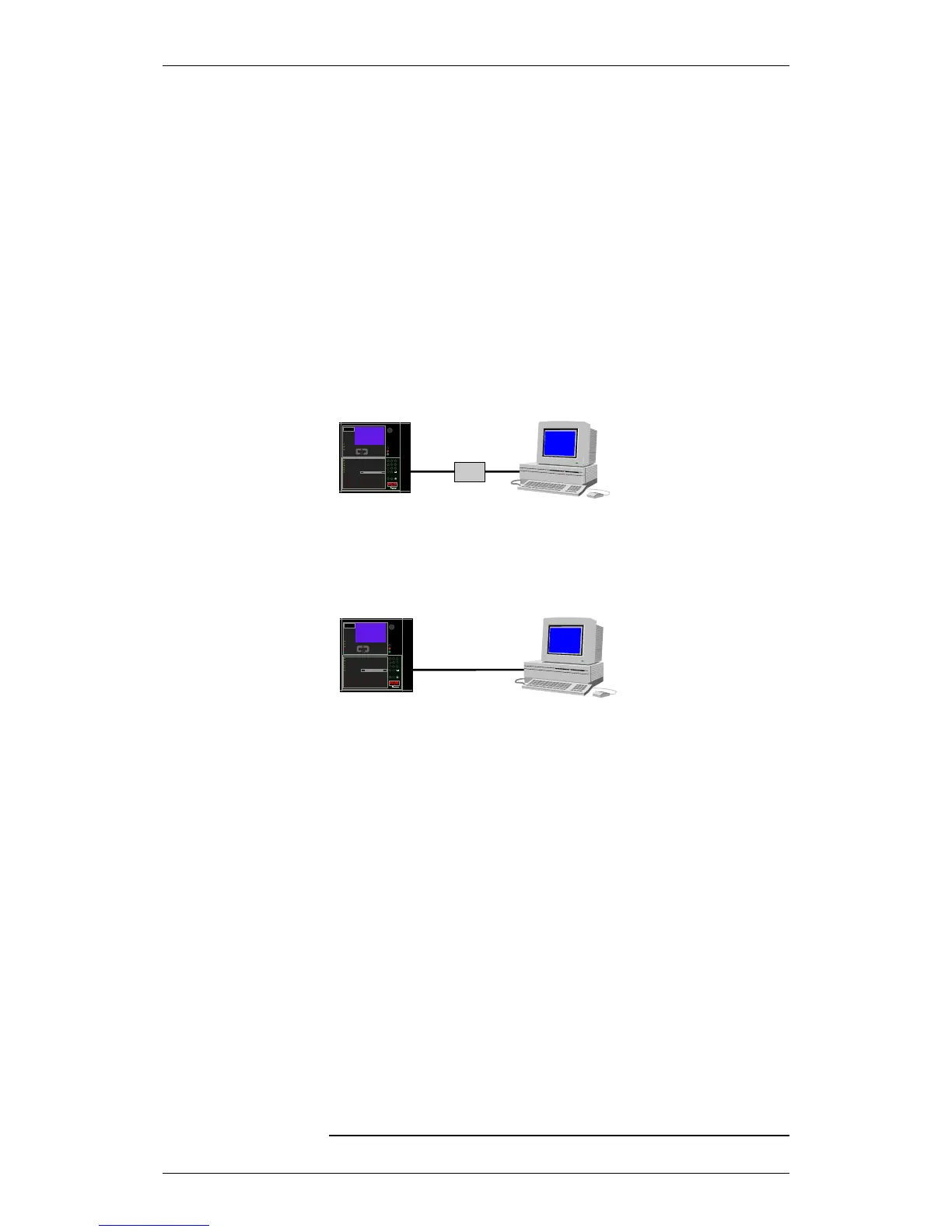

The connection can be done via a HUB, or directly to an AutroMaster.
 Connection to a HUB requires a patchcable with internal one-to-one
pin connection (straight-through).
Power
Fire Brig. Si gnalled
Function Delayed
Function Disabled
0
ALARM
i
C
987
6
54
3
21
Mute Panel
Silence Al arms
Reset
More Events
Testing
Fire Brig. Disabled
System Fault
Alarms D isabl ed
Fire Brig. Fault
Fault


Alarms Fault
AUTROSAFE
SelfVerify
19:23
HUB
Patchcable with internal
one-to-one connection.
 Connection directly to an AutroMaster requires a patchcable with
internal crossing of the TX and RX signals (crossover cable). A
convenient way to accomplish this is to do the crossing in a junction
box.
Power
Fire Brig. Signalled
Function Delayed
Functio n Di sabl ed
0
ALARM
i
C
987
6
54
3
21
Mute Panel
Silence Al arms
Reset
More Events
Testing
Fire Brig. Disabled
System Fault
Alarms Di sa bl ed
Fire Brig. Fault
Fault


Alarms Fault
AUTROSAFE
SelfVerify
19:23
Patchcable with internal
crossing of the TX and
RX signals.
